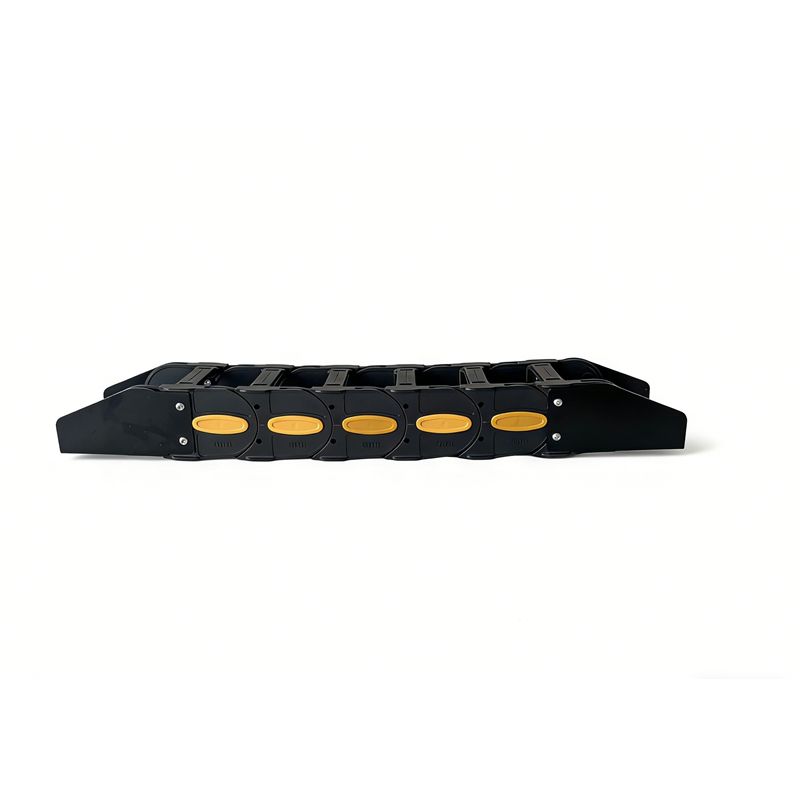

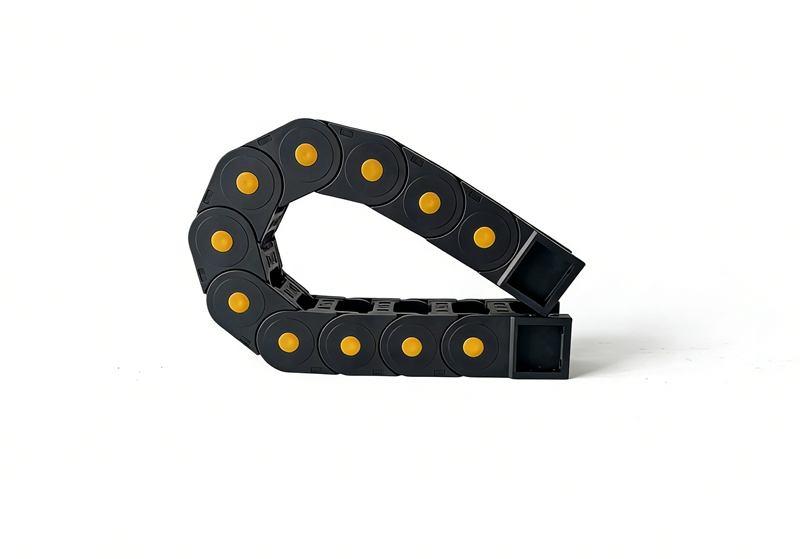

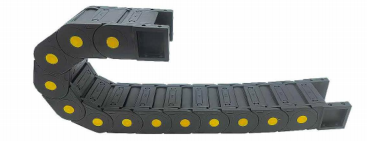

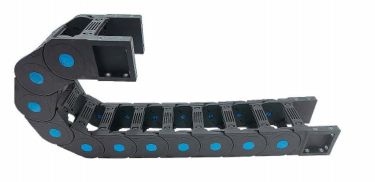

Large Drag Chain 65 – Wide Nylon Cable Carrier for Gantry Robots

Salient features include less weight, low noise, non-conductive, easy handing, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

To specify a Moulded Plastic Cable Drag Chain, we require the following information:

1) Length of travel

2) Number and outside diameter of the cables/hoses to be installed

3) Required minimum bending radius of cables or hoses

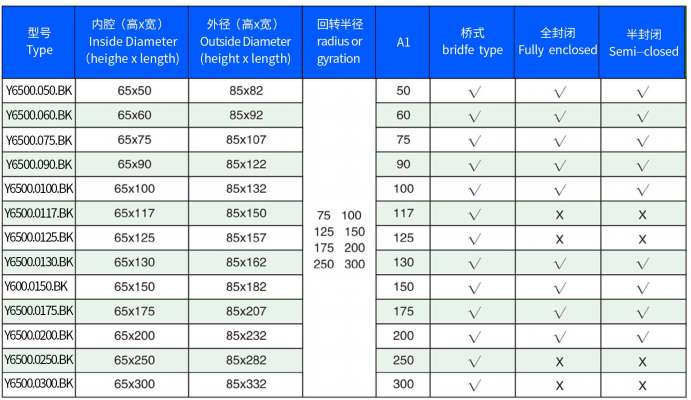

Model Table

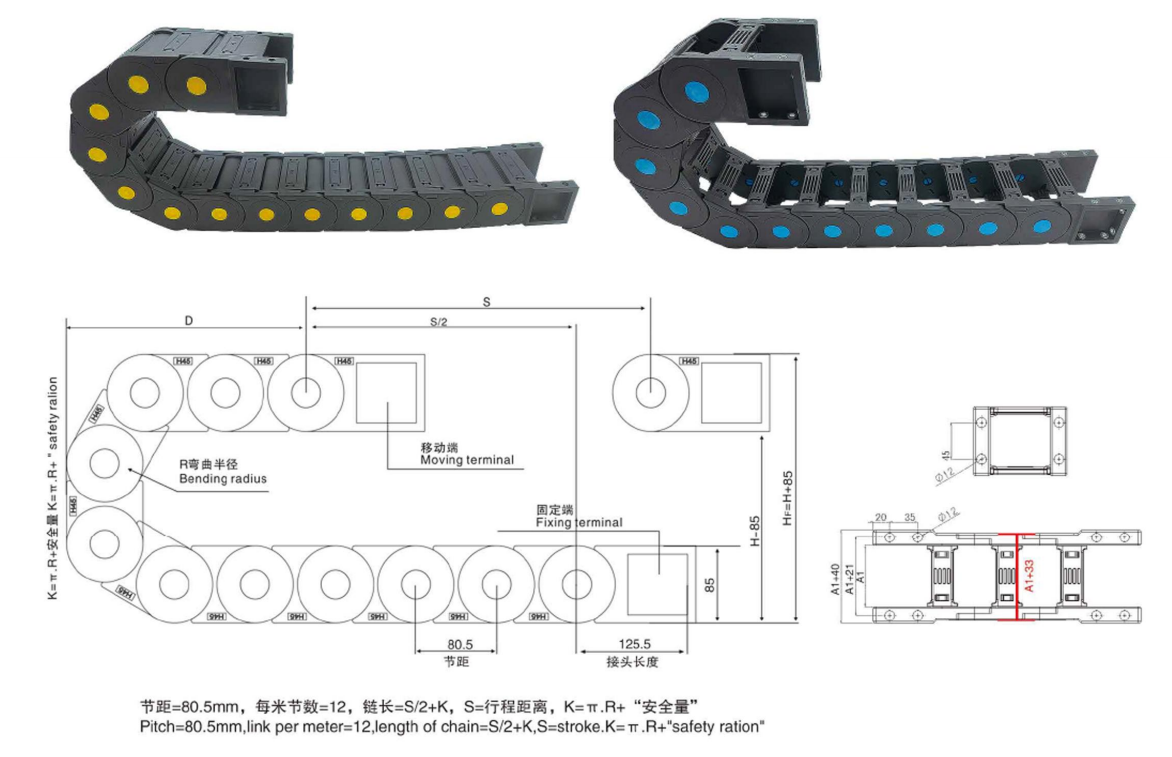

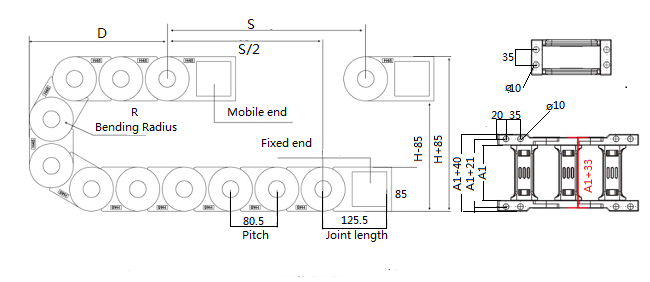

Structure Diagram

Application

Large-scale CNC Gantry Machining Center: Routes high-power spindle cables, multi-axis linear encoder cables, and cutting fluid lines.

High-power Laser Cutting Machine: Protects laser fiber optic cables, auxiliary gas lines, and dust extraction lines.

5-Axis Machining Center: Involves complex multi-axis movements, requiring energy chains that are flexible and torsion-resistant.

Automatic Painting Line Conveyor Chain: Accompanies paint spray trolleys moving along a track, routing paint hoses, pneumatic lines, and control cables.

Automobile Final Assembly Line: Centralized management of power supply and pneumatic lines located on accompanying tooling pallets.
