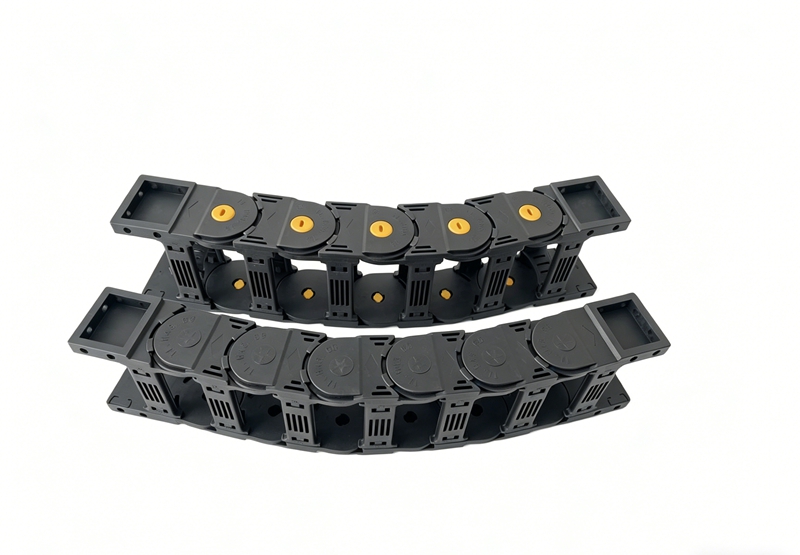

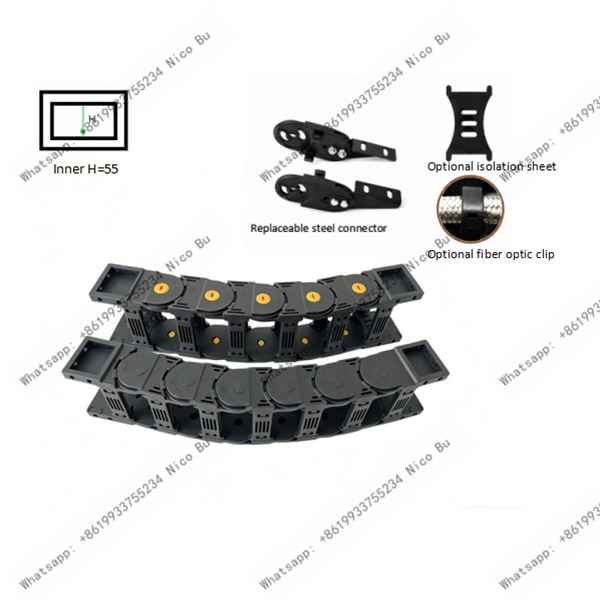

Heavy-Duty Nylon Drag Chain 55 – Heavy Industrial Cable Carrier

Heavy-Duty Nylon Drag Chain 55 – Heavy Industrial Cable Carrier

Product ID : YDL55

Product Tags : Reinforced Nylon

Product Attributes :

Material: PA66

Specification:55*50, 55*60, 55*75, 55*90, 55*100, 55*117, 55*125, 55*130, 55*150, 55*175, 55*200, 55*250, 55*300

Color: Black (Custom colors available upon request)

Applicable Scenarios: Long-stroke reciprocating motion, heavy-load cable routing, and protection of hydraulic hoses and cables for heavy-duty equipment.

Structure: Bridge-type / Fully Enclosed

Product Description

Nylon drag chain designed for heavy-duty conditions, with sturdy structure and increased wall thickness, strong load capacity, able to accommodate large-diameter cables and hoses. It moves smoothly without jamming, has much longer service life than standard chains and lower maintenance cost.

Applications

Heavy-Duty Gantry Machining Centers (Large-Scale): Features an ultra-long X-axis travel (6–15 meters) and accommodates high-power spindle cables and hydraulic lines.

Continuous Ship Unloaders (Port Operations): Energy chains for the trolley's travel mechanism (moving along rails), requiring high corrosion resistance and a long service life.

Mining Screening Equipment: Energy chains for vibrating screen feeder trolleys, designed to withstand vibration loads and dusty environments.

Large-Scale Automated Storage and Retrieval Systems (Stacker Cranes): Involves both horizontal travel and vertical lifting; requires energy chains that are torsion-resistant and maintenance-free.

Ship Section Welding Robots (Rail-Mounted): Designed for outdoor operation, offering resistance to salt spray and UV exposure, and providing superior corrosion resistance compared to steel alternatives.

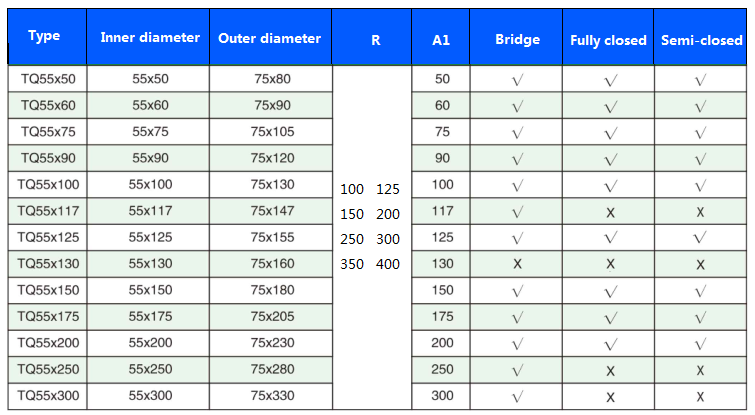

Type	Inside Diameter	Outside Diameter	Radius or gyration	A1	Bridge tipe	Fully type	Semi-closed
TQ55.50	*5550**	*7580**	100 125 150 200 250 300 350 400	50	√	√	√
TQ55.60	*5560**	*7590**		60	√	√	√
TQ55.75	*5575**	*75105**		75	√	√	√
TQ55.90	*5590**	*75120**		90	√	√	√
TQ55.100	*55100**	*75130**		100	√	√	√
TQ55.117	*55117**	*75147**		117	√	√	√
TQ55.125	*55125**	*75155**		125	√	√	√
TQ55.130	*55130**	*75160**		130	×	×	×
TQ55.150	*55150**	*75180**		150	√	√	√
TQ55.175	*55175**	*75205**		175	√	√	√
TQ55.200	*55200**	*75230**		200	√	√	√
TQ55.250	*55250**	*75280**		250	√	×	×
TQ55.300	*55300**	*75330**		300	√	×	×
