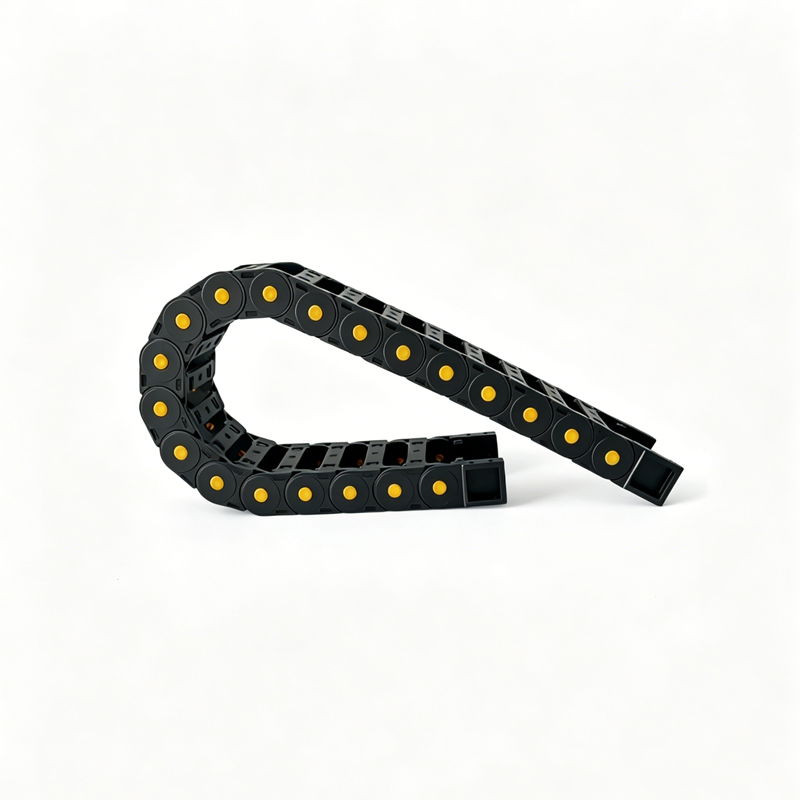

Small-Sized Drag Chain 20 – Compact Nylon Cable Carrier for CNC Routers

Cable Drag Chain - The hoses & electrical cables connected to machinery parts in motion may get damaged as direct tension is applied on them; instead the use of Drag Chain eliminates this problem as the tension is applied on Drag Chain thus keeping the Cables & hoses intact & facilitating smooth movement.

It is one of the most widely used models among small-scale industrial equipment. Constructed from reinforced PA66 nylon, it features excellent overall rigidity and is highly resistant to deformation. It utilizes a bridge-type open structure.

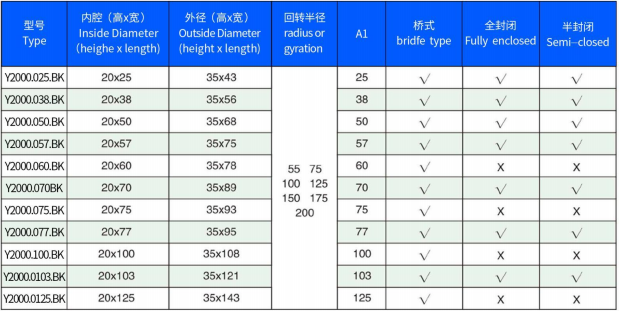

Model Table

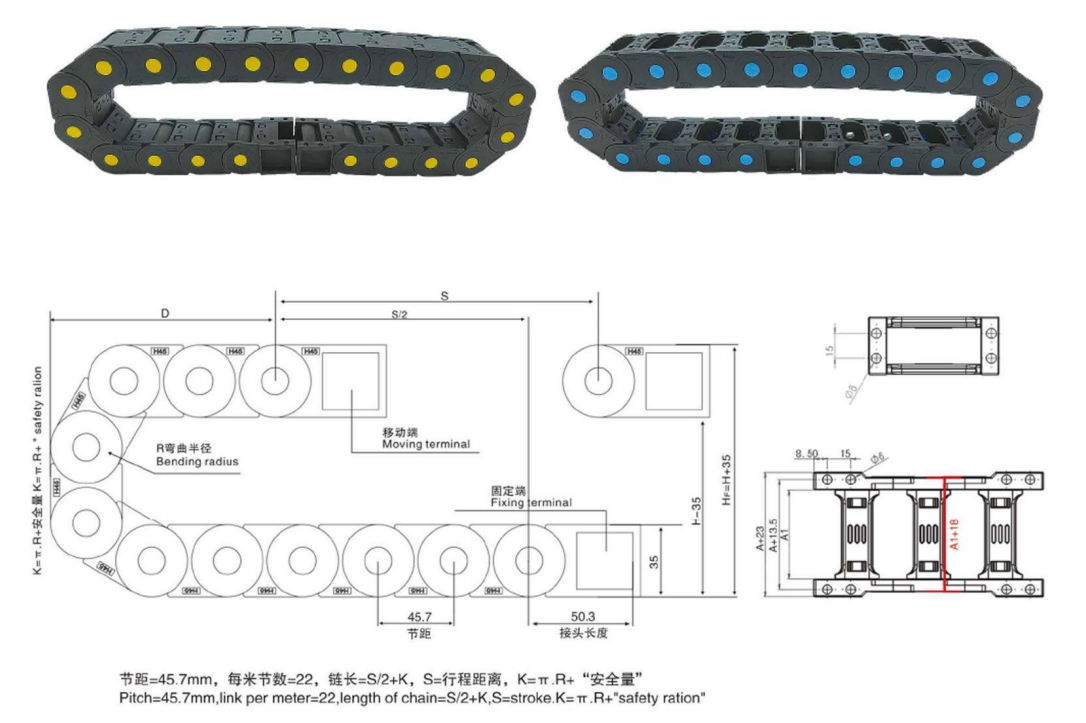

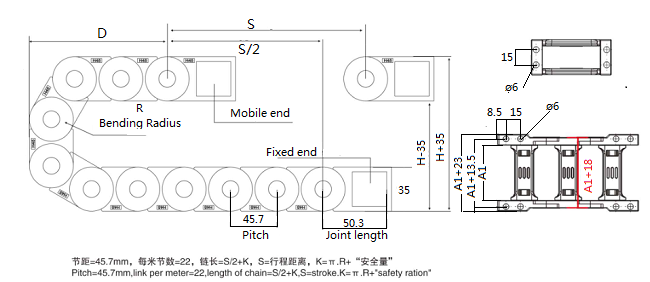

Structure Diagram

Application

Compact Vertical Machining Center: Routes spindle motor cables, coolant lines, and pneumatic tubing; the 20mm internal height provides a perfect fit.

Automated Loading/Unloading Manipulator: Routes control harnesses and signal cables along the X and Y axes; requires high abrasion resistance and tensile strength.

CNC Grinding Machine: Protects measurement probe cables, preventing corrosion caused by grinding fluid and metal dust.

Automated Assembly Line: Accommodates cabling for tooling plates moving along guide rails; the cable chain follows the movement to ensure a tidy workshop environment.

3D Printer (Industrial Grade): Houses heating cables, temperature sensors, and filament feed tubes; designed to withstand prolonged printing operations.
