Material: PA66
Specification：45*50，45*60，45*75，45*90，45*100，45*125，45*150
Color: Black (Custom colors available upon request)
Feature: Noise Prevention
Structure: Bridge-type
Damping pads are incorporated between the chain links to automatically generate damping force during the drag chain's acceleration and deceleration phases, thereby reducing link impact and ensuring smoother, quieter operation. This model offers an optional fully enclosed, sound-dampening cover, making it ideal for cleanroom environments with strict requirements regarding both dust control and noise levels. Operating noise remains below 48 dB.

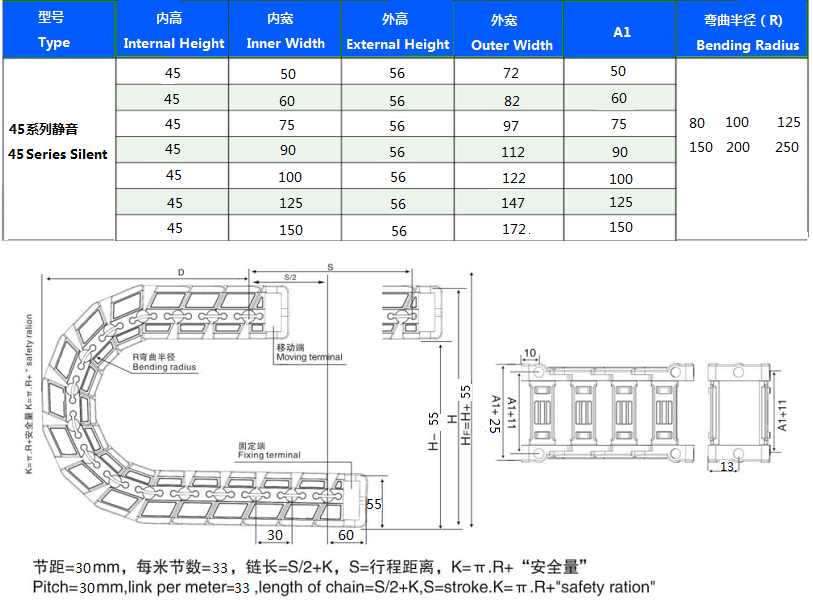

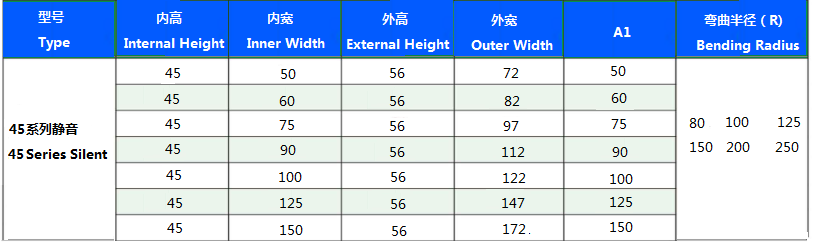

Model Table
|
Internal Height |
Inner Width |
Radius or gyration |
A1 |
Outer Height |
Outer Width |
|
45 |
50 |
80 |
50 |
56 |
72 |
|
45 |
60 |
60 |
56 |
82 |
|
|
45 |
75 |
75 |
56 |
97 |
|
|
45 |
90 |
90 |
56 |
112 |
|
|
45 |
100 |
100 |
56 |
122 |
|
|
45 |
125 |
125 |
56 |
147 |
|
|
45 |
150 |
150 |
56 |
172 |
Application
Lithium-ion Battery Winding Machines: High-speed operation with low noise levels, improving the long-term working environment for operators.
Solar PV String Soldering Machines: Multiple units concentrated within a single workshop; low noise levels prevent mutual interference.
Pharmaceutical Packaging Lines: GMP-compliant workshops require equipment that is both low-noise and easy to clean.
LCD Glass Substrate Transport: Dust-free and silent operation to prevent glass breakage caused by vibration.
Precision Injection Molding Machines: Used for the production of medical or optical products; low noise levels help maintain required environmental standards.
