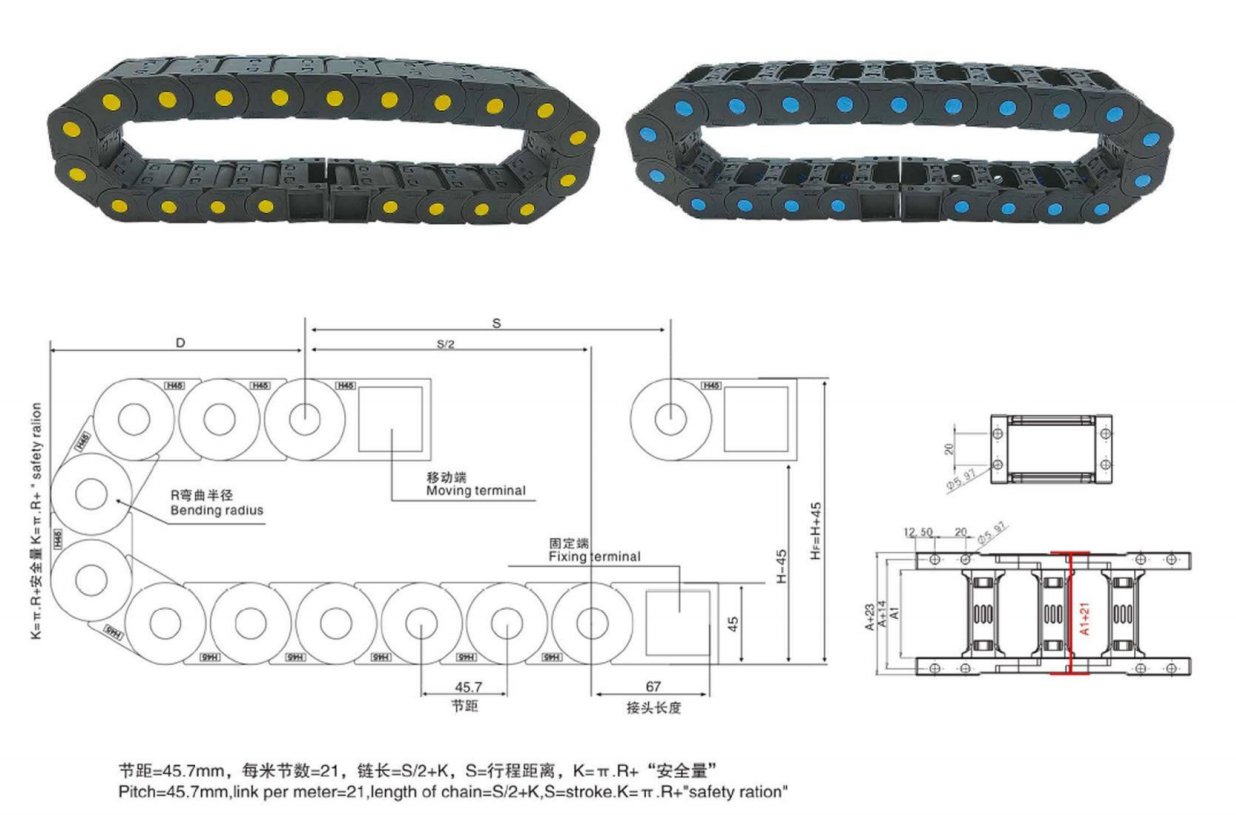

Small-Sized Drag Chain 30 – Light Industrial Nylon Drag Chain

Feature

Suitable for small to medium-sized automation equipment requiring accommodation for larger wire harnesses or thicker pneumatic tubing. The clearance between chain links has been optimized to prevent lateral swaying during movement, thereby enhancing cable routing stability.

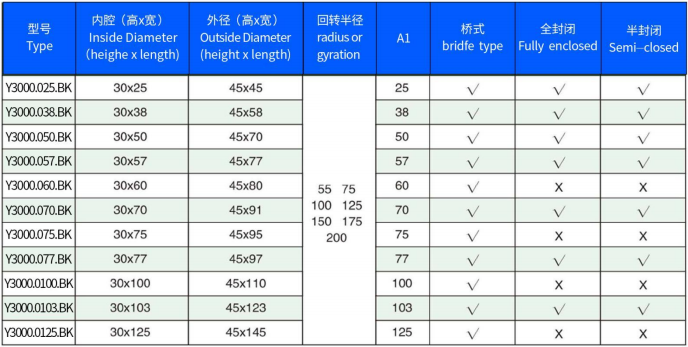

Model Table

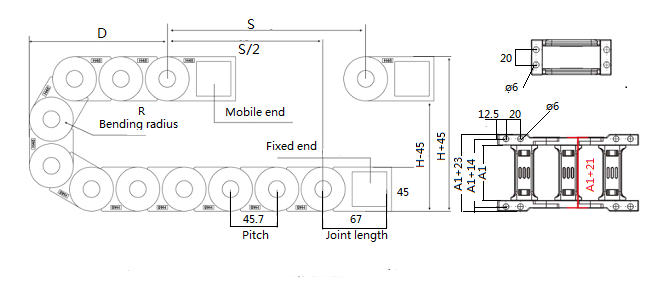

Structure Diagram

Application

Palletizing Robots (Small to Medium-Sized): Routes power and multi-channel signal cables; designed to withstand frequent, large-amplitude swinging motions.

Automatic Chamfering Machines: Protects spindle cables and coolant lines, preventing metal chips from scratching the cables.

Woodworking Machining Centers: Accommodates dust extraction hoses, coolant lines, and control cables; designed to operate effectively in environments containing wood chips and dust.

Automated Storage Stackers: Facilitates vertical lifting and horizontal movement; requires cable chains with high resistance to torsion and tensile stress.

Automotive Parts Assembly Lines: Supports fixtures and tooling moving along guide rails; enables centralized management of multiple cables.
