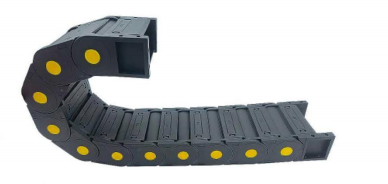

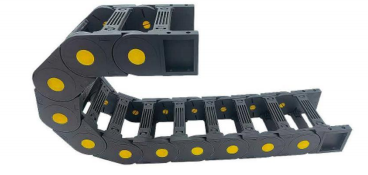

Y55 Bridge type Economical Drag Chain

Capable of accommodating thicker power cables and multiple conduits. Constructed from high-strength PA66, the chain links feature a 30% increase in thickness, enabling them to withstand substantial tensile loads.

Applications

CNC Floor-Type Boring and Milling Machines: Routing of main spindle power cables, multi-axis encoder lines, and hydraulic lines.

Large-Scale Injection Molding Machines: Centralized routing for operations such as ejection, core pulling, and mold opening/closing.

Automated Chamfering and Polishing Production Lines: Long-travel moving stations requiring the centralized management of multiple cables and pneumatic lines.

Woodworking Edge Banding Machines: Accommodating glue pot heating cables, control lines, and dust extraction hoses; designed to withstand environments containing wood chips.

Mining Screening Equipment: Protecting control lines and sensor cables within high-vibration environments.

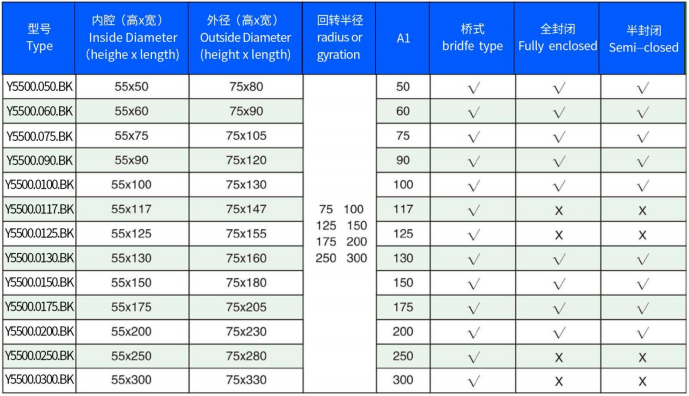

Model Table

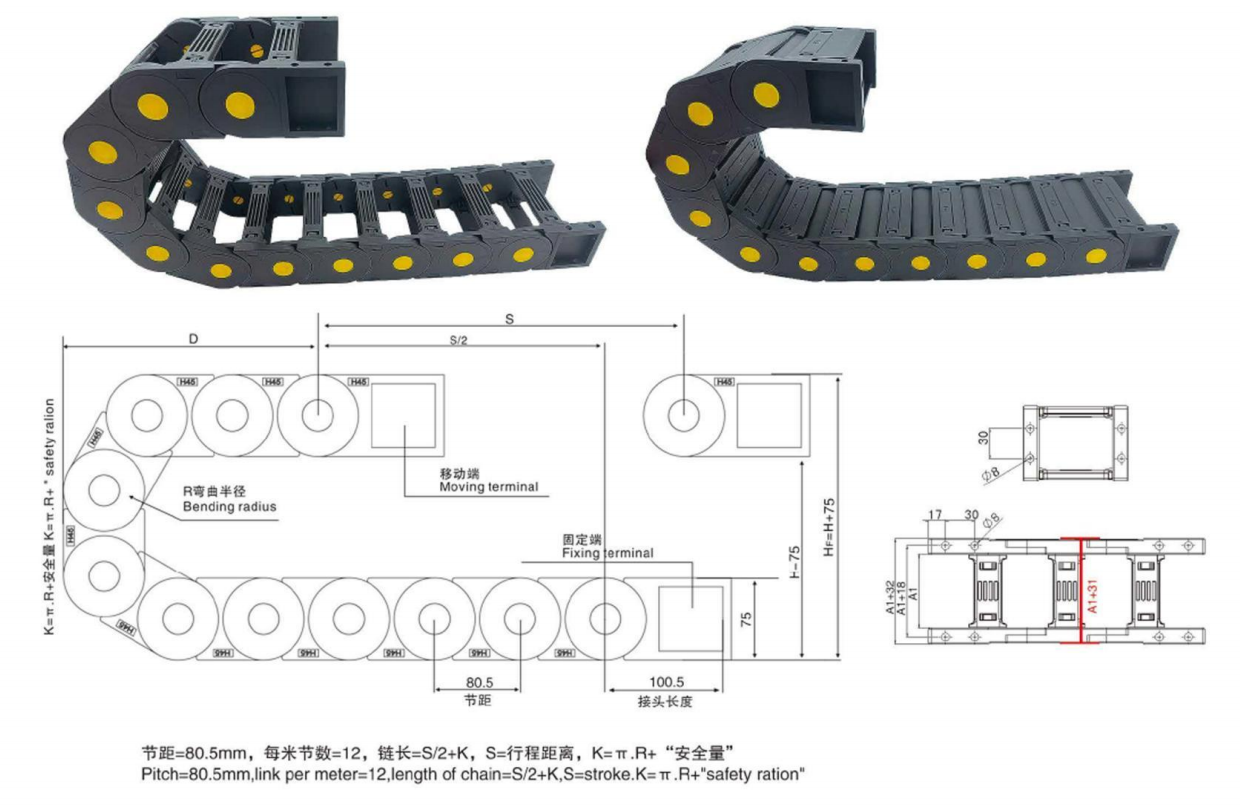

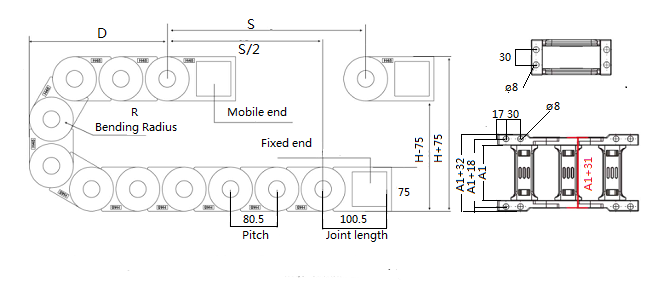

Structure Diagram

Characteristics and Applications of Drag Chains

1. The product can be used for such locations where reciprocating, of motions are required so that internally internally installed cables,oil pipes,gas tubes and water tubes can be dragged and protected.

2. The drag chains have already extensively used in digital-controlled machine tools,electronic equipment,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
