Material: PA66
Specification:55*50, 55*60, 55*75, 55*90 ,55*100, 55*125, 55*150
Color: Black (Custom colors available upon request)
Feature: Noise Prevention
Structure: Bridge-type
Maximum Capacity Acoustic Control: Heavy-duty acoustic dampening architecture engineered to silence massive multi-line cable and hose assemblies.

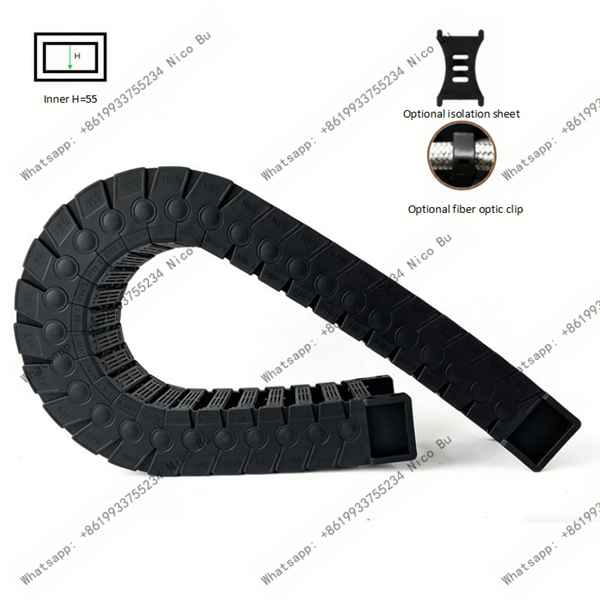

Series 55 (55mm Inner Height): Massive inner profile designed to house extensive, heavy-duty industrial wiring configurations.
High-Performance anti noise drag chain 55 Design: Functions as an industrial-grade anti noise drag chain 55 providing ultimate strength and superior noise suppression.
Tangle & Mechanical Stress Protection: Safely segregates internal lines to prevent friction exhaustion, wear, and structural binding under heavy loads.
Wide Applications: Perfect for massive CNC gantry mills, heavy production lines, large-scale automated machinery, and heavy industrial robots.

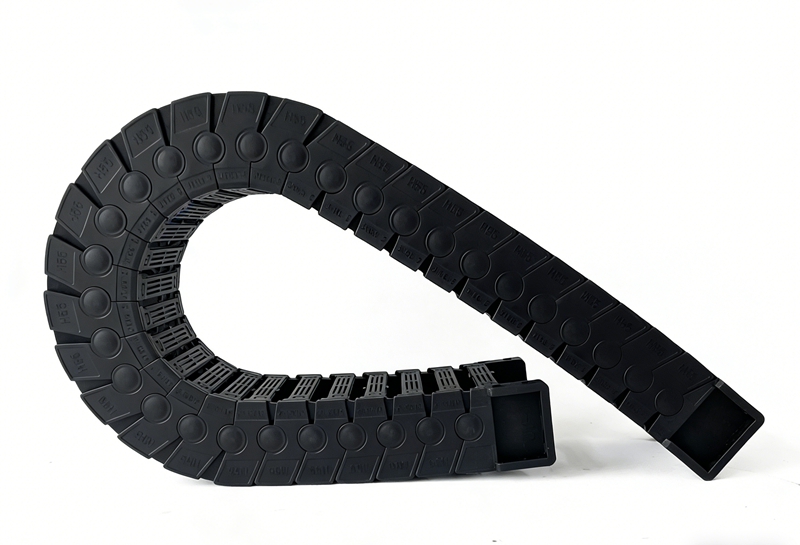

Conquer massive cable management challenges in complete quiet with our Anti Noise Drag Chain 55 Series. Designed for heavy-duty industrial applications that manage extensive bundles of thick cables and high-pressure hoses, this premier anti noise drag chain 55 combines immense structural strength with state-of-the-art sound dampening. Featuring an extra-large 55mm inner height, it provides exceptional interior volume while preventing the roaring resonance typical of heavy-duty tracks in motion. Molded from premium reinforced engineering plastic, it resists extreme mechanical wear, resists sagging over long spans, and shields your critical wiring from friction and fatigue. Perfect for large CNC gantries and heavy automated factory lines, it delivers uncompromising durability and a remarkably quieter workspace.
Type: Low-Noise / Anti-Noise Series Cable Carrier
Series: 55 Series (55mm Inner Height)
Material: Reinforced Acoustic Dampening Engineering Plastic
Color: Matte Black
Applications: Massive CNC Gantry Mills, Heavy Production Lines, Large Automated Machinery, Industrial Robots

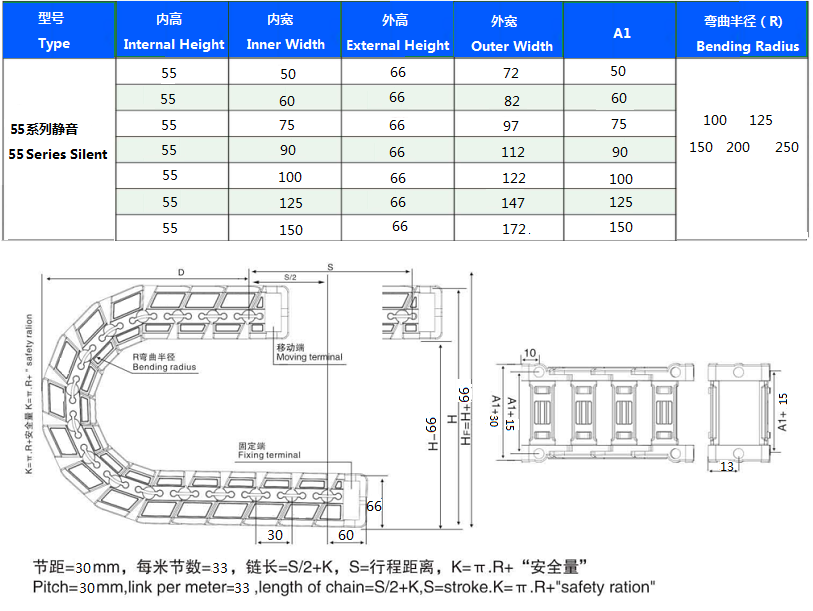

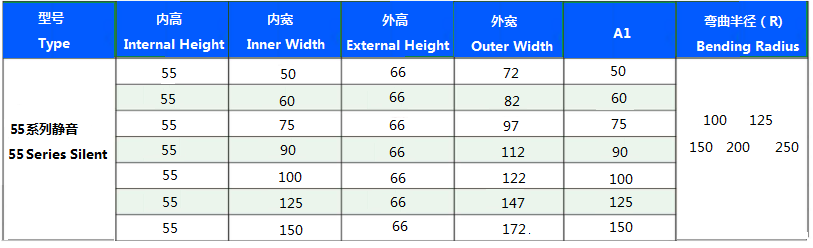

Model Table
|
Internal Height |
Inner Width |
Radius or gyration |
A1 |
Outer Height |
Outer Width |
|
55 |
50 |
100 |
50 |
66 |
72 |
|
55 |
60 |
60 |
66 |
82 |
|
|
55 |
75 |
75 |
66 |
97 |
|
|
55 |
90 |
90 |
66 |
112 |
|
|
55 |
100 |
100 |
66 |
122 |
|
|
55 |
125 |
125 |
66 |
147 |
|
|
55 |
150 |
150 |
66 |
172 |
Engineered for heavy-duty industrial applications requiring high load capacity and minimal acoustic impact, our 55-Series Anti-Noise Cable Drag Chain provides an optimal cable protection solution. Featuring a generous 55mm inner height, this series easily accommodates large-diameter power cables, multi-core control lines, and heavy hydraulic hoses, ensuring smooth linear guidance across long stroke lengths.
Manufactured from reinforced engineering plastics with specialized sound-dampening joint structures, this quiet cable carrier significantly reduces pitch collision noise and vibration during high-speed reciprocating movement. It creates a cleaner, safer, and quieter operating environment for operators in modern automated facilities.




Application
Large-scale Medical Imaging Equipment: For the movement of MRI or CT patient tables, ultra-quiet operation is required to prevent patient anxiety.
High-end Home Rehabilitation Robots: Designed for home environments, requiring operation that does not disrupt daily life.
Soundproof Testing Chambers: Used for acoustic testing, where the energy chain itself must not generate any background noise.
