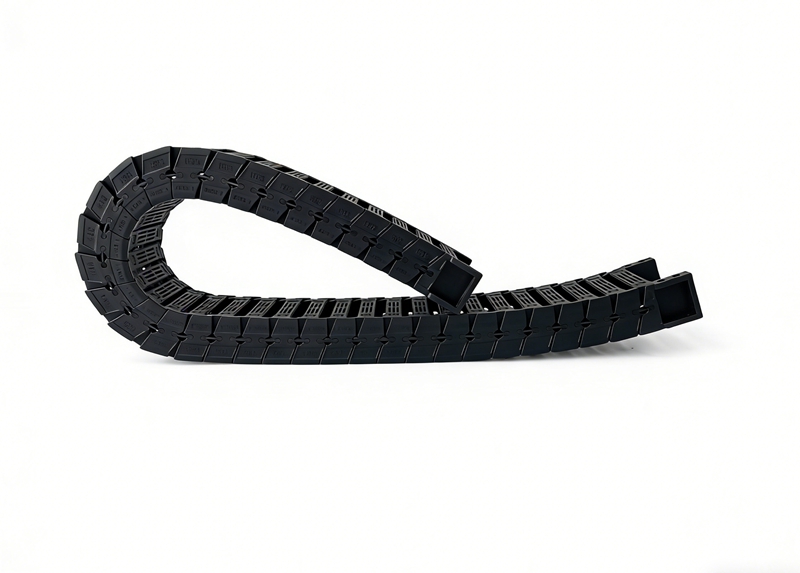

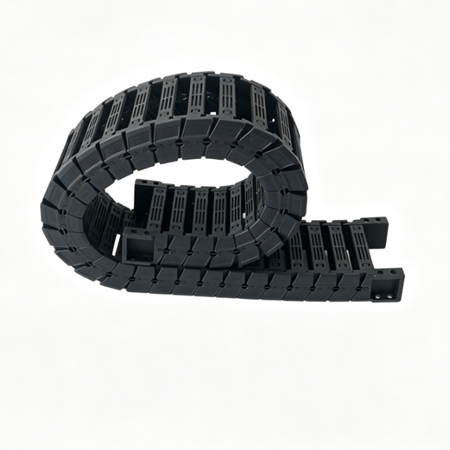

Material: PA66
Specification：35*50，35*60，35*75，35*90，35*100，35*125，35*150
Color: Black (Custom colors available upon request)
Feature: Noise Prevention
Structure: Bridge-type
Applications
High-end CNC Machine Tools: Open workshop or laboratory environments requiring low noise levels.
Automated Optical Inspection (AOI) Equipment: Cable carriers move during the inspection process and must not generate interference.
Precision Assembly Robots: Used in assembly lines for precision products such as smartphones and watches.
Silicon Wafer Transport Equipment: Dust-free and silent operation, protecting silicon wafers from vibration and particulate contamination.
Medical CT Scanners: Cable carriers associated with the scanning bed require smooth and quiet operation.

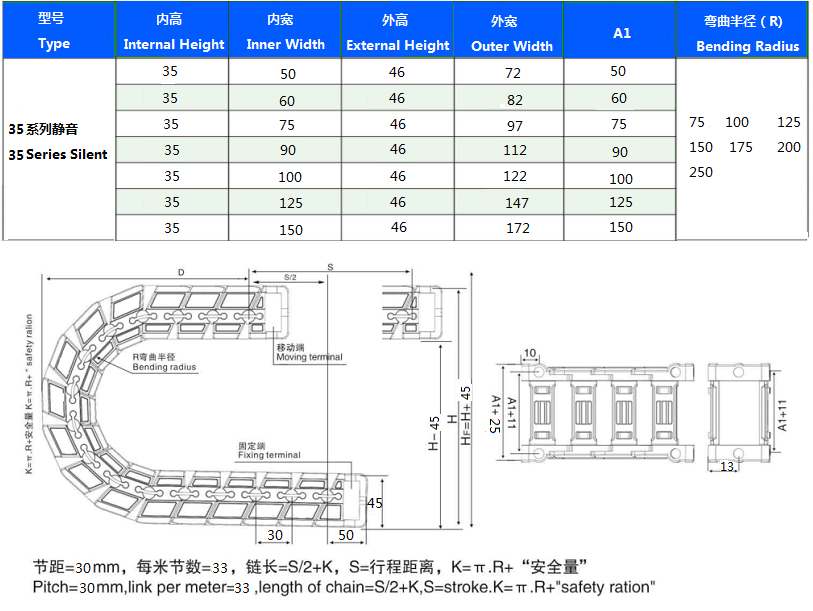

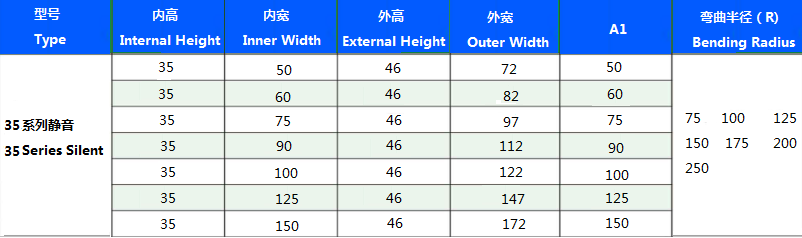

Model Table
|
Internal Height |
Inner Width |
Radius or gyration |
A1 |
Outer Height |
Outer Width |
|
35 |
50 |
75 |
50 |
46 |
72 |
|
35 |
60 |
60 |
46 |
82 |
|
|
35 |
75 |
75 |
46 |
97 |
|
|
35 |
90 |
90 |
46 |
112 |
|
|
35 |
100 |
100 |
46 |
122 |
|
|
35 |
125 |
125 |
46 |
147 |
|
|
35 |
150 |
150 |
46 |
172 |
