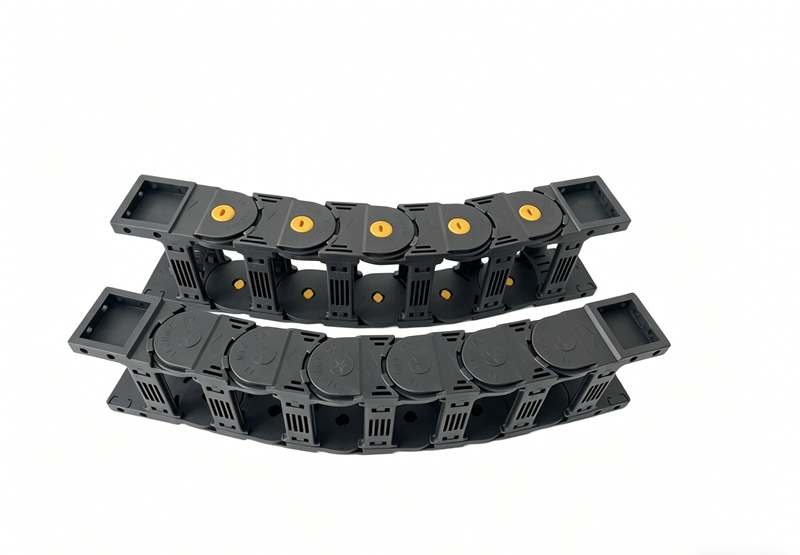

Heavy-Duty Nylon Drag Chain 25 – Reinforced Cable Carrier for Medium Load

The chain links are constructed from PA66 reinforced with glass fiber; their wall thickness is 30% greater than that of standard nylon drag chains, and they feature integrated longitudinal reinforcing ribs, resulting in a performance boost of over 40% in both tensile strength and impact resistance. The bridge-type open structure, combined with reinforced crossbars, allows for single-handed opening even under heavy loads, thereby facilitating convenient cable maintenance. This product is ideally suited for medium-sized equipment applications that require strength superior to that of standard nylon, while still retaining the inherent advantages of being lightweight, rust-proof, and low-noise.

Applicable Machinery

CNC Milling Machines (Medium-sized): Replaces steel cable chains, reduces the load on the gantry structure, and increases travel speed.

Automated Gantry Loading/Unloading Robots: Facilitates long-travel, heavy-duty cable routing while alleviating structural load pressure on the crossbeam.

Laser Cutting Machines (with Exchange Tables): Manages cable routing for the moving exchange table, eliminating the risk of rust in environments exposed to metal dust.
