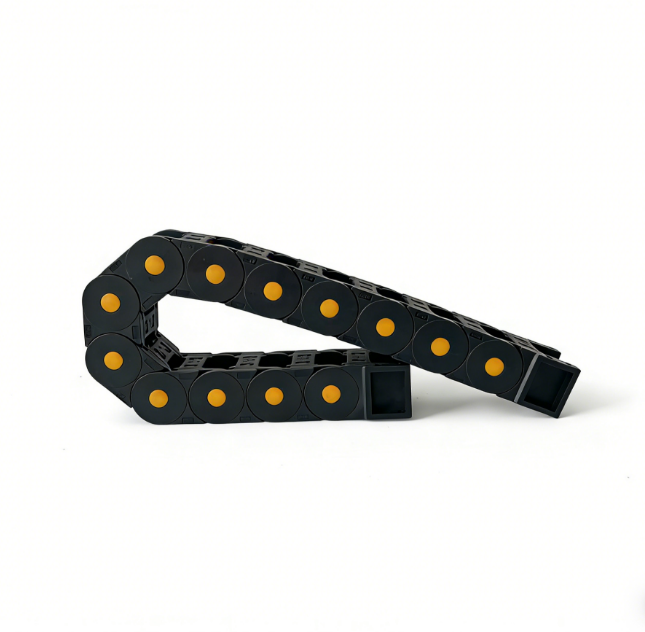

Medium Drag Chain 35 – Nylon Cable Carrier for Packaging Machines

Constructed from high-quality PA66 and infused with UV stabilizers, the material resists aging and brittleness, ensuring durability over extended periods of use. The interior can accommodate various types of dividers to compartmentalize and isolate power cables, signal lines, air hoses, and oil lines, thereby preventing electromagnetic interference and physical abrasion.

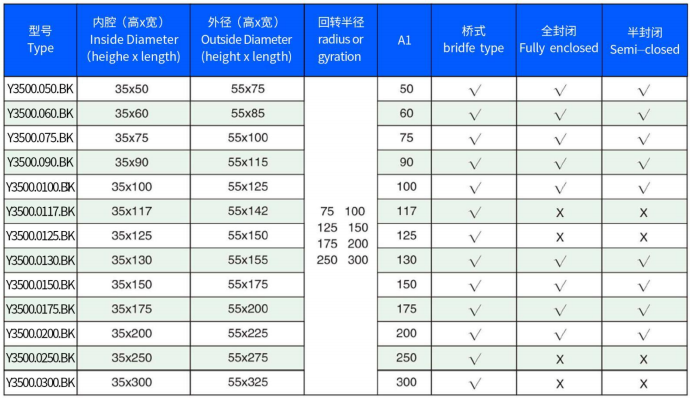

Model Table

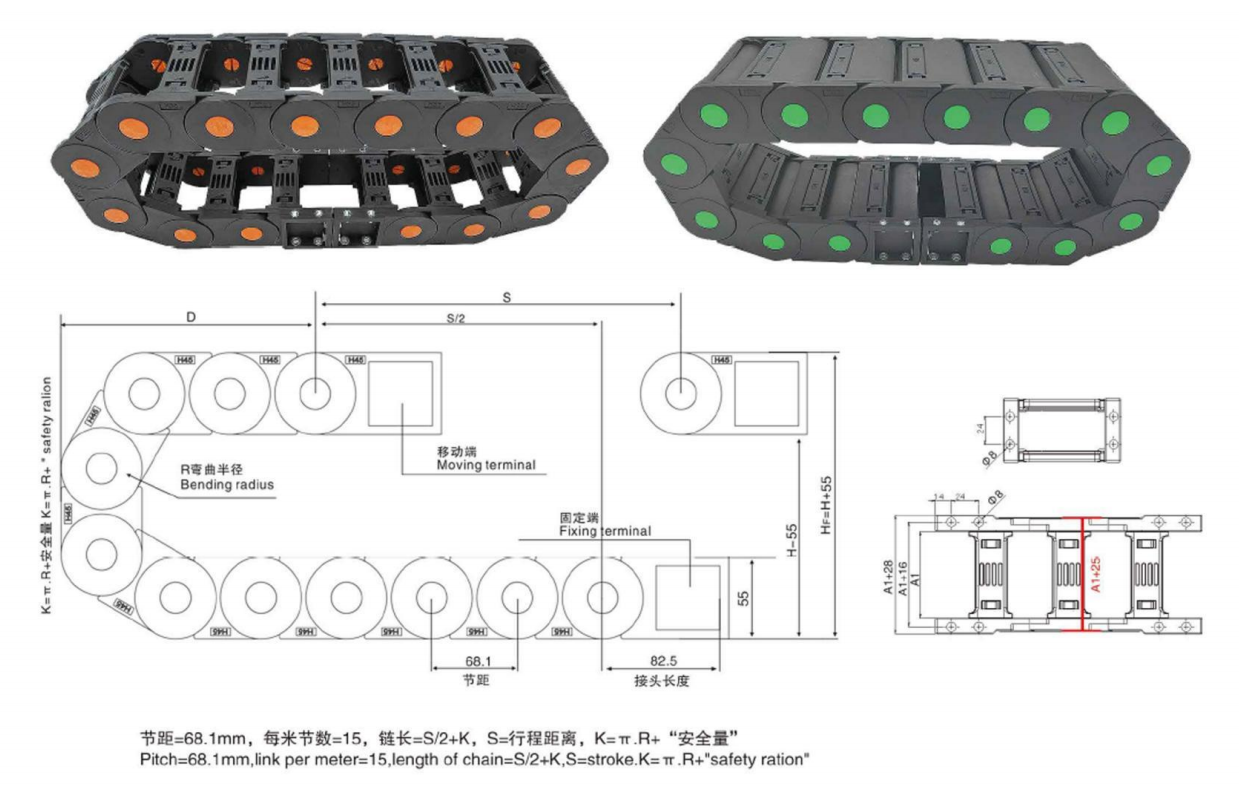

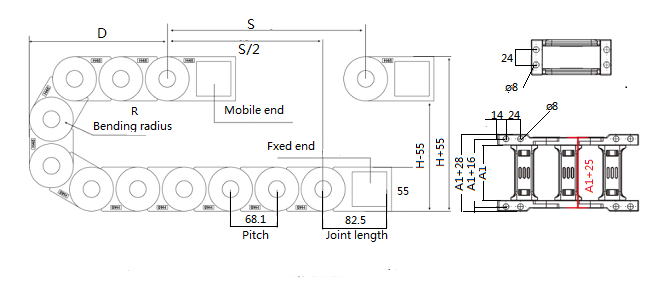

Structure Diagram

Small-scale CNC Gantry Milling Machine: Routes spindle motor cables, multi-channel encoder cables, and cooling system tubing.

Injection Molding Machine Robot Arm: Features frequent, rapid movement along the Y and Z axes; requires a cable chain with high impact and vibration resistance.

Medium-Power Laser Cutting Machine: Protects laser fiber optic cables, auxiliary gas lines, and control wiring harnesses.

Automated Grinding and Polishing Machine: Routes power cables and dust collection hoses; requires a cable chain with high abrasion resistance.

Textile Machinery: Protects yarn detection sensor cables during high-speed reciprocating motion.
