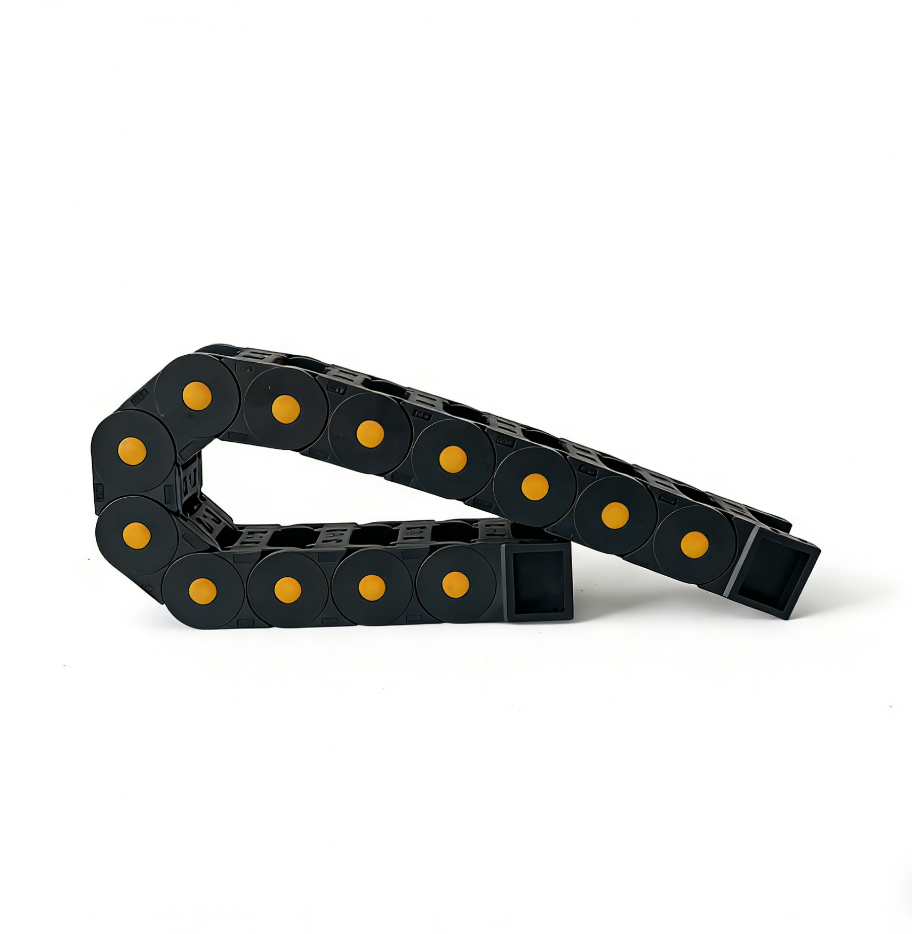

Medium Drag Chain 45 – Industrial Cable Carrier for Automation

This model can be optionally equipped with a fully enclosed top cover and side baffles, creating a semi-sealed space that prevents welding slag and metal chips from falling into the interior. It represents the most widely adopted specification within general industrial automation. It complies with standard factory noise regulations. It can also be customized with low-temperature-resistant materials (down to -60°C) for use in cold storage facilities or on outdoor equipment in frigid regions.

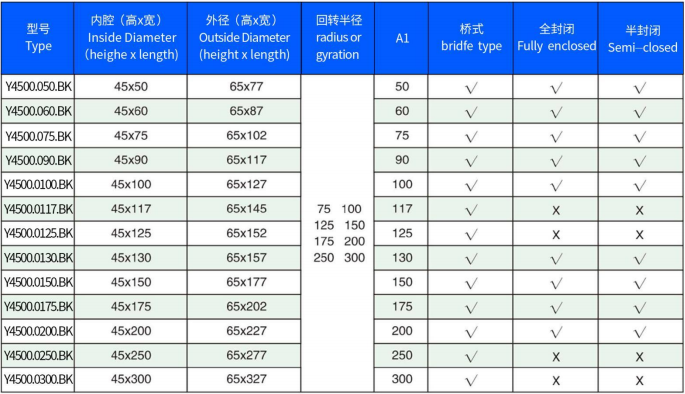

Model Table

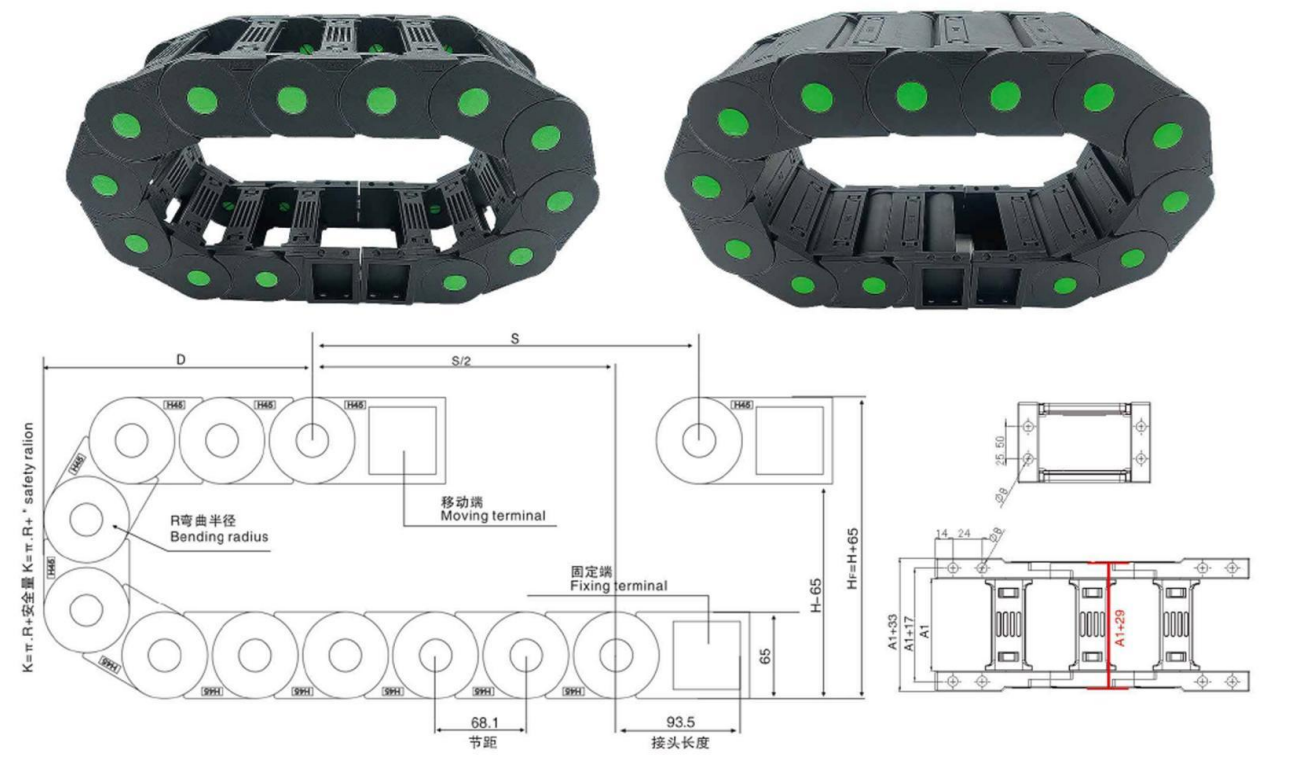

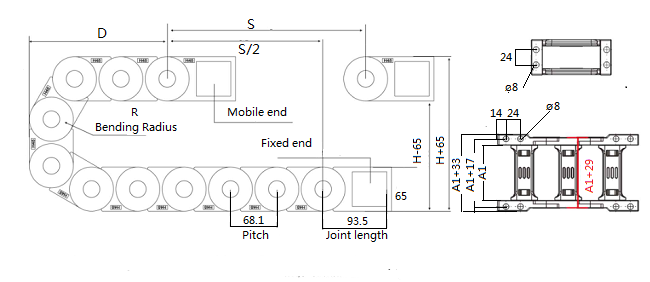

Structure Diagram

Application

Machining Center (Medium-sized): Tool magazine control cables, spindle cooling lines, and chip conveyor power cables.

Automatic Welding Robot: Protective cables for the welding torch, wire feed conduits, and shielding gas lines—designed to prevent burn-through caused by welding spatter.

CNC Bending Machine: Y1/Y2 axis synchronous motion; requires two cable chains to operate in perfect unison without mutual interference.

Automatic Spray Painting Line: Spray guns traveling along a track; carries paint supply lines and control cables, requiring resistance to chemical corrosion.

Cement Packaging Machine: Operates in a dusty environment; an optional fully enclosed cover is available to prevent dust ingress.
