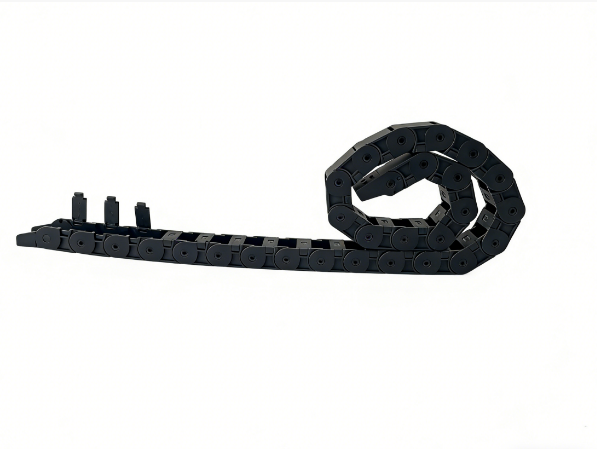

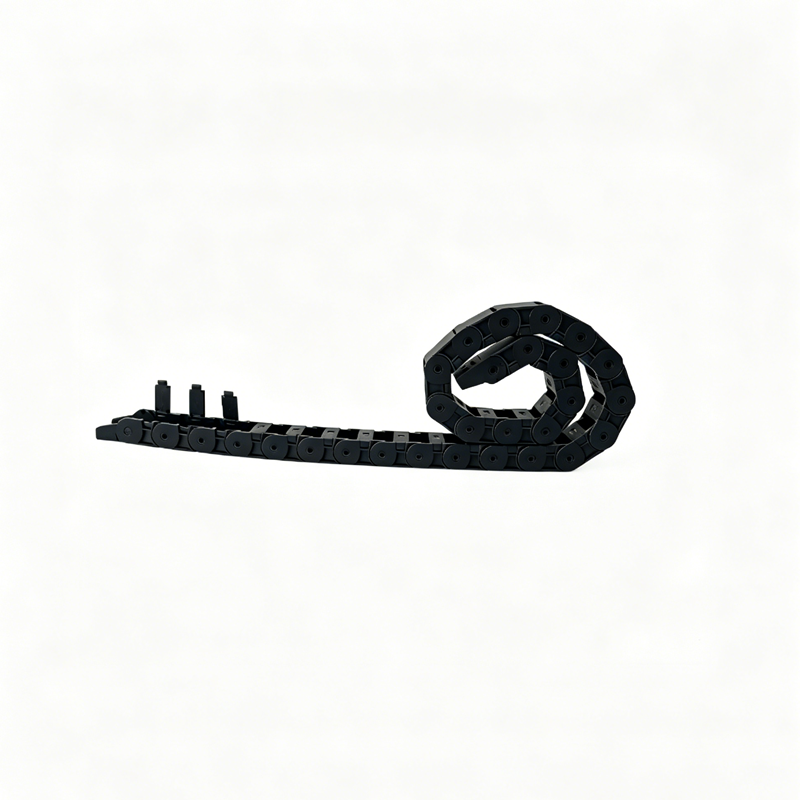

Mini Drag Chain 18 – Small Cable Carrier for 3D Printers & Medical Devices

Construction of The Drag Chains

This is the largest model in the Mini series, suitable for devices that require slightly thicker cables yet remain constrained by limited overall space. Constructed from flame-retardant, V-0 rated PA66 material, it is self-extinguishing upon removal from a flame—making it ideal for electronic equipment with stringent fire safety requirements.

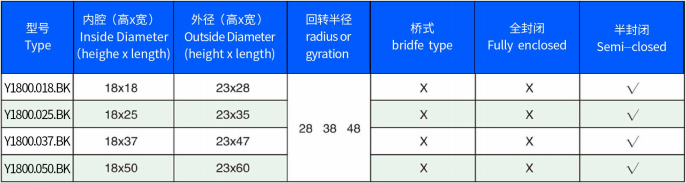

Model Table

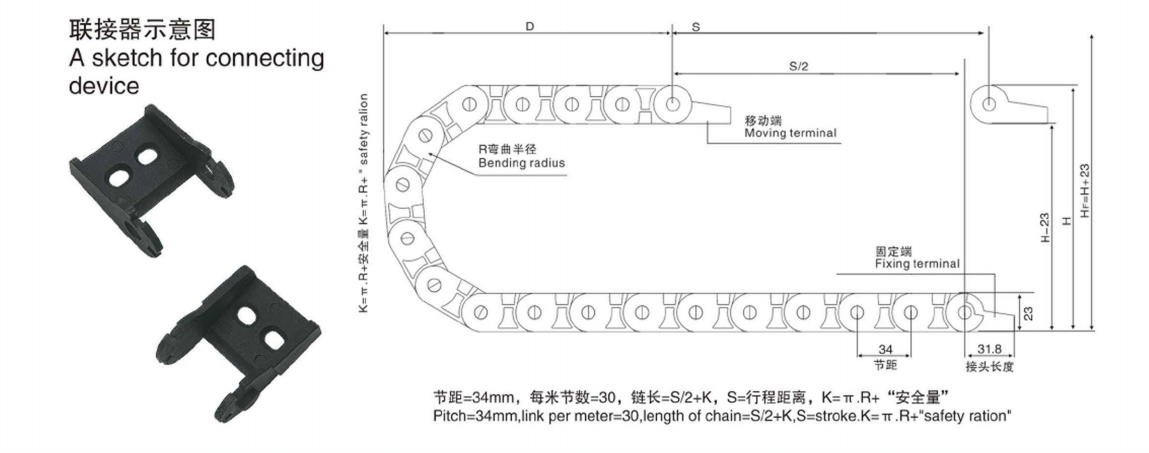

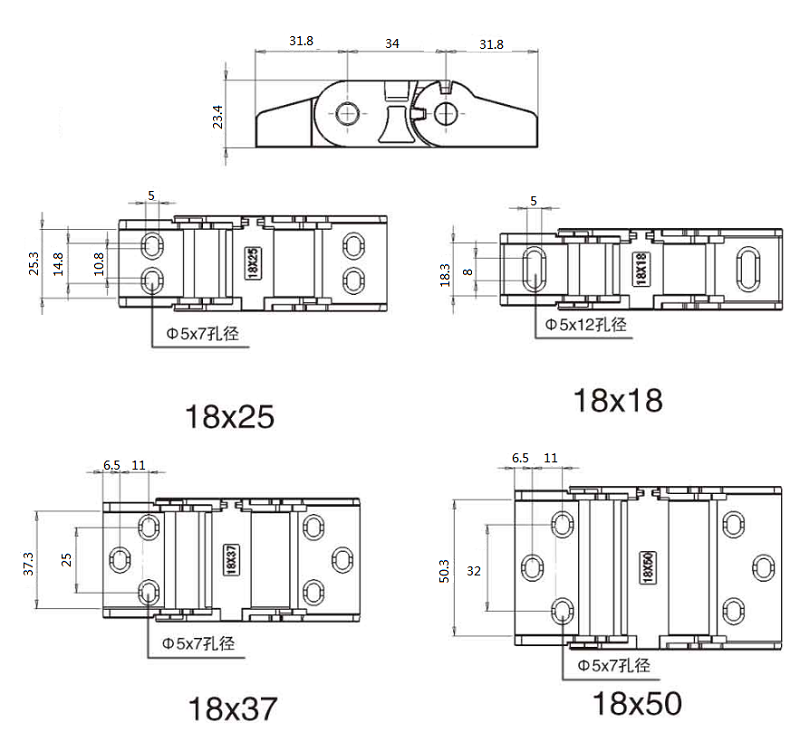

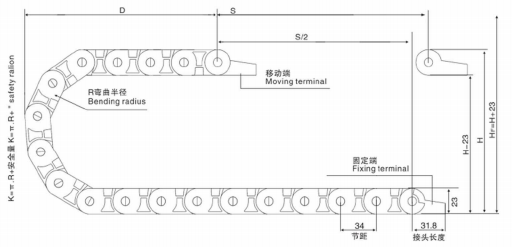

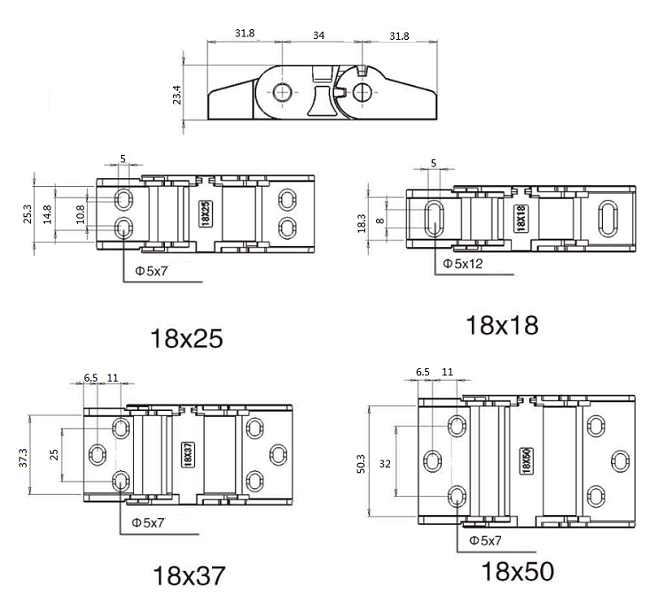

Structure Diagram

Application

Small-scale Robots (Collaborative): Routes power cables, encoder lines, and pneumatic tubing; accommodates complex multi-axis movements.

Medical Devices (Compact Imaging Equipment): Routes signal cables and power lines; requires low noise and minimal friction.

Photovoltaic String Welders: Provides cable protection for frequently moving welding heads, preventing abrasion that could lead to downtime.

Electronic Component Insertion Machines: Safeguards control cable harnesses during high-speed pick-and-place operations, ensuring signal stability.
