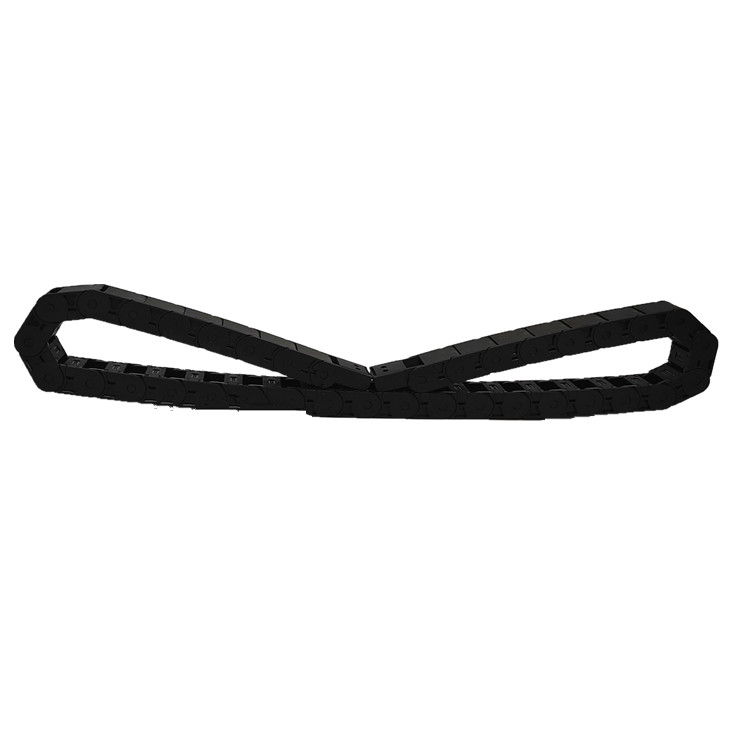

Inner Height 15 Nylon Drag Chain Can Be Opened

This model represents a specification within the miniature cable carrier series that offers superior load-bearing capacity. Constructed from glass-fiber-reinforced PA66, it boasts a tensile strength 30% higher than that of standard nylon, enabling it to accommodate a greater number of cables or cables of slightly larger diameter. Featuring a bridge-type design, each link can be opened individually, facilitating the convenient addition or replacement of cables at a later stage.

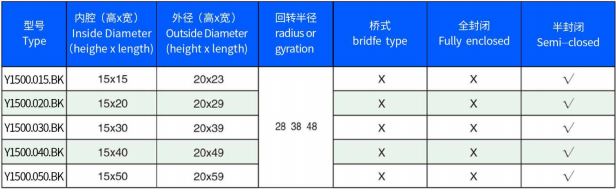

Model Table

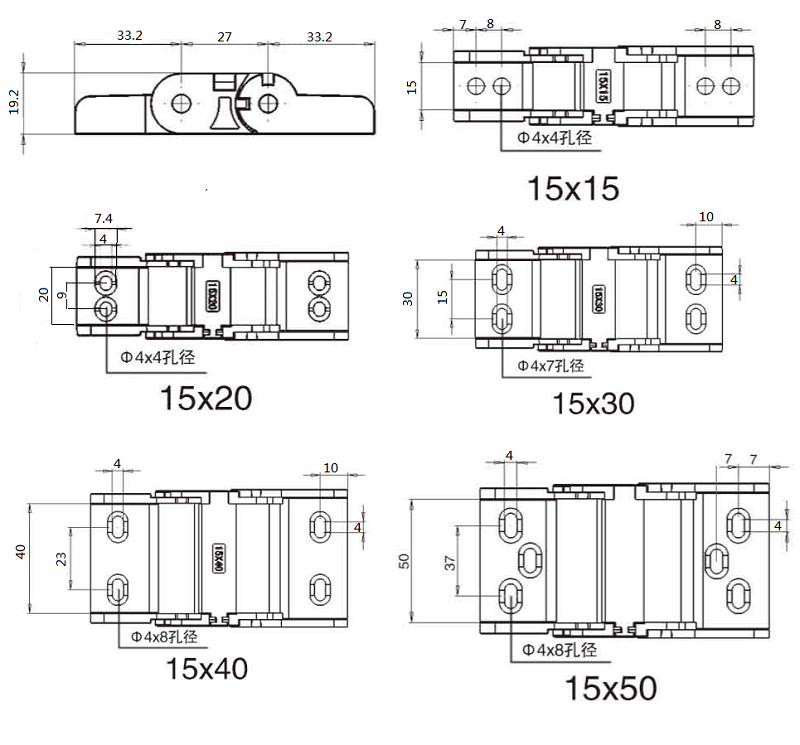

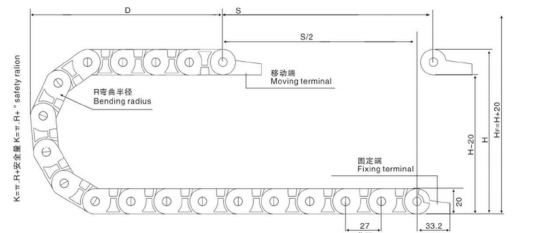

Structure Diagram

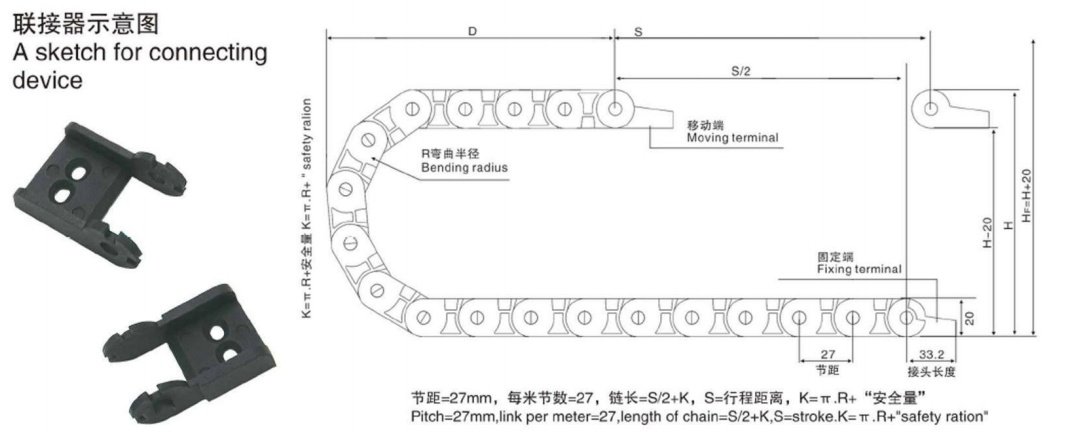

A sketch for connecting device

Application

Automatic Dispensing Machine: Protects dispensing valve control cables and adhesive hoses, preventing damage caused by tension or pulling after the adhesive cures.

Small Packaging & Labeling Machine: Routes label sensor cables and power cords, ensuring flexible movement of the labeling head.

Laser Marking Machine (Enclosed Type): Routes laser control cables and cooling water lines within a compact internal space.

Small-scale Custom Automation Equipment: Suitable for various light-load applications involving reciprocating motion.
