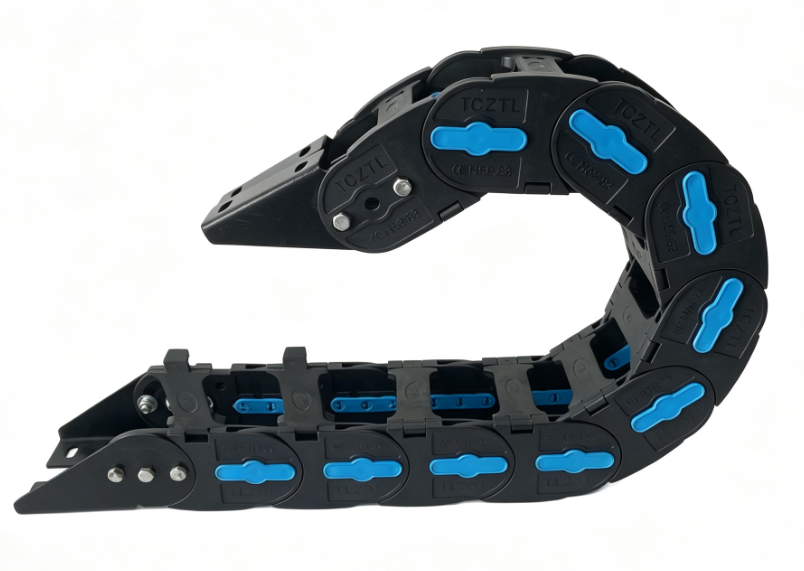

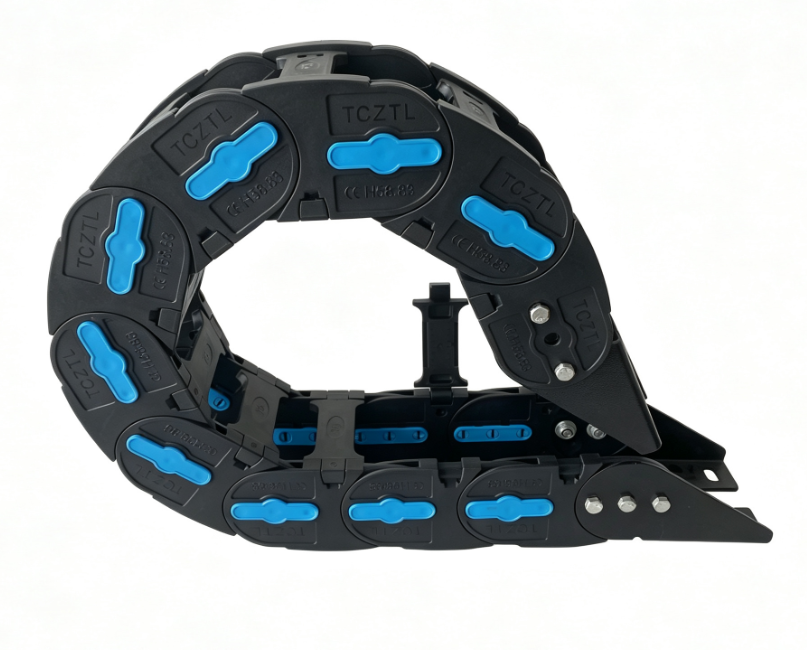

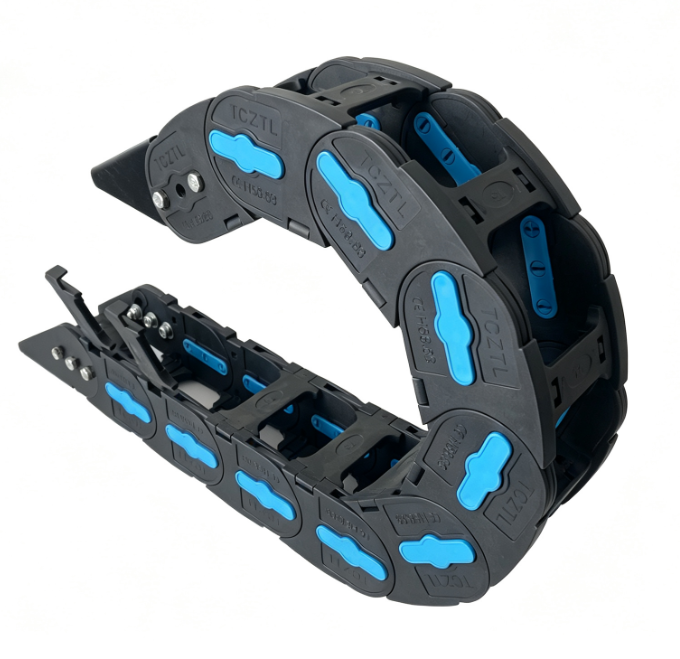

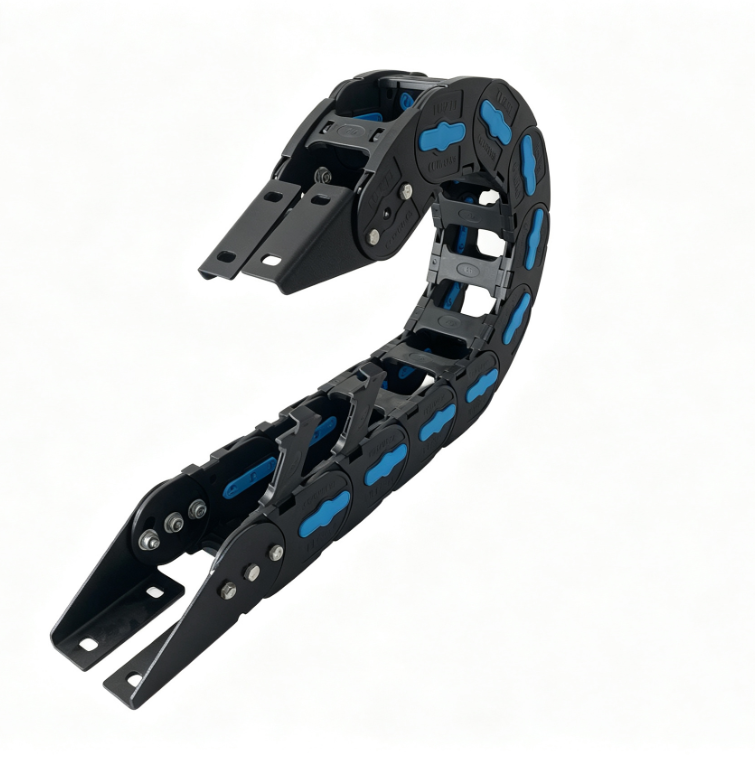

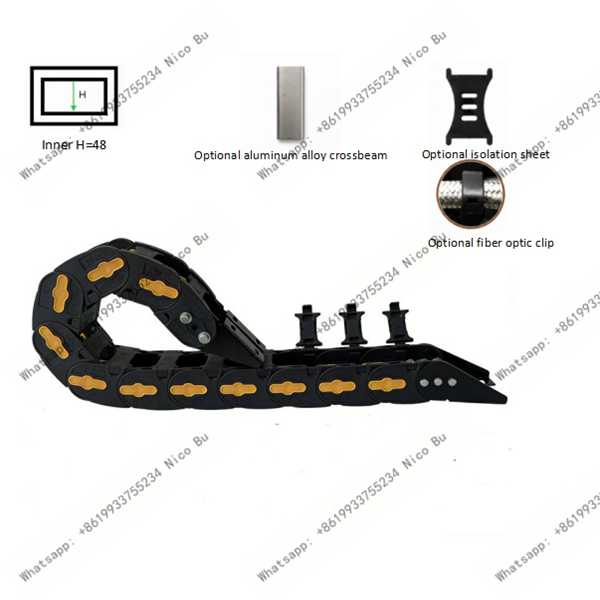

Y48 Bridge-Type Side-Opening Economical Cable Chain

The crossbar features a side-pivot opening mechanism: one end of the bar is fixed to a chain link, while the other end can be opened simply by lifting it upward from the side. This design ensures the crossbar remains attached—preventing it from detaching or getting lost—and allows for single-handed operation.

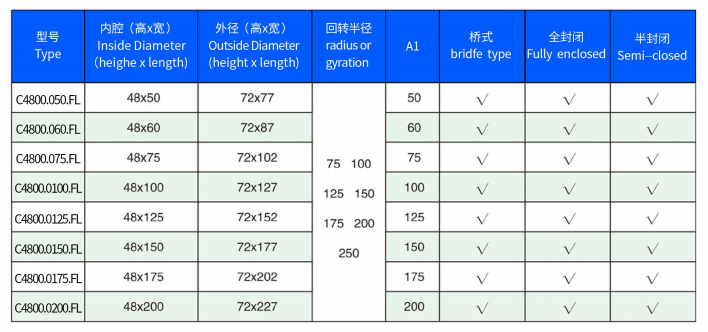

Model Table

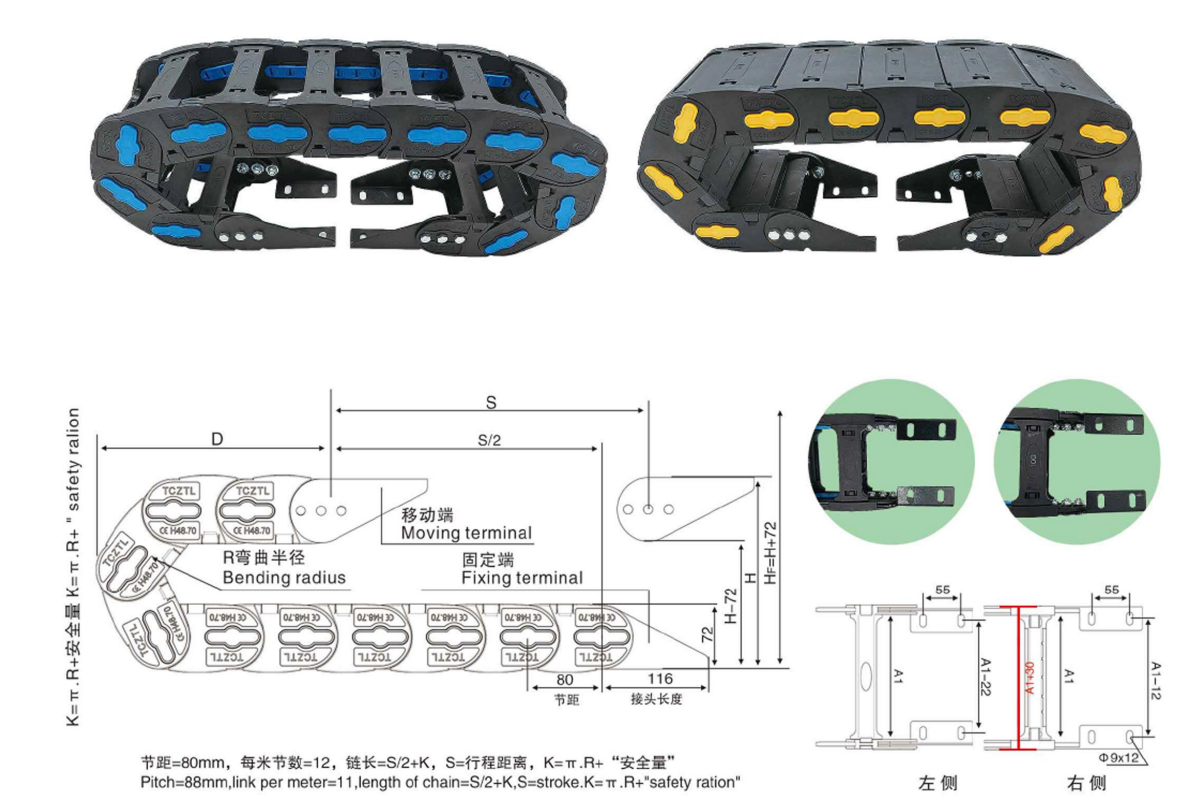

Structure Diagram

Application

5-Axis Machining Center: Located beneath the rotary table; the crossbar remains attached to prevent interference.

Heavy-Duty Gantry Machining Center Beam: For high-altitude operations; one end of the crossbar is fixed to ensure safety.

Large Injection Molding Machine Manipulator: Y/Z axes of a horizontal-traverse manipulator; the crossbar remains attached.

Inside an Automatic Chamfering Machine Guard: Fully enclosed protection; one end of the crossbar is fixed to facilitate convenient access.

Automated Warehouse Stacker Platform: For high-altitude maintenance; the side-opening design enhances safety.

Beneath an Automotive Welding Line Fixture Plate: For multi-station operations; the crossbar cannot be misplaced.

Large Heat Treatment Furnace Feeding Mechanism: Located in a high-temperature zone; the side-opening design prevents burns.
