Specification：45*50，45*60，45*75，45*100，45*125，45*150，45*175，45*200
Color: Black (Custom colors available upon request)
Opening Method: Side-opening
Structure: Bridge-type / Fully Enclosed
The chain links are constructed from reinforced PA66 nylon, featuring thickened walls designed to withstand moderate loads. The side-opening mechanism incorporates an elastic self-locking latch; to close, simply press down on the crossbar to secure it, while opening requires only lifting the crossbar upward from the side. Each crossbar operates independently, facilitating individual access for convenient cable maintenance.

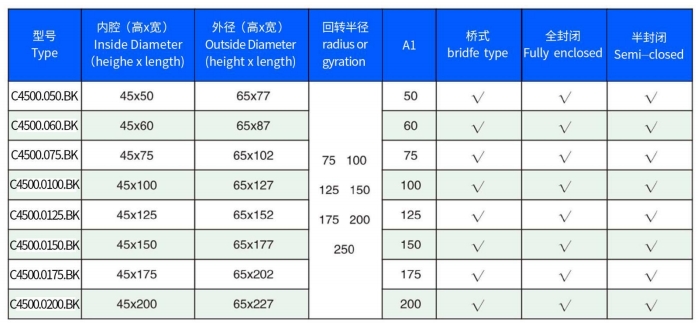

Model Table
|
Type |
Inside Diameter |
Outside Diameter |
Radius or gyration |
A1 |
Bridge type |
Fully type |
Semi-closed |
|
C45.50 |
45*50 |
65*77 |
75 |
50 |
√ |
√ |
√ |
|
C45.60 |
45*60 |
65*87 |
60 |
√ |
√ |
√ |
|
|
C45.75 |
45*75 |
65*102 |
75 |
√ |
√ |
√ |
|
|
C45.100 |
45*100 |
65*127 |
100 |
√ |
√ |
√ |
|
|
C45.125 |
45*125 |
65*152 |
125 |
√ |
√ |
√ |
|
|
C45.150 |
45*150 |
65*177 |
150 |
√ |
√ |
√ |
|
|
C45.175 |
45*175 |
65*202 |
175 |
√ |
√ |
√ |
|
|
C45.200 |
45*200 |
65*227 |
200 |
√ |
√ |
√ |

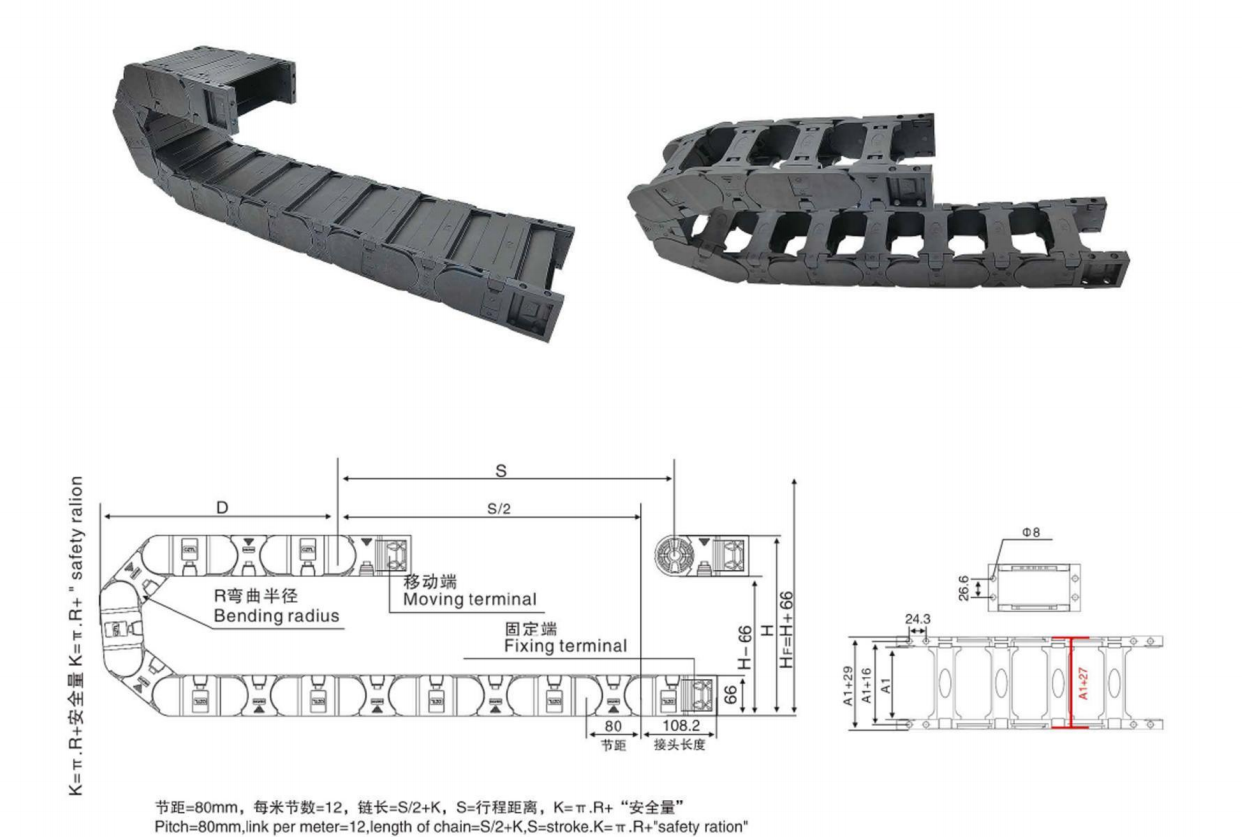

Structure Diagram
Application
5-Axis Machining Center: Located beneath the rotary table, the crossbar remains securely attached to prevent interference with the rotation mechanism.
Inside the Beam of an Injection Molding Robot: Ideal for overhead applications, eliminating any concern regarding the crossbar falling.
Inside an Automatic Chamfering Machine Guard: Provides fully enclosed protection, with the crossbar secured at one end for convenient access and removal.
