Material: PA66
Specification：48*50，48*60，48*75，48*100，48*125，48*150，48*175，48*200
Color: Black (Custom colors available upon request)
Structure: Extended and Reinforced / Bridge-type / Fully Enclosed

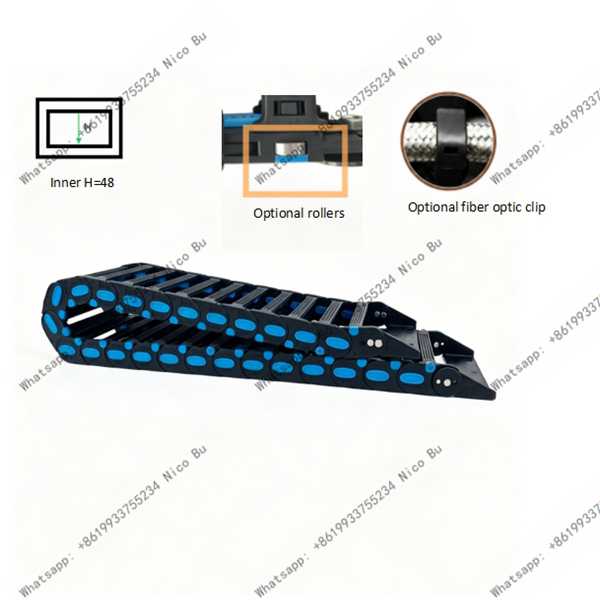

✅ 48mm inner height for larger cable bundles
✅ Long travel design for extended stroke
✅ Higher load capacity than 38mm
✅ Smooth operation at long distance
✅ Custom lengths available

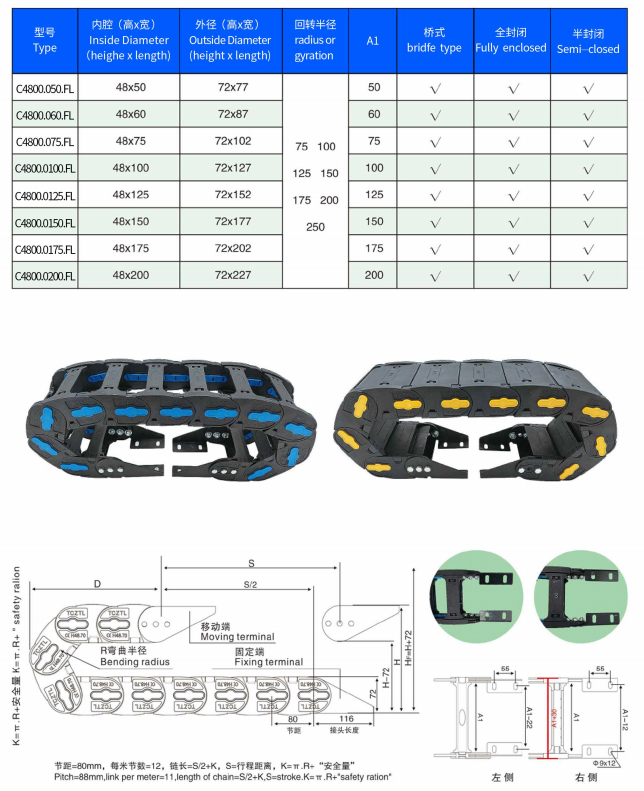

Model Table
|
Type |
Inside Diameter |
Outside Diameter |
Radius or gyration |
A1 |
Bridge type |
Fully type |
Semi-closed |
|
C48.50 |
48*50 |
72*77 |
75 |
50 |
√ |
√ |
√ |
|
C48.60 |
48*60 |
72*87 |
60 |
√ |
√ |
√ |
|
|
C48.75 |
48*75 |
72*102 |
75 |
√ |
√ |
√ |
|
|
C48.100 |
48*100 |
72*127 |
100 |
√ |
√ |
√ |
|
|
C48.125 |
48*125 |
72*152 |
125 |
√ |
√ |
√ |
|
|
C48.150 |
48*150 |
72*177 |
150 |
√ |
√ |
√ |
|
|
C48.175 |
48*175 |
72*202 |
175 |
√ |
√ |
√ |
|
|
C48.200 |
48*200 |
72*227 |
200 |
√ |
√ |
√ |
Applications
1. Heavy-duty CNC Machine Tools and 5-Axis Machining Centers
2. Injection Molding Machine Robots (Horizontal-Traverse Type)
3. Port and Lifting & Transport Equipment
4. Automated Spray Coating Lines
5. Mining and Metallurgical Equipment
6. Wind Power and Energy Equipment
