TLG75-TLG175 Steel High Flexible Drag Chain Cable

TLG75-TLG175 Steel High Flexible Drag Chain Cable

Product ID : TLG75-TLG175

Product Tags : High-quality carbon steel Iron and steel metallurgy carburized treatment (for wear resistance)heavy-duty machine tools mobile power supply systems port machinery zinc-plated surface (for rust prevention）

Product Attributes :

Material：Stainless Steel /Galvanize

Structure: Bridge-type / Fully Enclosed

TLG75:Inner Height: 30mm, Outer Height: 50mm, Inner Width: 40–300mm, Outer Width: 55–315mm
TLG100:Inner Height: 55mm, Outer Height: 75mm, Inner Width: 50–350mm, Outer Width: 67–370mm
TLG125:Inner Height: 70mm, Outer Height: 100mm, Inner Width: 70–450mm, Outer Width: 90–470mm
TLG175:Inner Height: 120mm, Outer Height: 150mm, Inner Width: 100–1000mm, Outer Width: 130–1030mm

Product Description

Steel fully enclosed cable chains are specifically engineered for extreme industrial environments; compared to open-style cable chains, they offer distinct advantages in terms of protection, durability, and reliability.

1. Comprehensive Protection: Eliminating Potential Failure Risks

The fully enclosed structure—featuring high-strength sealed covers—completely encases cables, oil lines, and air hoses, effectively shielding them from metal chips, welding slag, dust, coolants, and oil contaminants. In settings such as steel mills, foundries, and mines, this serves as a critical safeguard against cable damage, premature aging, and short circuits.

2. Minimizing Downtime Risks: Boosting Production Line Efficiency

This design prevents sudden operational stoppages caused by external debris while simultaneously reducing the workload associated with routine cleaning. It is particularly well-suited for industries requiring continuous 24-hour operation—such as metallurgy, port logistics, and heavy machinery manufacturing.

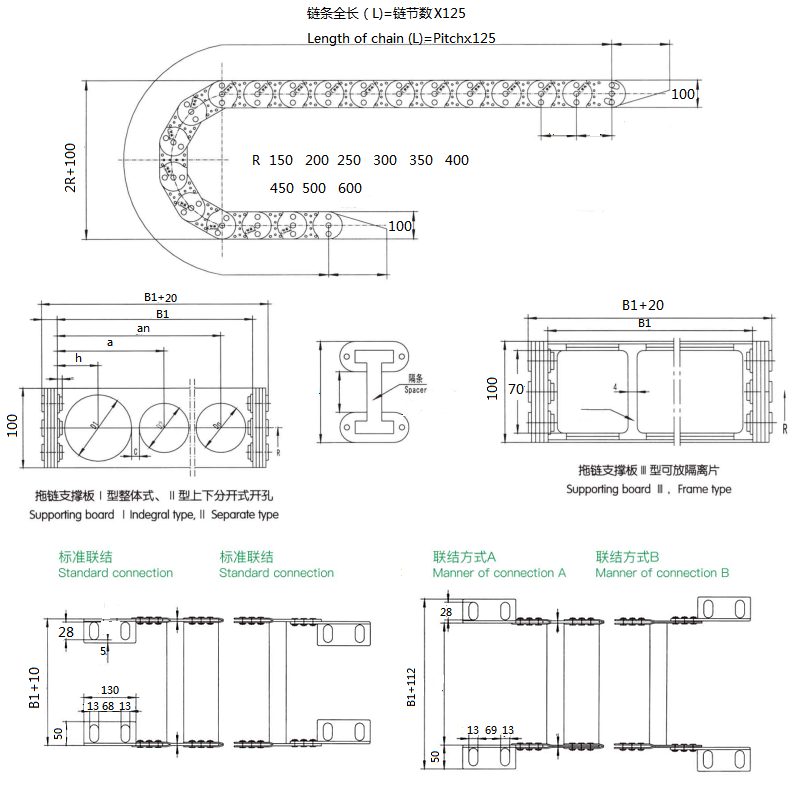

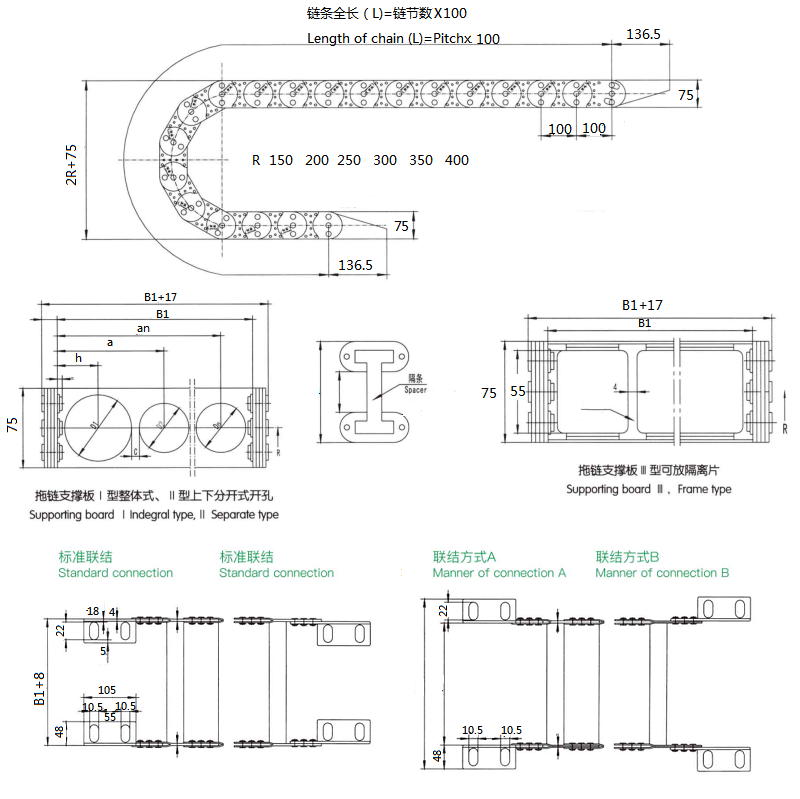

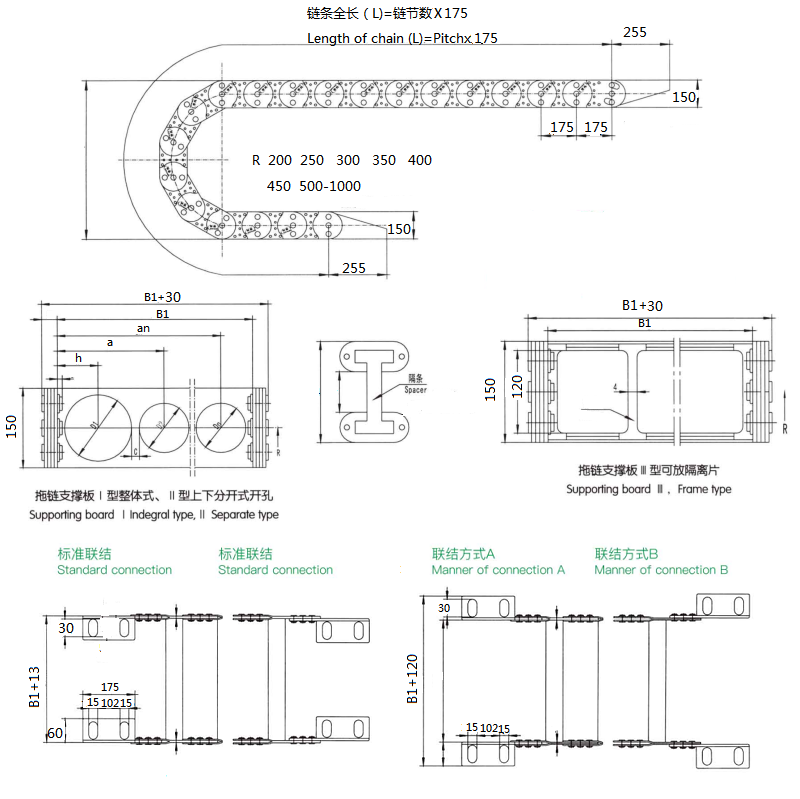

Structure Diagram
