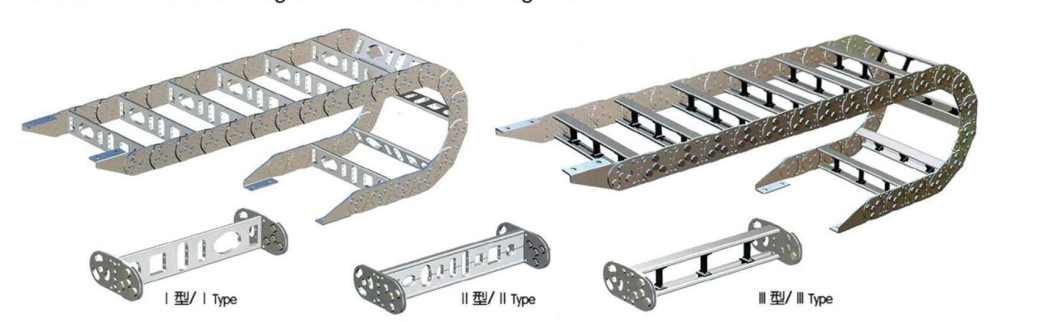

Steel cable drag chain is a metal cable carrier suitable for machine tools, foundries, and mobile construction equipment.. This carrier features a self-cleaning link design expels debris from critical areas of the link during operation. The Chain has specific Separators to avoid entanglement of the cables, the separators shall be Plastic/Metallic as per clients requirement and application.
Features
1) Varied designs from extremely small widths to extensively large widths
2) Wide range of bending radius are available
3) Robust & Sturdy design for Heavy Mechanical loads and hazardous operating conditions
4) Maintenance Free
5) Usability at very high temperature
6) Chain are fitted with special bolt arrangement thus resulting in long unsupported lengths
7) Sturdy Mounting Bracket
Packaging & Delivery
Stainless steel tank chain for cnc machine
Our regular packing is wooden box or carton or as per your demand.
Shipping can by sea by air by train or express company.

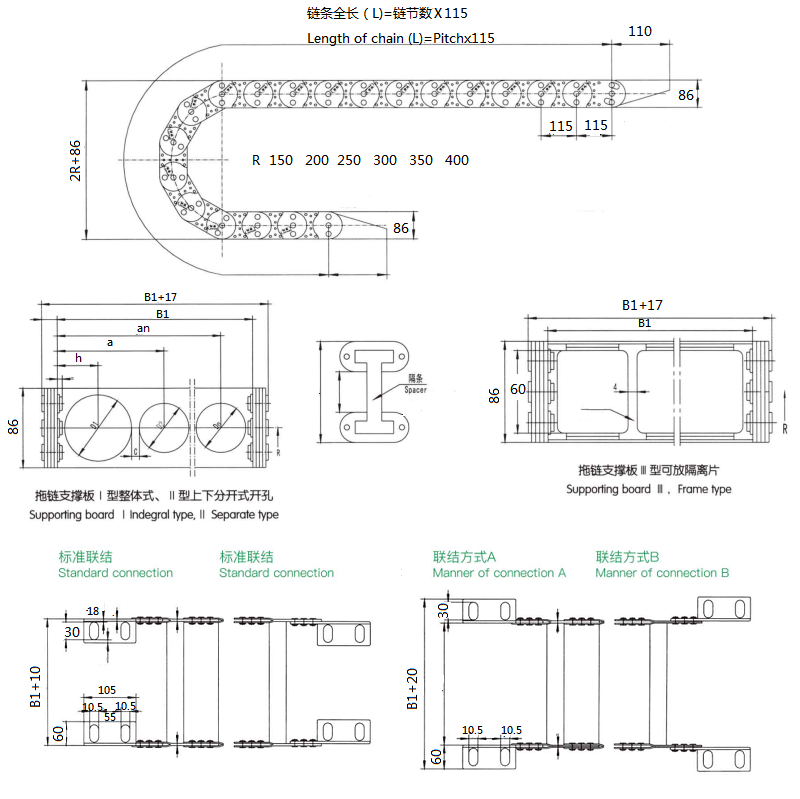

Structure Diagram
Application
1) Automated Car Washing System
2) Heavy Equipment wherein there in continuous moving automation and requires transfer of Energy
3 )Equipment wherein Hoses are used for Liquid, Gas Transfer i.e. Pneumatic or Hydraulic Hoses.
4) CNC Machines
5) Medical and Laboratory Equipment
6) Oil Rigs
7) Cranes, Forklift and various other Material Handling Equipment
