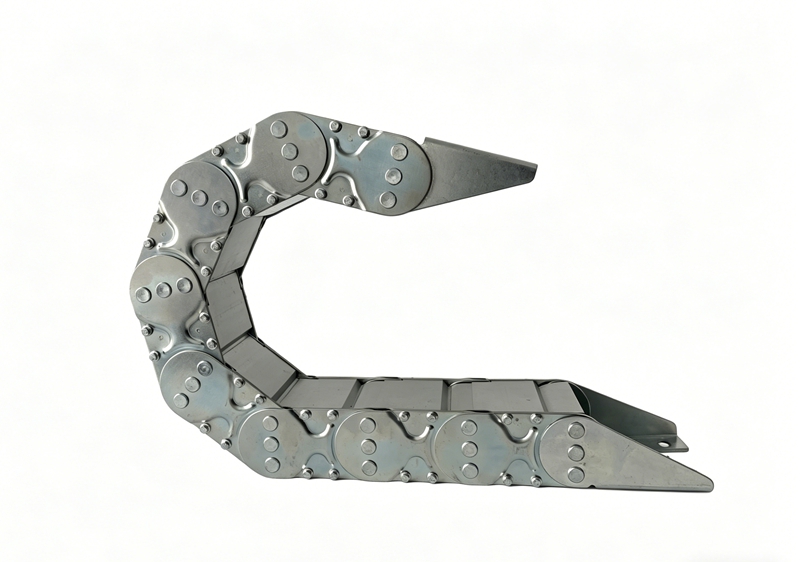

TLG100 Steel High Flexible Drag Chain Cable

The steel energy chain series is the best choice for heavy duty and harsh environment applications. Steel energy chains are available in galvanized steel and stainless steel, with drawn aluminium covers, steel rods or aluminium transverse links.

1. The maximum travel of TLG and TL steel tank chains is 40 meters, and they are suitable for all transmission modes. Can be lengthened and shortened at will. In addition, changing the bending radius can be obtained by changing the pin axis. The bending radius should be selected according to the maximum diameter of the cable and should reach 10 times the diameter of the cable. For small strokes, a smaller radius can be selected accordingly

2. The width of the support plate of the steel tank chain is 150mm to 800mm, and the interval between the holes is 10mm. The height of the chain plate is also the height of the support plate, which is determined by the maximum diameter of the cable.

3. When the machine tool is running to the maximum, if the width of the steel towline exceeds 300mm, and the length of the towline exceeds 4m, for stability reasons, you should consider choosing a towline with a larger size.

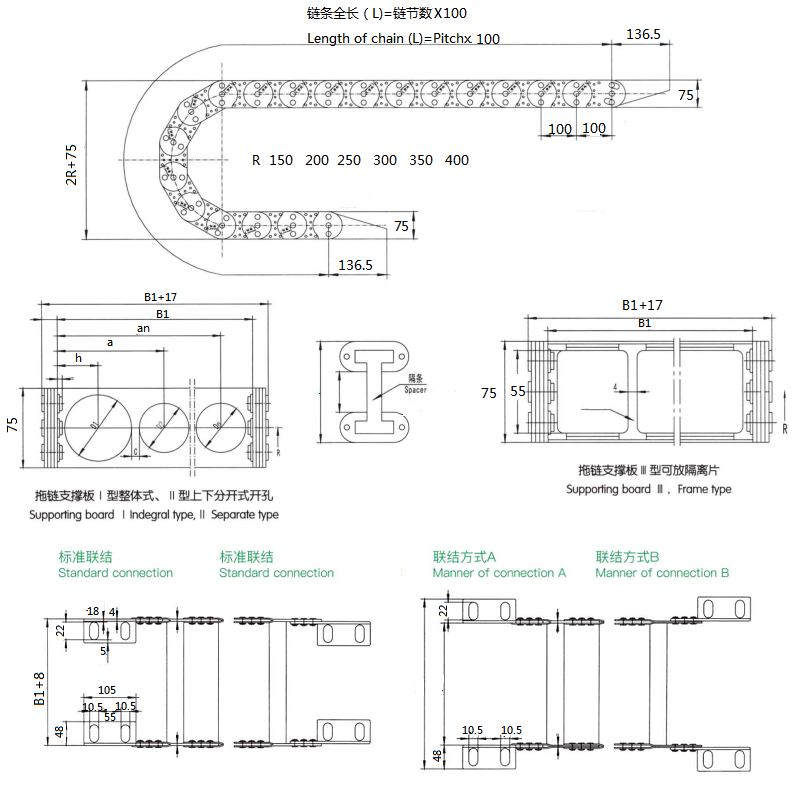

Structure Diagram
