Steel Drag Chain – Heavy Duty Metal Cable Carrier for Industrial Use

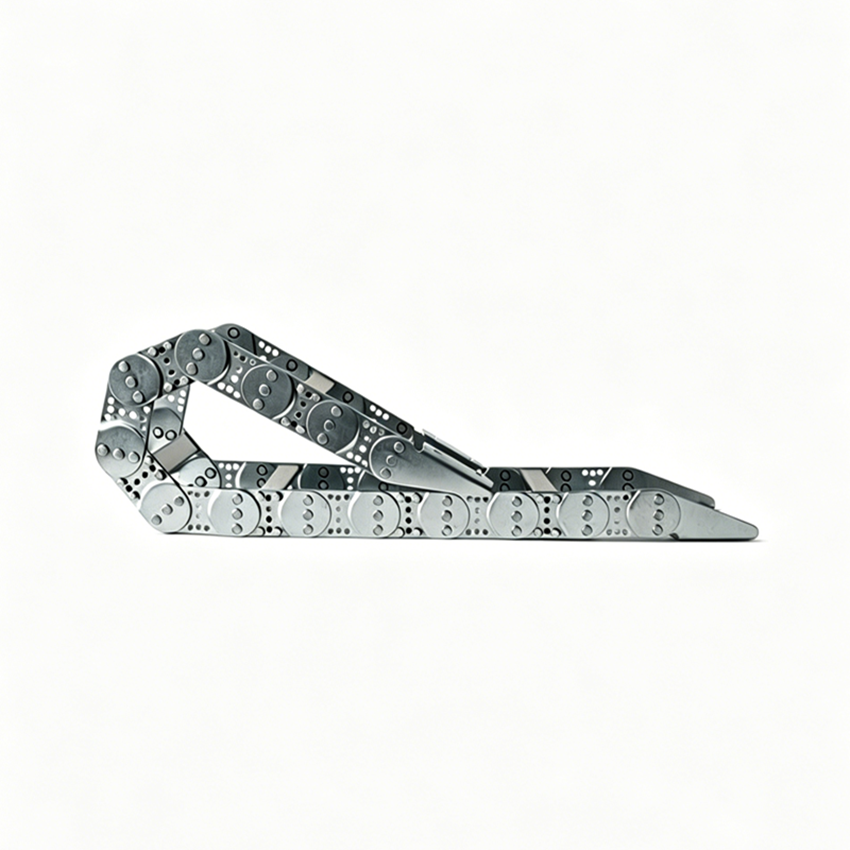

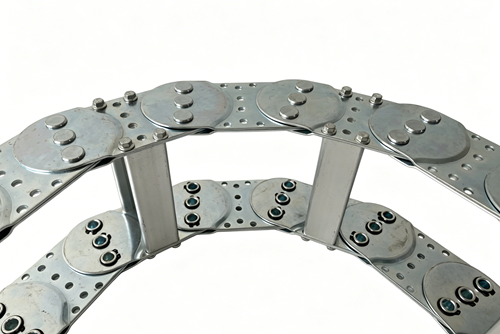

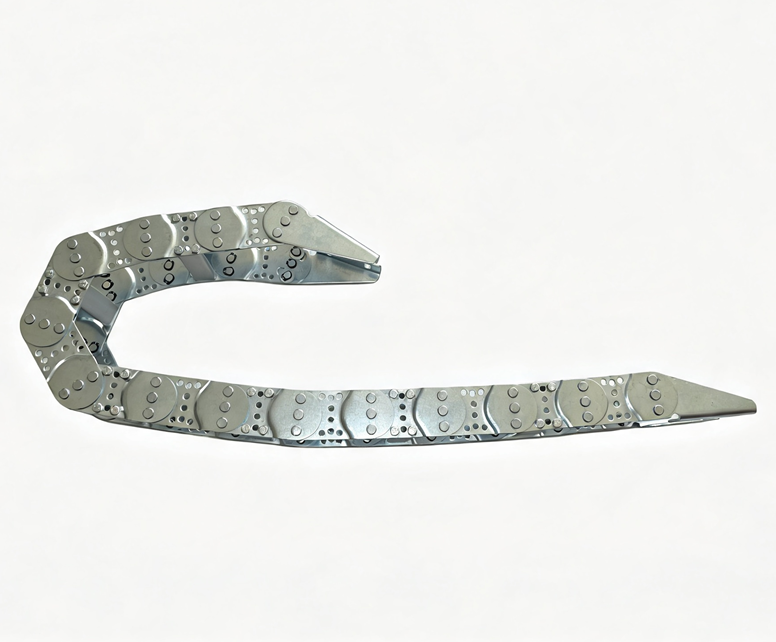

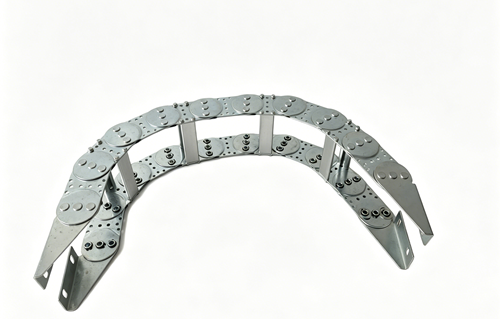

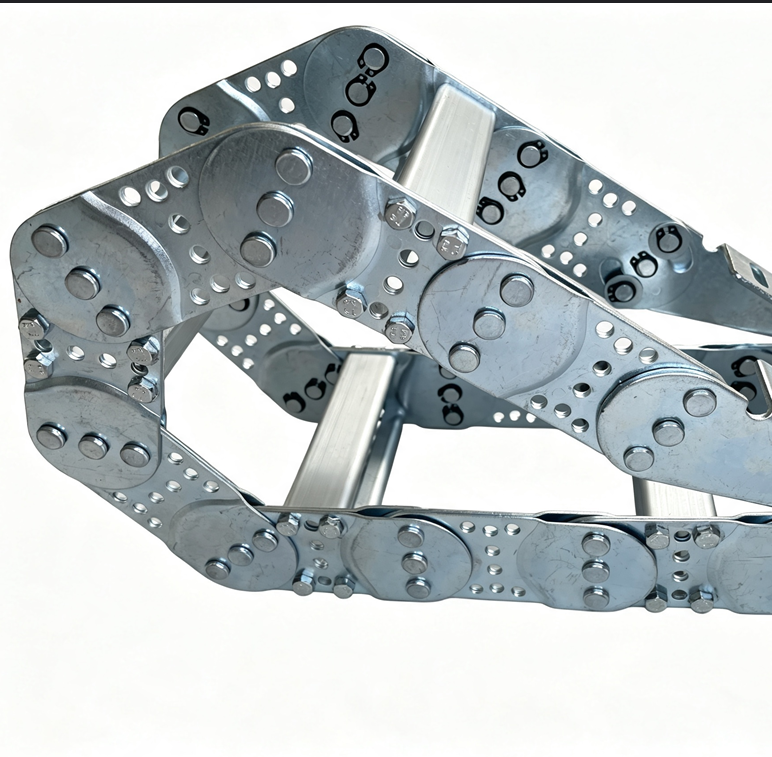

The theme of TL series drag chain is composed of chain plate (high quality steel plate chrome plating), support plate (aluminum alloy), shaft pin (alloy steel) and other parts, so that there is no relative movement or distortion between cable or rubber tube and tow chain. Chain plate after chrome plating treatment effect of the novel appearance, reasonable structure, high strength, rigid ametabolic, easy installation, use and reliable, easy to tear open outfit, especially the product USES the high strength wear resistant materials, alloy steel as the shaft pin, improve the wear resistance strength, bend more flexible, less resistance, reduce the noise, which can guarantee long time use not deformation, not prolapse. Due to its exquisite appearance, this product can greatly enhance the overall artistic aesthetic effect of machine tools and equipment, and enhance the competitiveness of China's machine tools and mechanical equipment in the international market.

Model Table

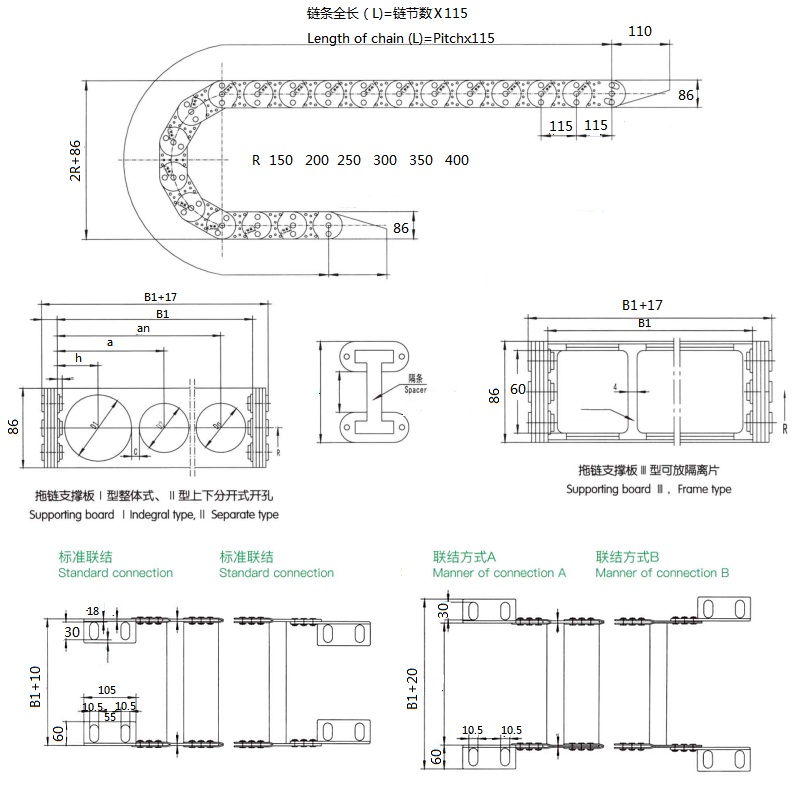

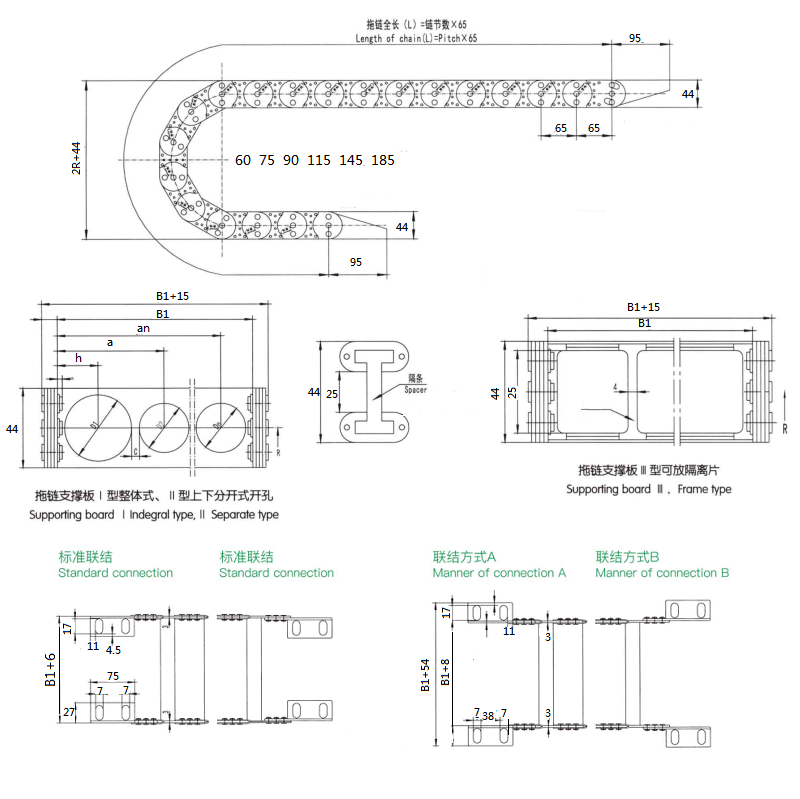

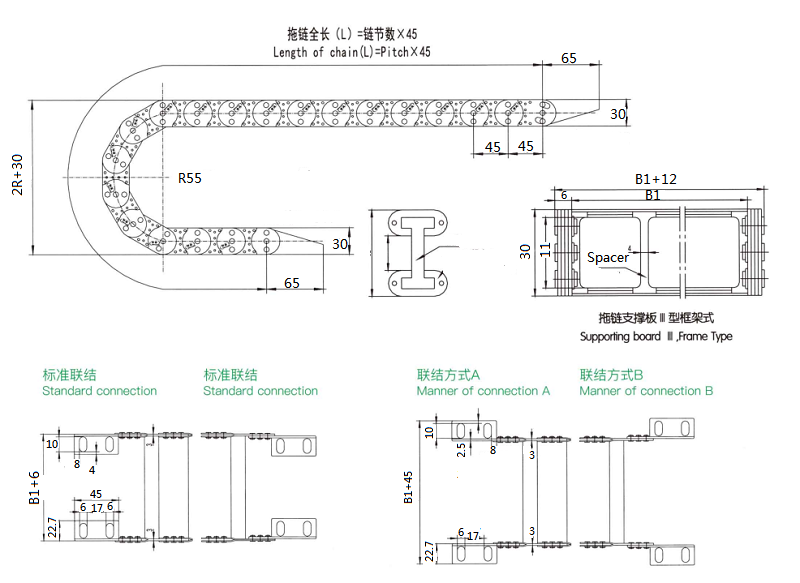

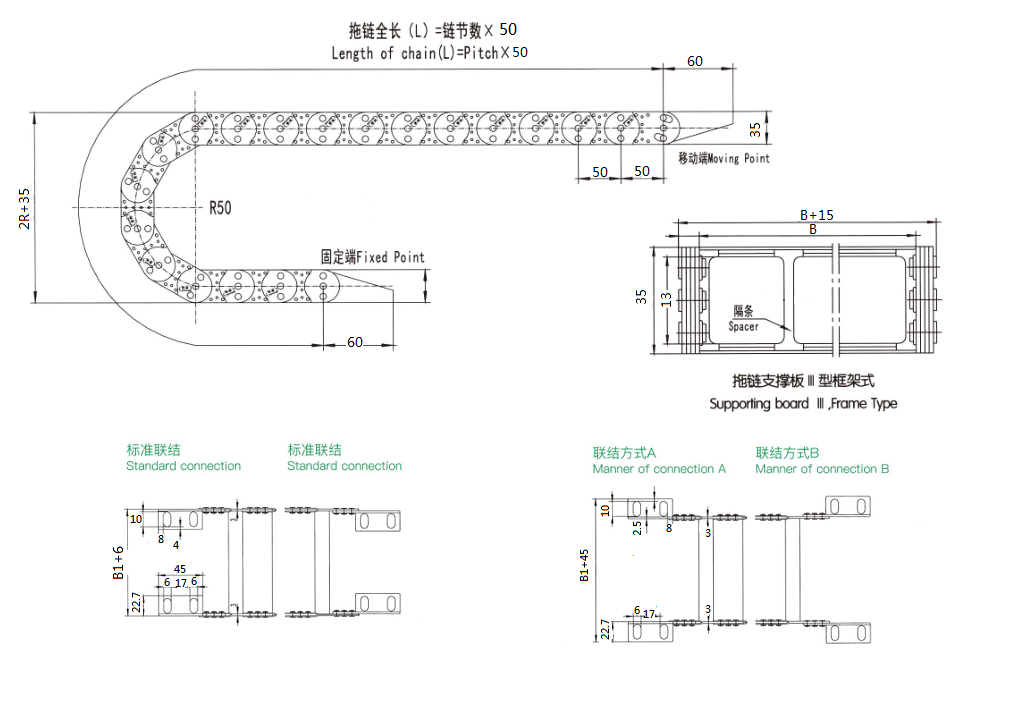

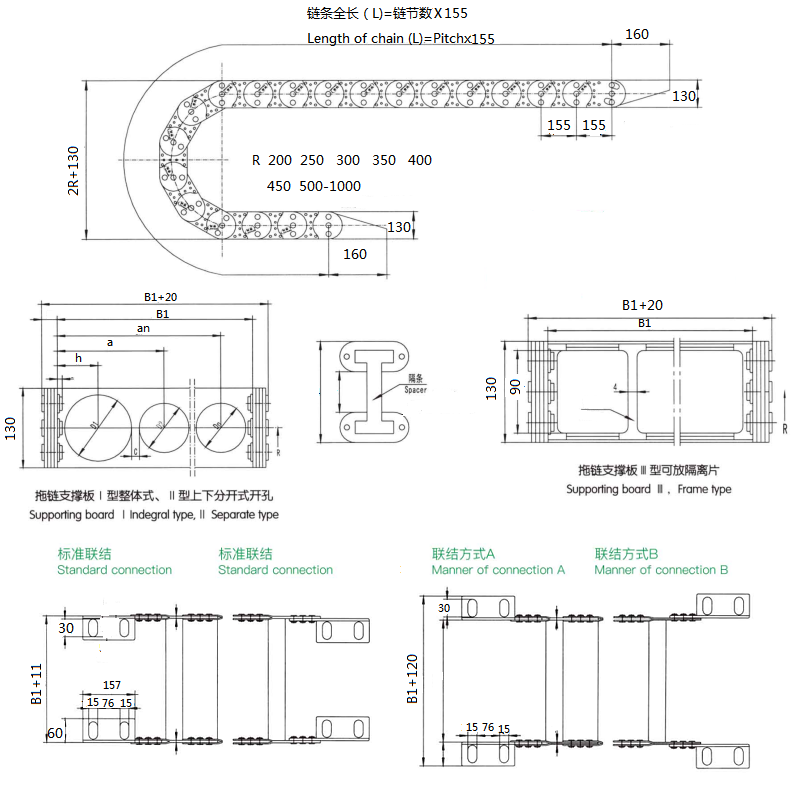

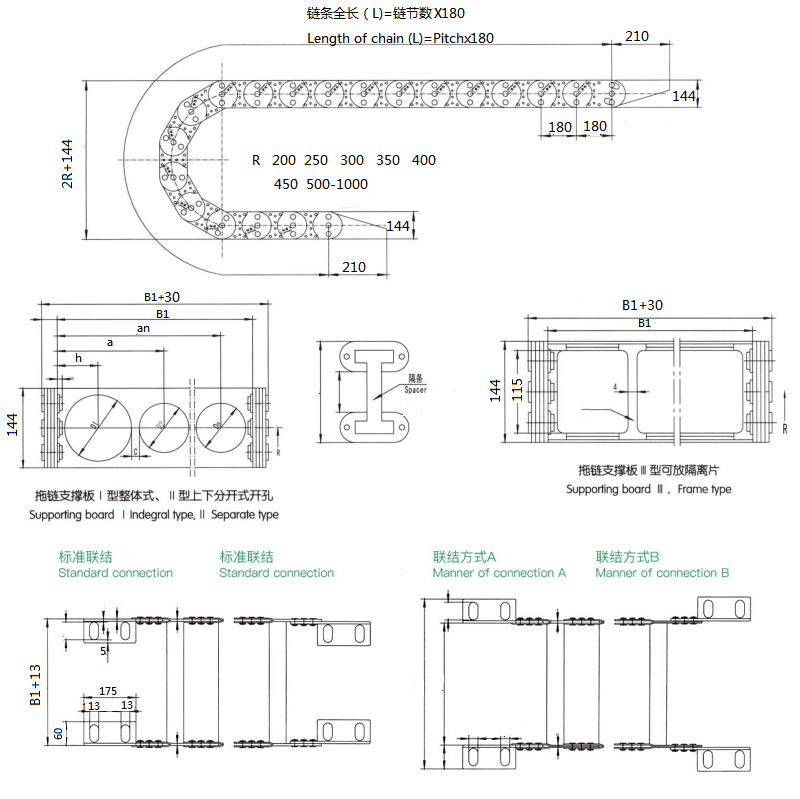

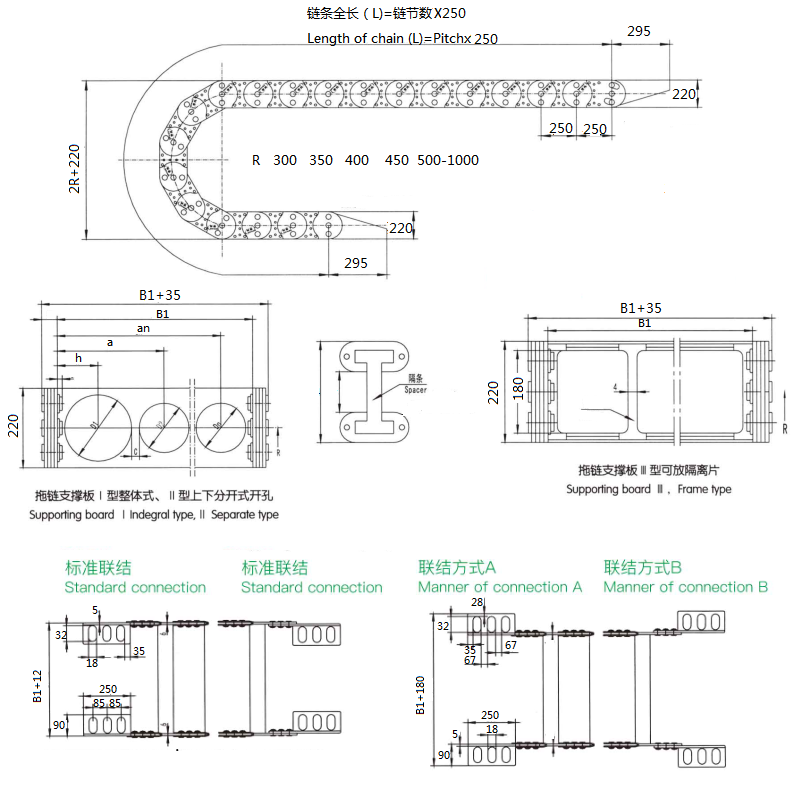

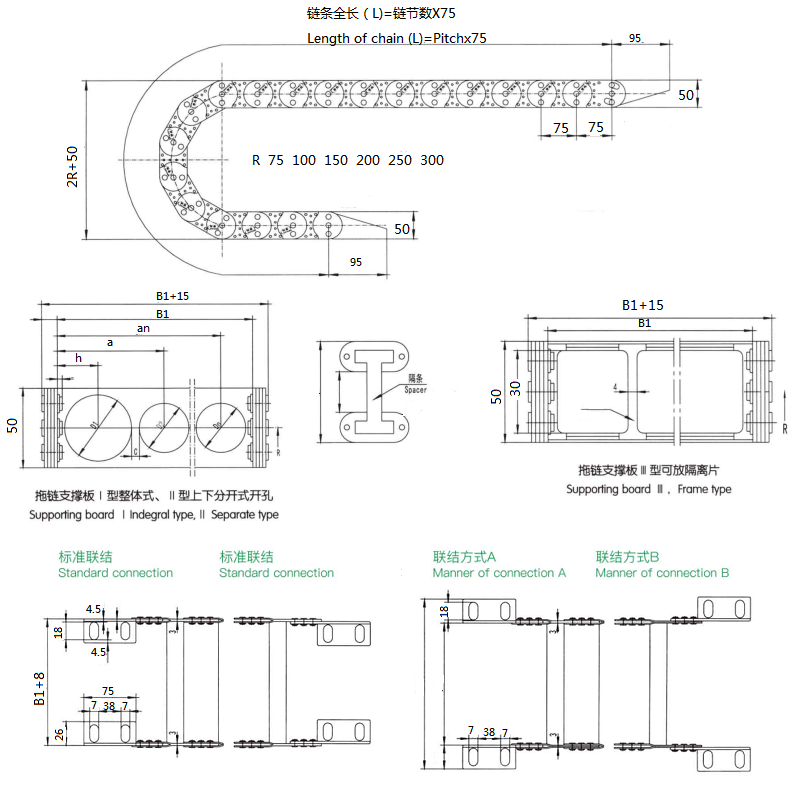

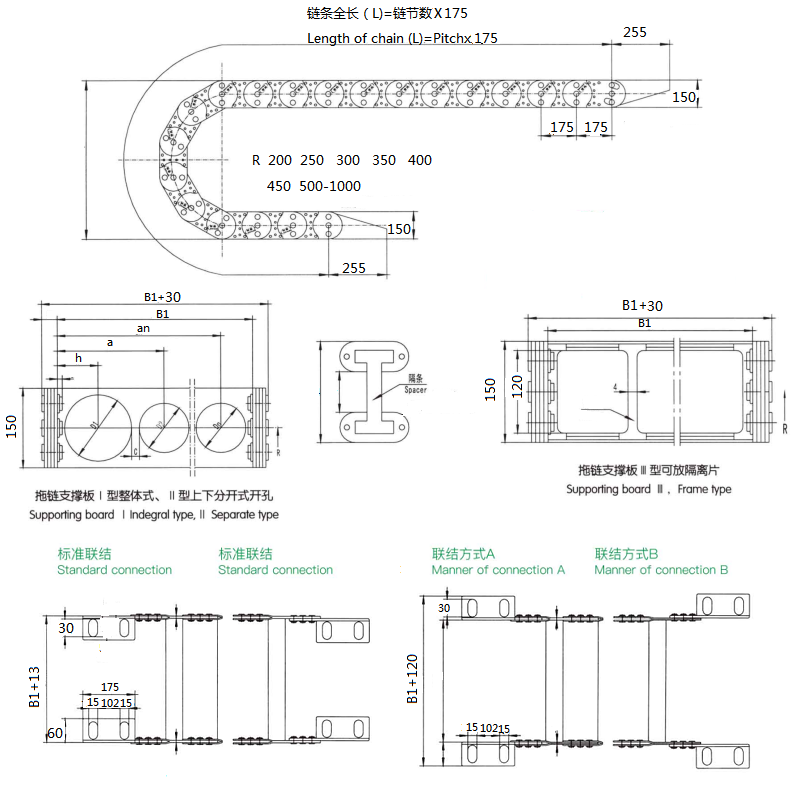

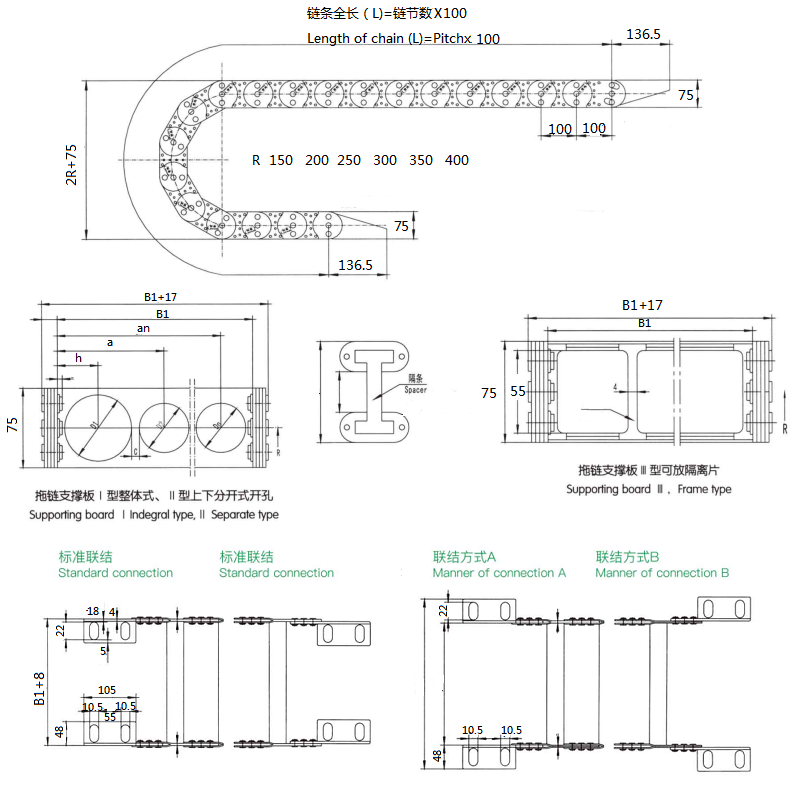

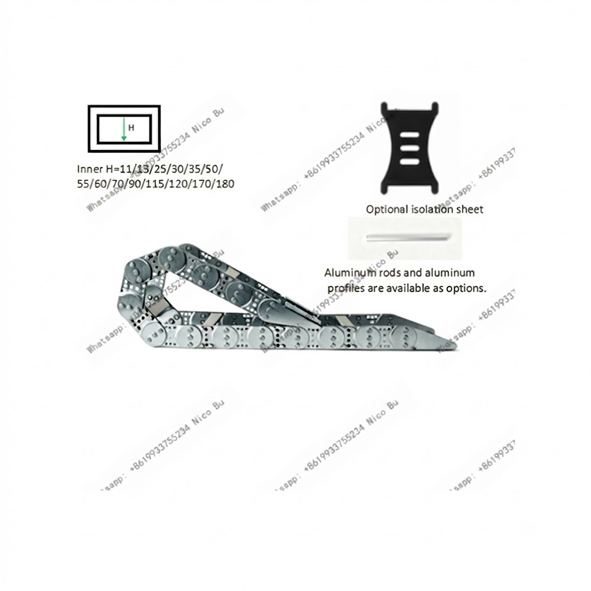

Structure Diagram

Primary Applications: Small-scale CNC engraving machines, PCB drilling machines, and laser marking machines. Features a fine pitch for smoother operation and a small bending radius, making it suitable for high-speed, light-load applications.

Primary Application Equipment: CNC lathes, grinding machines, and small machining centers. Slightly larger than the "45" series, it accommodates a greater number of cables while still maintaining flexibility.

Primary Application Equipment: Vertical Machining Centers, CNC Milling Machines, Laser Cutting Machines—balancing flexibility with load-bearing capacity.

Primary Application Equipment: Injection molding robots, palletizers, and automated production lines. Features a reinforced structure suitable for 24-hour continuous operation.

Primary Application Equipment: Gantry milling machines, large-scale CNC machines, and woodworking engraving machines; features a wider internal clearance capable of accommodating multiple cables and/or air hoses.

Primary Application Equipment: Heavy-duty Gantry Machining Centers, Floor-type Boring and Milling Machines. Features: Reinforced link plates with strong impact resistance.

Primary Application Equipment: 5-axis Machining Centers, Large-scale CNC Grinders

Primary Application Equipment: Large-scale Laser Cutting Machines, Waterjet Cutting Machines, Plasma Cutting Machines

Primary Application Equipment: Steel Mill Feed Carts, Metallurgical Furnace-Front Manipulators

Primary Application Equipment: Port ship unloaders, stacker-reclaimers, large cranes

Primary Application Equipment: Mining Excavators, Mobile Crushing Stations, Tunnel Boring Machines

Primary Application Equipment: Ship-to-Shore Container Cranes (STS), Grab Ship Unloaders

Primary Application Equipment: Shipyard Gantry Cranes, Large Floating Cranes, Heavy-Duty Material Handling Systems
