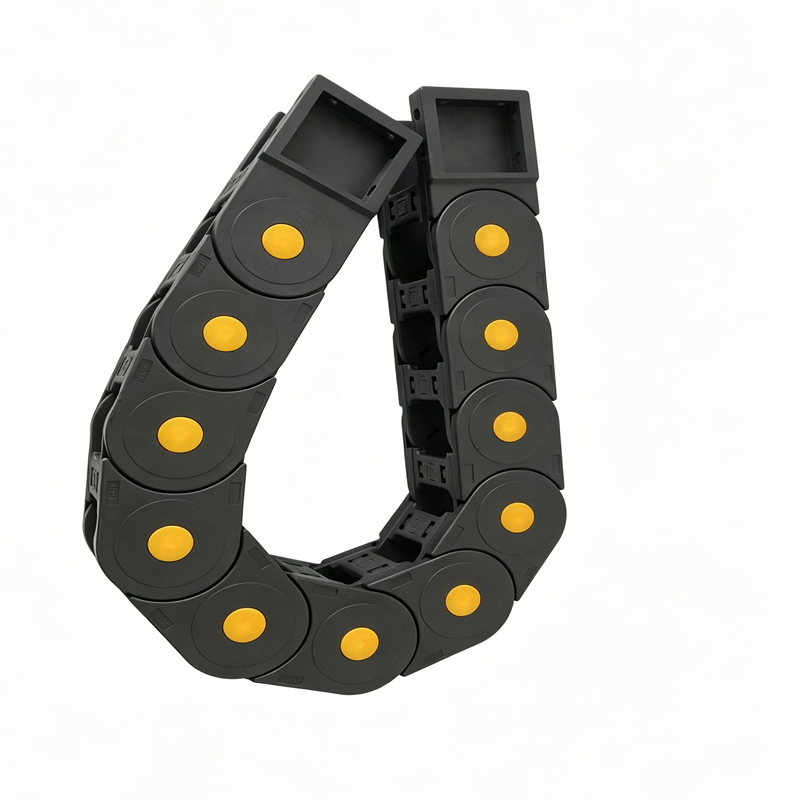

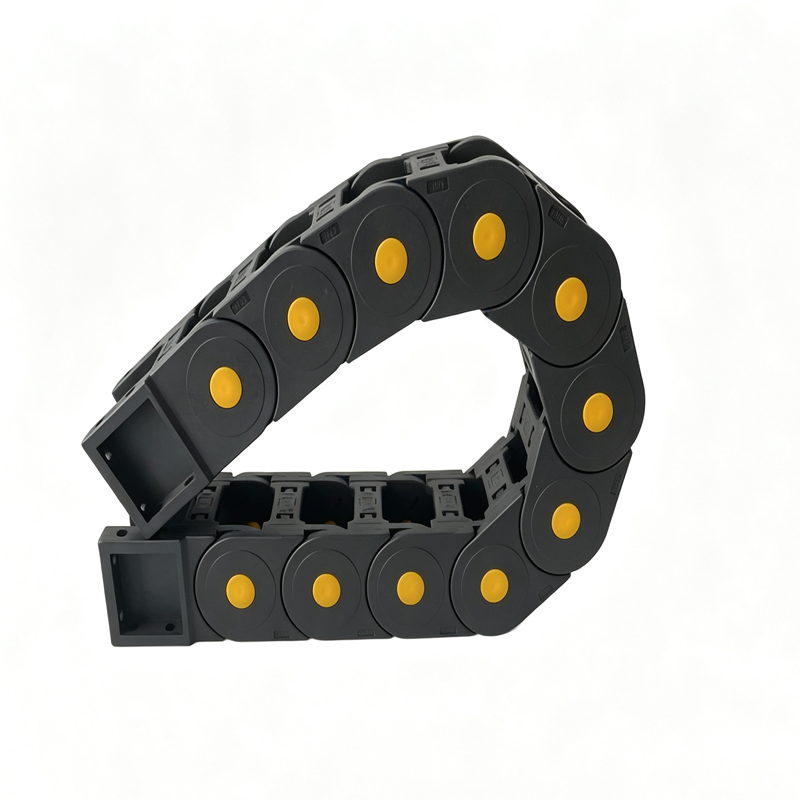

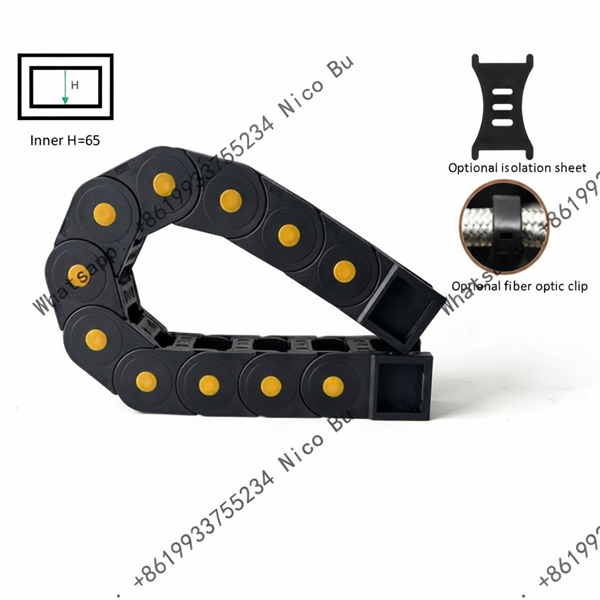

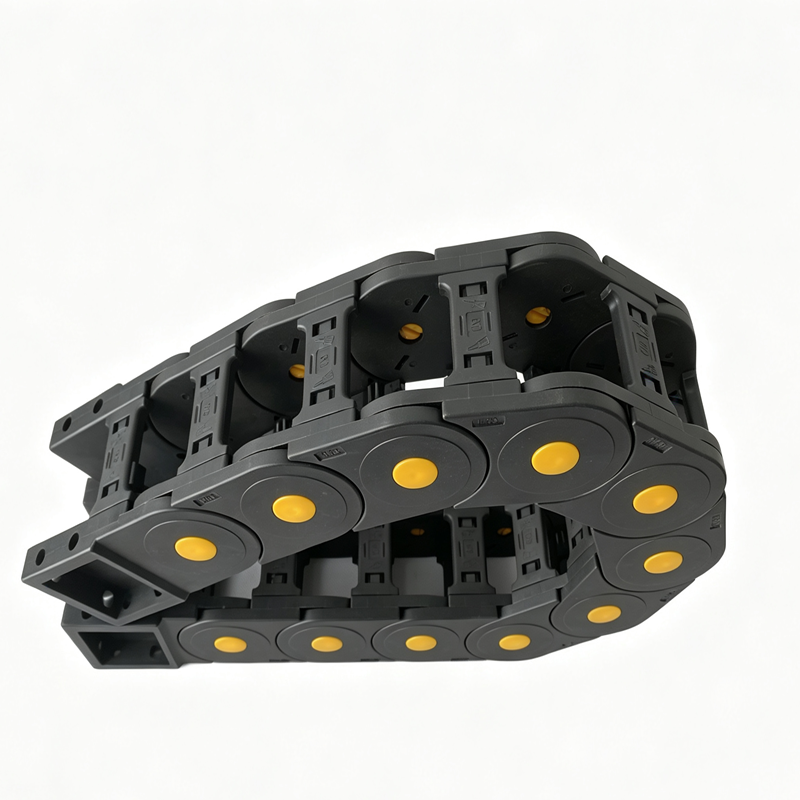

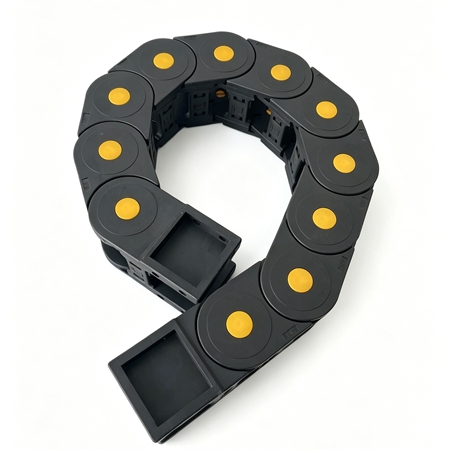

Economy Wire Carrier Drag Chain | 65mm Inner Height Plastic Cable Carrier

Keep your industrial automation organized and efficient with our Economy Wire Carrier Drag Chain (65 Series). Engineered to offer an optimal balance between performance and affordability, this drag chain is the ideal solution for protecting your critical wiring and hoses in standard-duty environments.

Featuring a spacious 65mm inner height, it provides ample room for complex wiring bundles common in large-scale CNC machinery and automation setups. Unlike heavy-duty reinforced alternatives built for extreme-load industrial tasks, this economy series is optimized for reliable daily performance, making it a smart, cost-effective choice for your CNC routers, milling machines, and general automated projects.

Salient features include less weight, low noise, non-conductive, easy handing, non-corrosive, easy of assembly due to snap fitting, maintenance free, available in custom lengths, separators to segregate cables/hoses, can be used for side by side in case number of cables is more, increases cable/hoses life, modular design simplifies cable/hose maintenance.

To specify a Moulded Plastic Cable Drag Chain, we require the following information:

1) Length of travel

2) Number and outside diameter of the cables/hoses to be installed

3) Required minimum bending radius of cables or hoses

Model Table

Structure Diagram

Application

Large-scale CNC Gantry Machining Center: Routes high-power spindle cables, multi-axis linear encoder cables, and cutting fluid lines.

 High-power Laser Cutting Machine: Protects laser fiber optic cables, auxiliary gas lines, and dust extraction lines.

 5-Axis Machining Center: Involves complex multi-axis movements, requiring energy chains that are flexible and torsion-resistant.

 Automatic Painting Line Conveyor Chain: Accompanies paint spray trolleys moving along a track, routing paint hoses, pneumatic lines, and control cables.

 Automobile Final Assembly Line: Centralized management of power supply and pneumatic lines located on accompanying tooling pallets.
