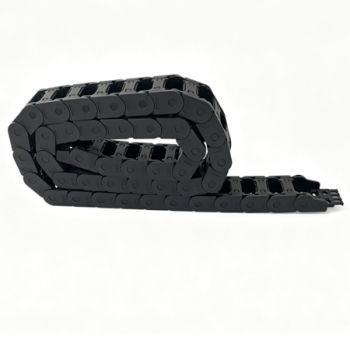

High-Performance Plastic Cable Drag Chain with Cable Comb Strain Relief Solutions

When designing complex automated machinery, industrial robots, and high-frequency reciprocating equipment carrying dense bundles of multi-core power lines, signal cables, and flexible tubing, preventing tension fatigue and wire displacement at connection points is a critical engineering challenge. At Yodel International Trade, we engineer high-performance plastic cable drag chain solutions integrated with professional cable comb end fixtures designed to deliver secure strain relief, precise internal organization, and reliable mechanical protection. As an essential component for demanding industrial automation, our comb-equipped plastic cable carriers provide the ideal combination of structural durability, secure cable anchoring, and organized wire management.

Engineering Excellence for Secure Cable Strain Relief

The plastic cable drag chain equipped with comb plates is expertly crafted for applications where incoming and outgoing cables require absolute anchoring to prevent pull-out forces from damaging internal terminals. Unlike standard mounting brackets, the integrated cable combs function as robust end-mounted strain relief fixtures. These specialized comb plates securely clamp and space out individual cables and hoses right at the moving and fixed connection points, eliminating shear stress, kinking, and friction wear where wires enter the chain links.

Built from premium-grade reinforced engineering polymers, these flexible cable tracks combine high-strength nylon links with modular comb structures that accommodate various cable diameters. This ensures that heavy power lines and delicate control cables remain perfectly organized and tension-free throughout millions of high-speed reciprocating cycles.

Key Product Attributes & Technical Parameters

• Product Classification: Strain Relief Series Plastic Cable Drag Chain with Cable Comb

• End Fixture Design: Integrated comb plates functioning as robust end-mounted strain relief fixtures to securely anchor and organize cable bundles.

• Strain Relief & Anti-Pull Protection: Prevents tension stress, cable slippage, and terminal pull-out at the moving and fixed connection points.

• Material Composition: High-strength reinforced engineering nylon designed for exceptional wear resistance, impact strength, and long-term fatigue tolerance.

• Modular Customization: Comb slots easily tailored to match specific outer diameters of power cables, pneumatic hoses, and signal lines.

Why Choose Yodel's Plastic Cable Drag Chain with Cable Comb?

1. Superior Strain Relief Security: End-mounted comb plates firmly clamp incoming cables, neutralizing pull-out forces and protecting internal terminal connections.

2. Organized Wire Separation: Keeps individual multi-core cables and pneumatic hoses neatly separated, preventing crossing friction and abrasion.

3. High-Strength Durability: Reinforced engineering nylon construction withstands continuous mechanical vibration and high-frequency movement.

4. Optimized Operational Lifespan: Eliminates tension stress at critical flexing points, significantly reducing unexpected maintenance downtime and cable failure.

Application Fields

The plastic cable drag chain with integrated cable combs is widely deployed across demanding automated industries, including:

• High-speed industrial robots and articulated robotic arms

• Automated CNC machining centers and moving gantry systems

• Multi-axis automated assembly transfer lines and packaging machinery

• Special-purpose automated machinery requiring rigorous cable anchoring

• Medical and laboratory automation equipment with dense wiring harnesses

Contact our engineering sales team today to discuss custom comb slot configurations, specific inner dimensions, or bulk procurement options for your industrial automation project.
