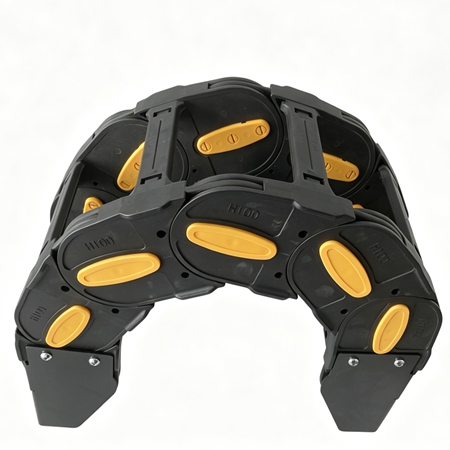

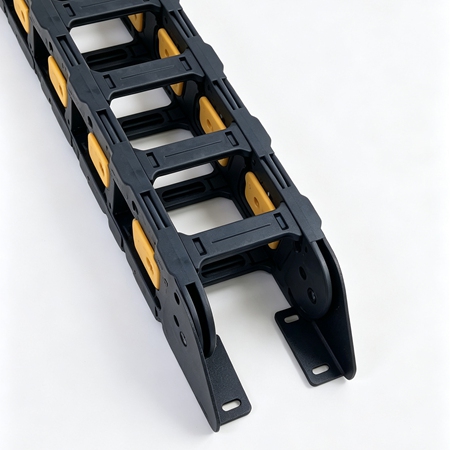

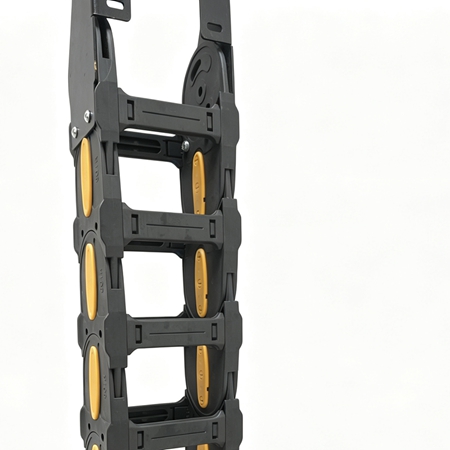

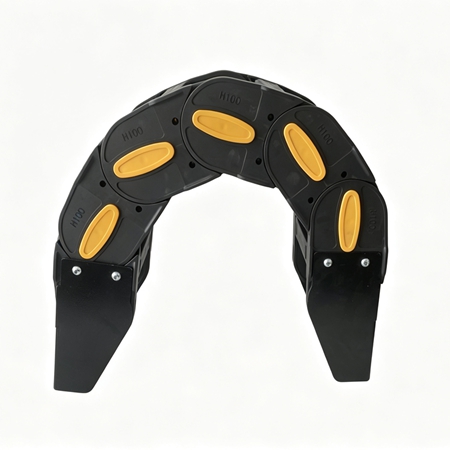

Large Drag Chain 100 – High-Capacity Nylon Drag Chain

Color: Black with colorful button

Working temperature: -40-130 ℃

Features: wearable,elastic,fire proof,self-lubricating

How to identify good products:

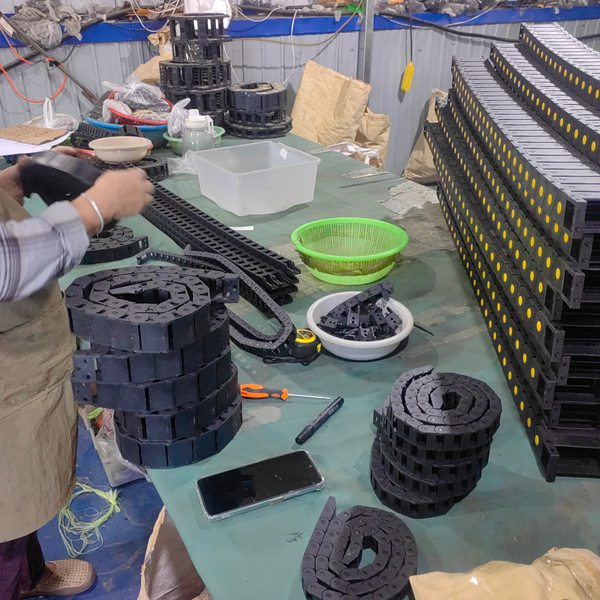

Slide manually and see if it is smooth enough; Check the surface, see if it is flat and free of obvious burrs; Smell, it will smell pungent when using recycled material. The pure material will not smell bad; Direct factory or not, a direct factory can provide better product service and price

• 100 Series Economy Standard: A cost-effective, standard-duty cable chain drag engineered to provide reliable wire management for large-scale CNC machinery and heavy automated systems without the premium cost.

• Extra-Large 100mm Inner Height: Features a massive 100mm inner height, offering generous and spacious room for the organized routing of heavy electrical cables, thick power lines, and multiple pneumatic hoses.

• Reliable Engineering Plastic: Molded from quality-grade engineering plastic, offering solid wear resistance, durability, and structural flexibility for routine heavy industrial operations.

• Tangle & Wear Protection: Effectively isolates internal wiring from mechanical friction, entanglement, and bending stress, significantly extending the service life of your cables.

• Versatile Industrial Use: An ideal, budget-friendly choice for large CNC routers, heavy-duty milling machines, plasma cutters, and automated production lines where reliable daily performance is required.

Model Table

Structure Diagram

Application

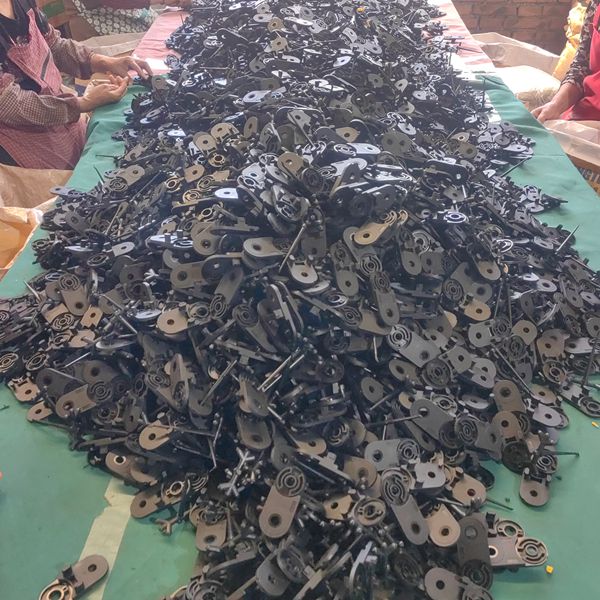

Nylon Bridge Type Plastic Cable Drag Chain can be assembled and disassembled according to the needs of customers to facilitate the classification of the cables of the machine. The Nylon Bridge Type Plastic Cable Drag Chain uses Injection molding machine produced, the whole work flow for Nylon Bridge Type Plastic Cable Drag Chain can be controlled exactly by producing parameter.

 Tow chain is divided into bridge tow chain, fully closed tow chain and semi-closed  tow chain according to the different use environment and use requirements.

Bridge type drag chain is used in reciprocating motion, which can play a role in traction and protection of built-in cables, oil pipes, air pipes, water pipes, etc.  Drag chain has been widely used in CNC machine tools, electronic equipment, glass machinery, injection molding machine manipulator, handling machinery, plastic machinery,  lifting equipment, woodworking machinery, automobile industry, industrial vehicles, metal processing machines, machine tools, casting machinery, port equipment and other industries.
