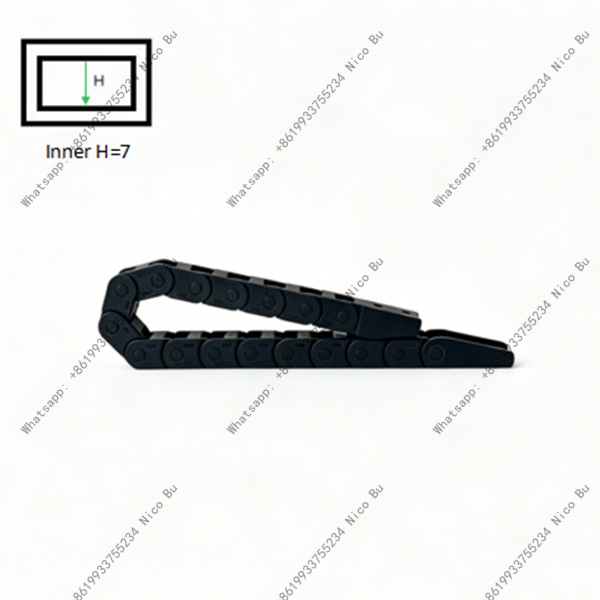

Small Drag Chain 7x7mm Mini Plastic Cable Carrier for 3D Printer

Compact Mini Size: Designed with an inner dimension of 7x7mm, this small drag chain provides neat and efficient cable routing for space-constrained devices.



Premium Plastic Material: Molded from high-grade reinforced nylon, offering excellent wear resistance, high elasticity, low noise, and long-lasting durability.



Tangle & Wear Prevention: Effectively protects wires and hoses from snagging, friction, and premature wear during high-speed reciprocal motion.



Flexible Movement: Bends smoothly in one direction, ensuring seamless tracking with moving components without placing extra strain on your wiring harness.



Applications



Micro PCB Drilling Machines: Protects extremely fine signal lines and prevents cable interference during high-speed drilling operations.



Desktop 3D Printers: Mounted on the X/Y axes; ideal for lightweight cabling and high-frequency motion, where the 7mm internal height provides a perfect fit.



Micro Medical Diagnostic Equipment: Such as small centrifuges and sample transfer stages, requiring low noise and minimal friction.



Automated Laboratory Pipetting Workstations: Characterized by compact spaces and a limited number of cables; requires a cable chain with a small footprint and high flexibility.



Small Laser Marking Machines: Suited for light-load, high-speed scenarios; the Series 7 helps reduce the overall weight of the equipment.

Model Table

• Perfect Compatibility: Specifically sized for DIY cable management upgrades on the Ortur Laser Master 2 (LM2) laser engraver and similar small CNC machines.

• Optimal 7x7mm Inner Size: Compact 7 x 7mm internal dimensions provide a neat, snug fit for stepper motor wires and laser control cables without adding unnecessary bulk.

• Reduce Wear & Tangle: Effectively prevents cables from snagging on the frame, catching on materials, or wearing out prematurely during high-speed engraving and cutting.

• Flexible & Durable: Made of high-quality reinforced nylon/plastic, offering high elasticity, wear resistance, low noise, and smooth movement across the full axis range.



• Easy Installation: Lightweight and flexible design allows for quick integration, usually paired with custom 3D-printed mounts (such as stepper or frame brackets) for a clean, professional setup.

• Why Choose Our 7x7 Drag Chain?

  • Precision Fit: With a 7x7mm inner cross-section, it is lightweight and appropriately scaled for the wiring harness of compact desktop lasers like the Ortur LM2, avoiding the heavy drag caused by oversized carriers.

  • Enhanced Longevity: By routing your stepper motor and laser module cables neatly through the carrier, you eliminate friction and tension spikes, significantly extending the lifespan of your wiring.

  • Smooth Motion: Engineered to bend smoothly in one direction, it flexes naturally with the movement of the gantry, ensuring zero interference with your machine's working area.

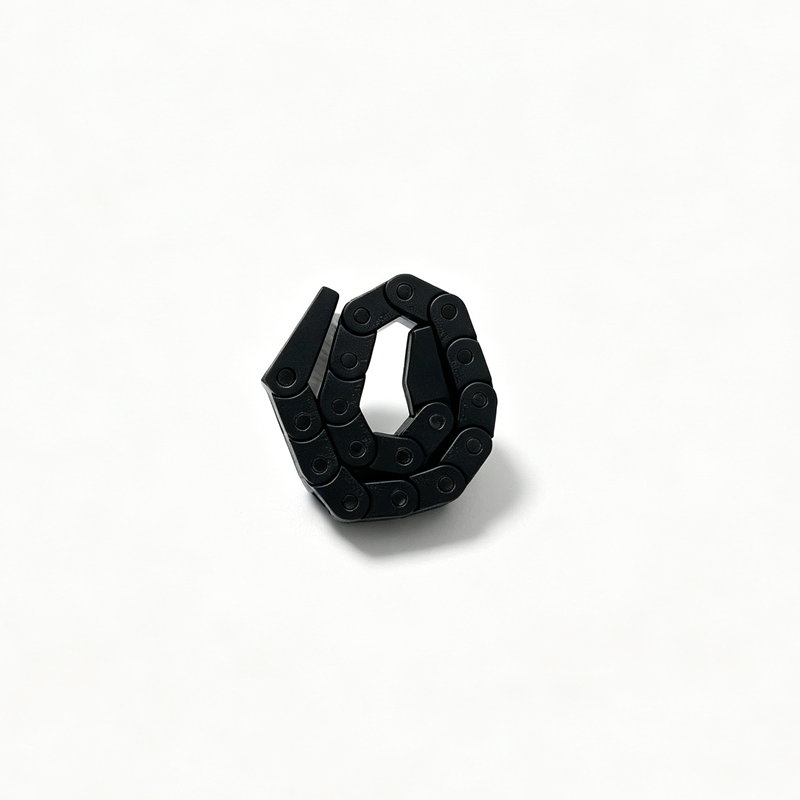

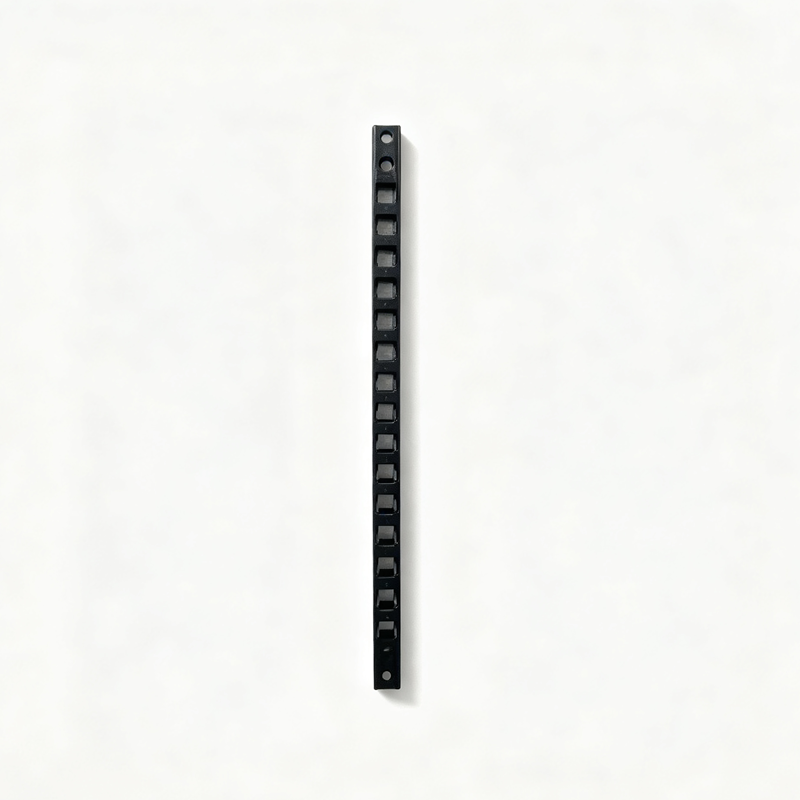

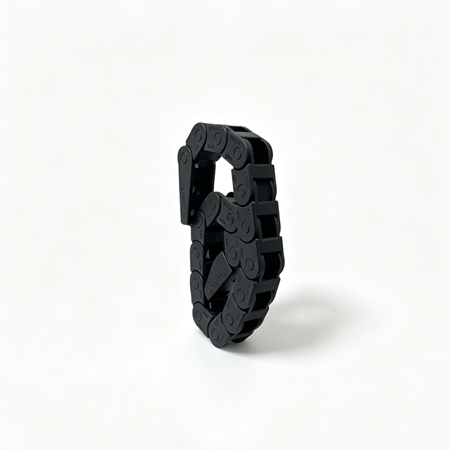

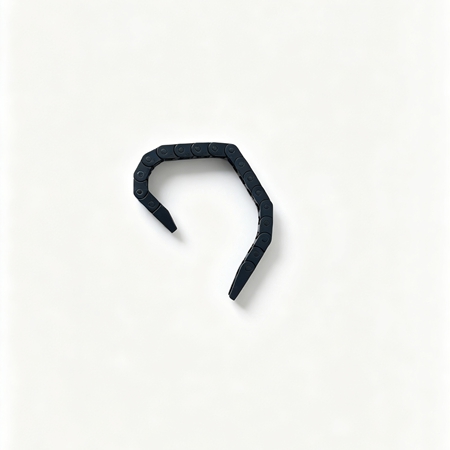

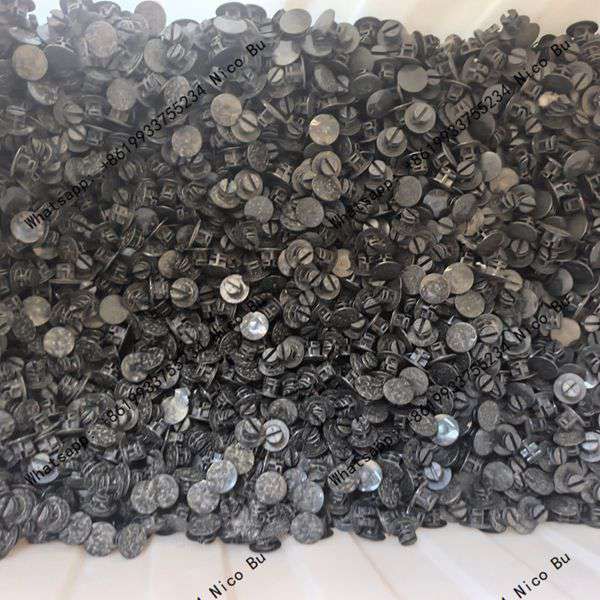

Parts Display



























































































The Mini Drag Chain 7 is the most compact model in the nylon drag chain series, featuring an internal height of 7 mm and selectable internal widths ranging from 7 to 15 mm, with a minimum bending radius as small as R18. Constructed from reinforced PA66 material, it is exceptionally lightweight yet offers excellent resistance to abrasion and oil. Its bridge-type open structure allows for the rapid opening of the crossbars on both sides, facilitating the convenient installation or replacement of small cables, pneumatic tubes, and signal wires.
