Heavy-Duty Steel Cable Drag Chain: The Ultimate Enclosed Cable Carrier Solution

When operating demanding industrial machinery in harsh environments, protecting critical power cables, hydraulic lines, and pneumatic hoses from abrasive contaminants is paramount. At Yodel International Trade, we engineer high-performance steel cable drag chain solutions designed to withstand extreme workshop conditions, heavy mechanical stress, and flying hot metal chips. As an essential component for modern heavy manufacturing, our enclosed-type metal cable carriers provide the complete structural shielding, durability, and reliable wire management required by global industrial operations.

Comprehensive Product Overview & Engineering Excellence

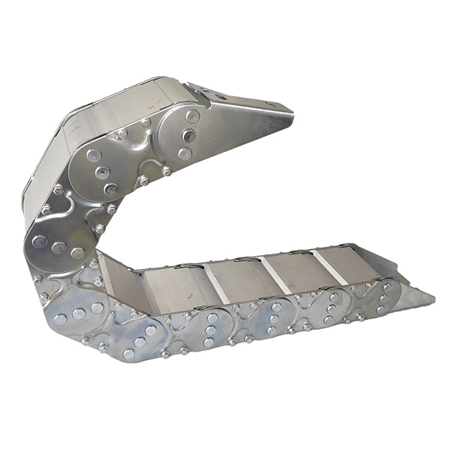

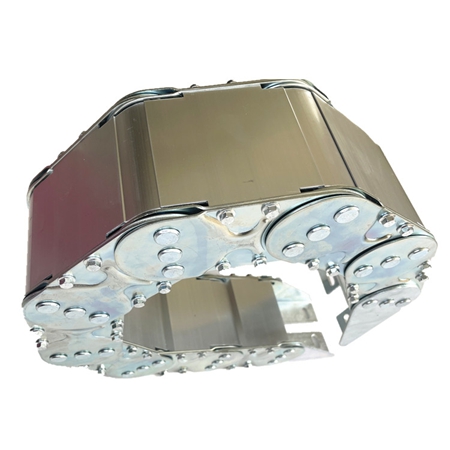

The enclosed-type steel cable drag chain series is expertly crafted for applications where total physical shielding is mandatory. Unlike open bridge-type configurations, fully enclosed metal cable tracks prevent welding sparks, hot metal shavings, coolants, and dirt from penetrating the cable bed. This prevents premature wear, insulation breakdown, and costly machinery downtime. Built from robust, high-grade structural steel materials, these enclosed carriers deliver exceptional load-bearing capacity and anti-sag performance over long-travel operating spans.

Designed for heavy-duty industrial environments such as large-scale CNC milling centers, metal smelting facilities, heavy-duty stamping presses, and automated fabrication lines, these chains combine maximum mechanical protection with smooth articulation. The fully enclosed armor raceway design shields sensitive electrical and fluid lines while maintaining steady, low-friction movement during high-speed reciprocating cycles.

Key Product Attributes & Technical Parameters

• Product Classification: Enclosed-Type Heavy-Duty Steel Cable Drag Chain

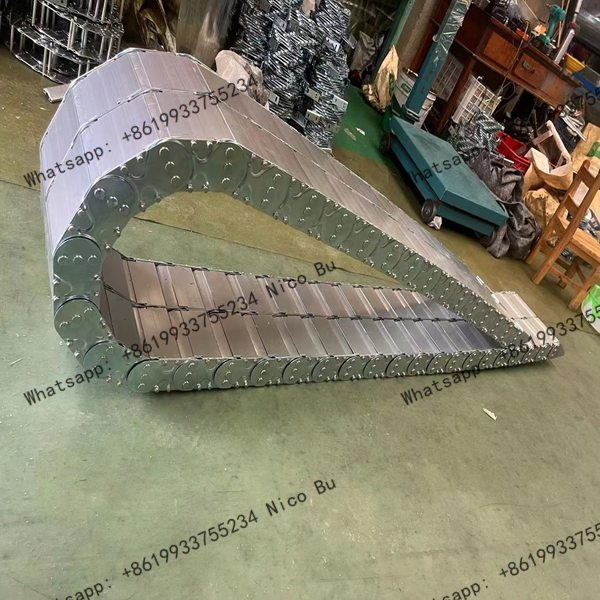

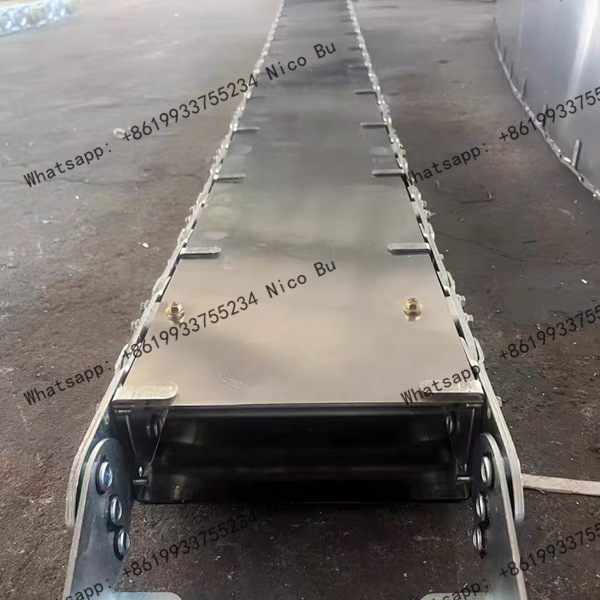

• Shielding Architecture: Fully enclosed metal cover plates protecting internal lines from hot chips, sparks, and fluid splashes.

• Inner Height Options: Engineered across diverse sizing brackets to accommodate heavy-duty multi-cable bundles and thick hydraulic hoses.

• Internal Width Customization: Scalable internal width configurations to support complex, high-density industrial wire harnesses.

• Structural Material: High-strength structural steel links and covers designed for maximum impact resistance and anti-sag endurance.

• Operational Adaptability: Smooth-sliding joint articulation built to handle aggressive acceleration and long-travel industrial axes.

Why Choose Yodel's Enclosed Steel Cable Drag Chain?

1. Total Contaminant Shielding: The solid enclosed design completely blocks hot metal chips, grinding dust, and corrosive liquids from damaging internal cables.

2. Superior Structural Rigidity: Engineered to support heavy payloads over extended operating spans without bending fatigue or structural sagging.

3. Enhanced Safety & Longevity: Extends the service life of expensive hydraulic hoses and electrical control lines in aggressive workshop environments.

4. Global Industrial Trust: Trusted by heavy equipment builders worldwide for rugged, dependable cable and hose protection systems.

Application Fields

The enclosed steel cable drag chain is widely deployed across demanding heavy industries, including:

• Heavy-duty CNC metal cutting and laser machining centers

• Steel mills, metal casting, and forging plants

• Large gantry milling machines and automated transfer lines

• Shipyards and heavy lifting port machinery

• Industrial stamping and press automation systems

Contact our engineering sales team today to discuss custom dimensions, specific bending radii, or specialized bracket configurations for your machinery project.

FAQ

• Q: What is the main characteristic of the TLG series steel drag chain? A: The TLG series is a heavy-duty fully enclosed steel drag chain designed to provide maximum protection for cables and hydraulic hoses against hot chips, heavy dust, sparks, and fluid splashes in harsh industrial environments.

• Q: What application scenarios are best suited for this enclosed metal cable carrier? A: It is widely used in large CNC machine tools, heavy-duty processing machinery, and automated production lines where strict isolation from debris and flying metal chips is required.

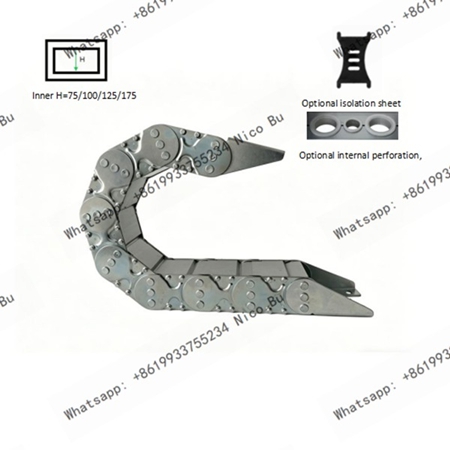

• Q: Can the internal width and height be customized? A: Yes, we offer flexible sizing options for inner heights and internal widths to accommodate various cable and hose bundle dimensions for your specific machinery.

• Q: Does the fully enclosed steel drag chain support internal partition separators? A: Yes, internal partition separators can be included inside the enclosed channel to systematically organize multiple cables and hoses, preventing friction and wear during operation.

Structure Diagram
