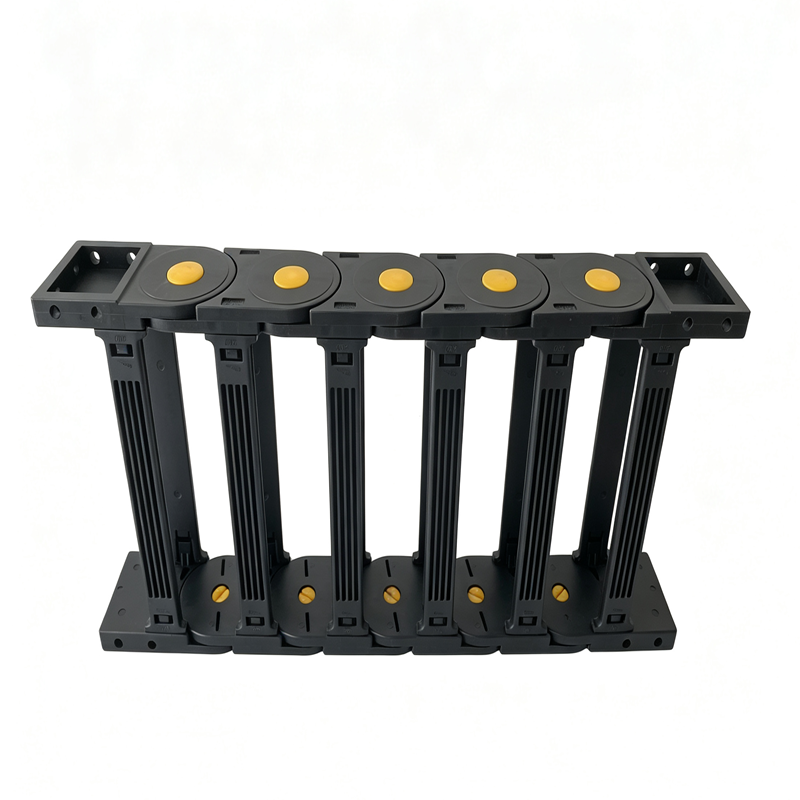

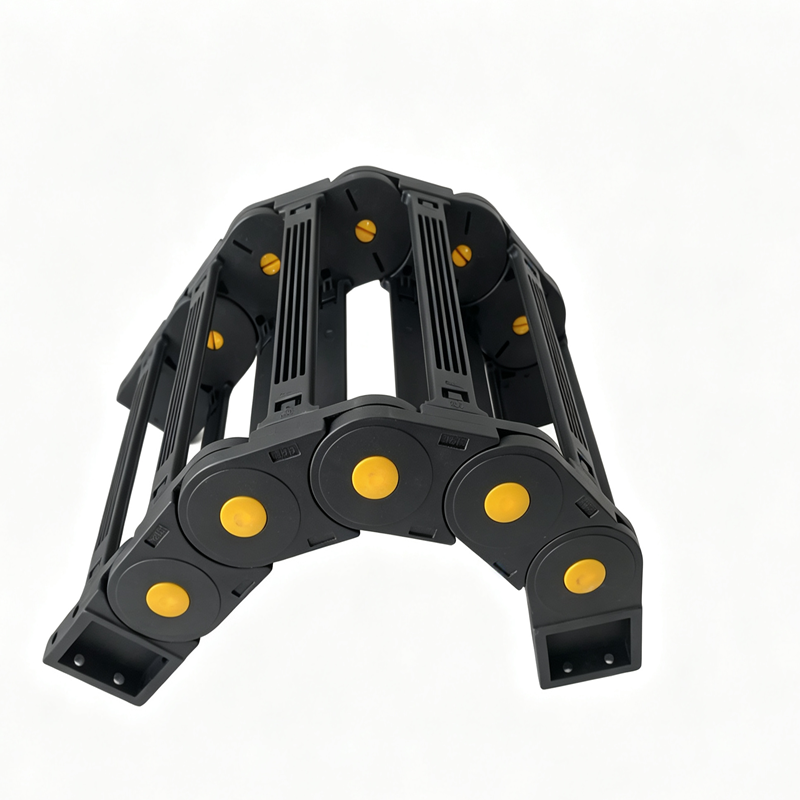

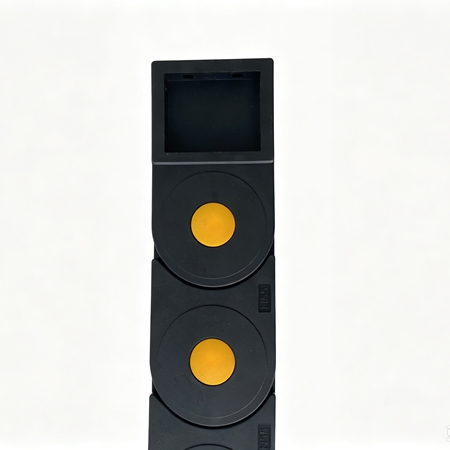

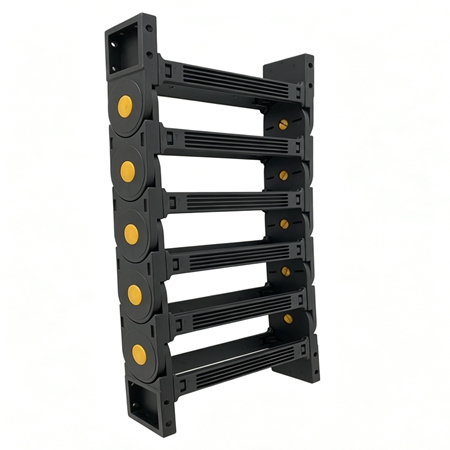

Economy CNC Drag Chain 55x100 | Standard Plastic Cable Carrier (55 Series)

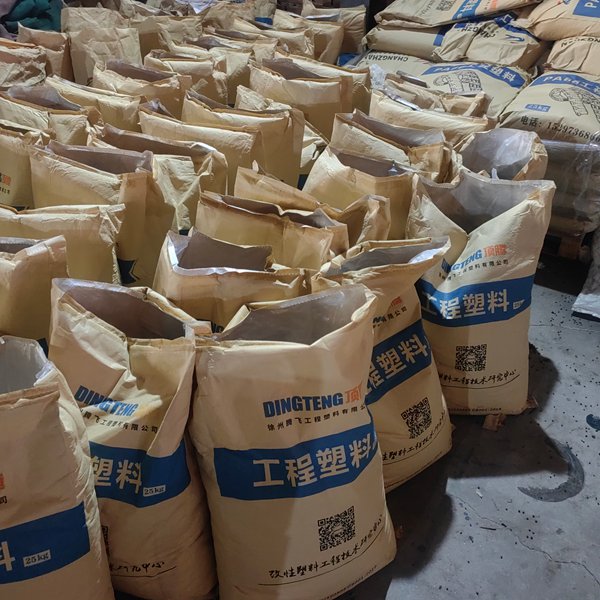

Capable of accommodating thicker power cables and multiple conduits. Constructed from high-strength PA66, the chain links feature a 30% increase in thickness, enabling them to withstand substantial tensile loads.

Looking for a reliable yet cost-effective wire management solution for your CNC setup? Our Economy CNC Drag Chain 55x100 is engineered to meet standard workshop requirements while offering exceptional value. Built within the 55-series standard, it features a 55mm inner height and 100mm inner width to comfortably accommodate your wiring bundles.

Unlike heavy-duty or reinforced industrial variants built for extreme high-load conditions, this economy version is optimized for standard-duty CNC routers, milling machines, and automation upgrades where cost-efficiency and reliable daily performance are key.

Applications

CNC Floor-Type Boring and Milling Machines: Routing of main spindle power cables, multi-axis encoder lines, and hydraulic lines.

Large-Scale Injection Molding Machines: Centralized routing for operations such as ejection, core pulling, and mold opening/closing.

Automated Chamfering and Polishing Production Lines: Long-travel moving stations requiring the centralized management of multiple cables and pneumatic lines.

Woodworking Edge Banding Machines: Accommodating glue pot heating cables, control lines, and dust extraction hoses; designed to withstand environments containing wood chips.

Mining Screening Equipment: Protecting control lines and sensor cables within high-vibration environments.

• Cost-Effective Economy Design: Specially designed as an economical, standard-duty solution for CNC machine wire management, delivering reliable performance without over-budgeting.

• Spacious 55x100mm Dimensions: Features a 55mm inner height and 100mm inner width, providing a generous and secure fit for routing multiple electrical cables and pneumatic hoses.

• Durable Standard Plastic: Molded from quality engineering plastic, offering good wear resistance, flexibility, and reliable longevity for regular workshop machinery.

• Tangle & Wear Protection: Effectively isolates and protects internal wiring from mechanical friction, snagging, and standard bending stress during operation.

• Wide CNC Applications: Ideal for standard CNC routers, milling machines, laser cutters, and general automated assembly lines.

Model Table

Structure Diagram

Characteristics and Applications of Drag Chains

1. The product can be used for such locations where reciprocating, of motions are required so that internally internally installed cables,oil pipes,gas tubes and water tubes can be dragged and protected.

2. The drag chains have already extensively used in digital-controlled machine tools,electronic equipment,machinery for stone industry,machinery for glass industry,machinery for doors and windows,moulding injectors,manipulators,lifting and transport equipment and automatic warehouses,etc.
