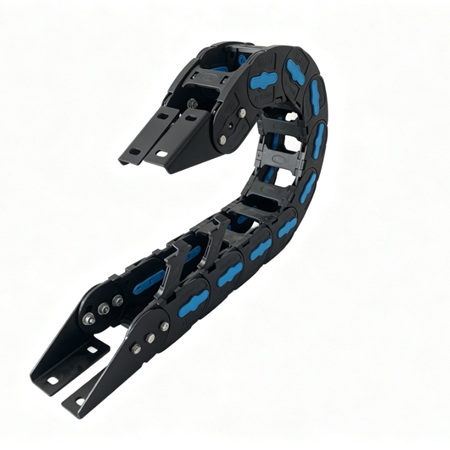

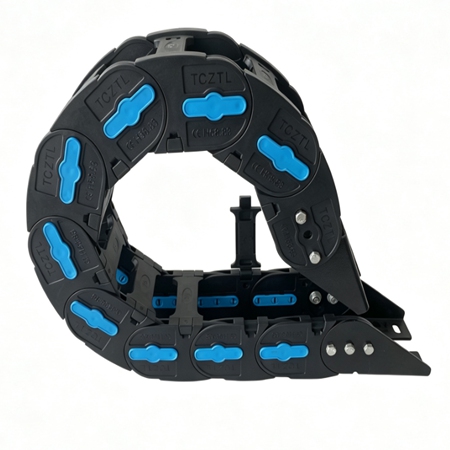

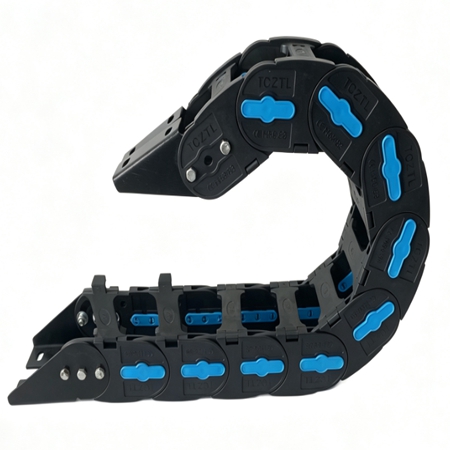

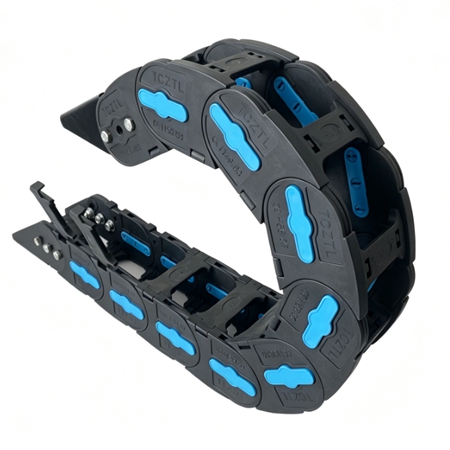

Y48 Bridge-Type Side-Opening Economical Cable Chain

The crossbar features a side-pivot opening mechanism: one end of the bar is fixed to a chain link, while the other end can be opened simply by lifting it upward from the side. This design ensures the crossbar remains attached—preventing it from detaching or getting lost—and allows for single-handed operation.

Manage bulky wiring bundles with ease using our Heavy-Duty Side-Open Series 48 Cable Chain Drag. This robust cable carrier merges high-load structural integrity with a convenient side-opening design, enabling you to unbuckle individual crossbars from one side without fully removing components. Built for demanding industrial environments, it delivers reliable protection against friction, wear, and heavy stress for your advanced CNC machinery.

• High-Load Structural Rigidity: Engineered with extra-thick reinforced links to securely handle heavy multi-cable and thick hose assemblies.

• Easy Side-Opening Mechanism: Bridge-type crossbars can be unbuckled from one side, making wire insertion and routine inspections exceptionally fast.

• Series 48 (48mm Inner Height): Offers a spacious interior profile tailored for complex industrial cabling layouts.

• Friction & Wear Reduction: Prevents internal wiring from catching, rubbing, or experiencing premature failure during heavy reciprocal motion.

• Wide Industrial Applications: Ideal for large CNC milling machines, industrial robots, and high-load automated systems.

• Type: Heavy-Duty Side-Open Series Cable Drag Chain

• Series: 48 Series (48mm Inner Height)

• Structure: Side-open / snap-open crossbars on each link

• Material: High-Strength Reinforced Engineering Plastic

• Color: Black

• Applications: Large CNC Milling Machines, Industrial Robots, Heavy Automation

Model Table

Structure Diagram

Application

5-Axis Machining Center: Located beneath the rotary table; the crossbar remains attached to prevent interference.

Heavy-Duty Gantry Machining Center Beam: For high-altitude operations; one end of the crossbar is fixed to ensure safety.

Large Injection Molding Machine Manipulator: Y/Z axes of a horizontal-traverse manipulator; the crossbar remains attached.

Inside an Automatic Chamfering Machine Guard: Fully enclosed protection; one end of the crossbar is fixed to facilitate convenient access.

Automated Warehouse Stacker Platform: For high-altitude maintenance; the side-opening design enhances safety.

Beneath an Automotive Welding Line Fixture Plate: For multi-station operations; the crossbar cannot be misplaced.

Large Heat Treatment Furnace Feeding Mechanism: Located in a high-temperature zone; the side-opening design prevents burns.
