Heavy-Duty Steel Drag Chain: The Ultimate Bridge-Type Cable Carrier Solution

When operating demanding industrial machinery, protecting critical power cables, hydraulic lines, and pneumatic hoses is paramount. At Yodel International Trade, we engineer high-performance steel drag chain solutions designed to withstand extreme workshop environments, heavy mechanical stress, and harsh operating conditions. As an essential component for modern manufacturing, our economic series steel bridge-type cable carriers (ranging from models TL45 to TL250) provide the structural integrity, durability, and reliable wire management required by global heavy industries.

Comprehensive Product Overview & Engineering Excellence

The bridge-type steel drag chain series is expertly crafted to handle long-travel applications, heavy payloads, and high-speed reciprocating motions where standard plastic cable tracks may fall short. Built from robust, high-grade metal materials, these bridge-type metal cable carriers prevent structural sagging over extensive spans while offering exceptional resistance to impact, mechanical wear, and high-temperature debris such as hot metal chips and welding sparks.

Unlike standard or reinforced heavy-duty models, our economic series steel drag chains offer an optimized balance of cost-efficiency and heavy load performance, making them the preferred choice for large-scale CNC machinery, steel mills, gantry cranes, and automated fabrication systems. The open-frame bridge-type design ensures optimal ventilation, preventing heat buildup within the cable bundles while allowing operators to perform rapid visual inspections of internal wiring at a glance.

Key Product Attributes & Technical Parameters

• Product Classification: Economic Series Bridge-Type Steel Drag Chain

• Model Range: Available in comprehensive sizing from TL45 up to TL250 to match diverse equipment layouts.

• Inner Height Span: Compact profiles starting from 11 mm up to massive 180 mm cavities for large-diameter cable and hose bundles.

• Internal Width Flexibility: Ranging from 20 mm up to an expansive 1200 mm to support multi-line industrial cable arrangements.

• Outer Width Tolerances: Precision-engineered tolerances from $\pm 15$ mm to $\pm 35$ mm ensuring exact machinery clearance and smooth track guidance.

• Material Composition: High-strength structural steel links designed for high load-bearing capacity and anti-sag performance.

Technical Specifications Table

To help you select the exact configuration for your machinery setup, reference the detailed specification parameters for our economic bridge-type steel drag chain series below:

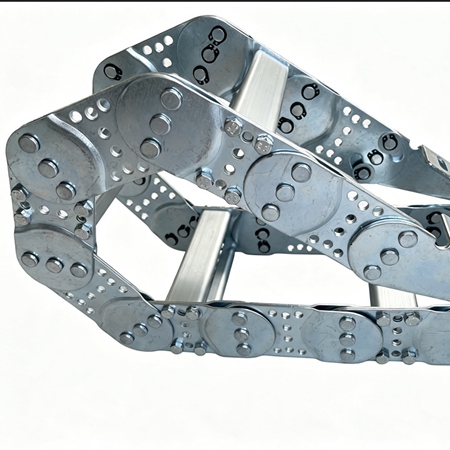

Steel Cable Carrier Display

Why Choose Yodel's Steel Drag Chain?

1. Superior Durability & Anti-Sag Performance: Engineered to support heavy cable loads over long distances without structural deformation or bending fatigue.

2. Effective Thermal Dissipation: The bridge-type open structure promotes continuous airflow around enclosed lines, preventing thermal degradation of sensitive electrical cables.

3. Customization & Versatility: Easily adaptable with internal partition separators and custom mounting end brackets to match your exact application requirements.

4. Global Industrial Trust: Trusted by equipment manufacturers and international industrial plants for reliable, low-maintenance cable management.

Application Fields

The bridge-type steel drag chain is widely utilized across heavy industrial sectors, including:

• Large-scale CNC milling and cutting machines

• Metallurgy and steel processing equipment

• Port machinery, gantry cranes, and lifting devices

• Automotive manufacturing transfer lines

• Heavy-duty automated production and robotic systems

Contact our engineering sales team today to discuss custom inner heights, specific bending radii, or tailored mounting options for your next project.

FAQ

• Q: What is the main material of this bridge-type steel drag chain? A: This steel drag chain is typically manufactured using high-quality carbon steel with galvanized surface treatment or stainless steel options, offering exceptional load-bearing capacity and durability for harsh industrial environments.

• Q: What application scenarios are suitable for TL series steel drag chains? A: They are widely used in heavy-duty CNC machinery, large automated production lines, metallurgical equipment, and long-travel industrial applications where heavy cables and hydraulic hoses need reliable protection.

• Q: Can the inner height and internal width be customized? A: Yes. We offer flexible customization options for inner heights and internal widths to meet specific project requirements.

• Q: Do you provide partition separators inside the steel drag chain? A: Yes, internal partition separators can be included to properly organize and separate multiple cables or hoses inside the chain, preventing friction and wear during movement.

Structure Diagram

Primary Applications: Small-scale CNC engraving machines, PCB drilling machines, and laser marking machines. Features a fine pitch for smoother operation and a small bending radius, making it suitable for high-speed, light-load applications.

Primary Application Equipment: CNC lathes, grinding machines, and small machining centers. Slightly larger than the "45" series, it accommodates a greater number of cables while still maintaining flexibility.

Primary Application Equipment: Vertical Machining Centers, CNC Milling Machines, Laser Cutting Machines—balancing flexibility with load-bearing capacity.

Primary Application Equipment: Injection molding robots, palletizers, and automated production lines. Features a reinforced structure suitable for 24-hour continuous operation.

Primary Application Equipment: Gantry milling machines, large-scale CNC machines, and woodworking engraving machines; features a wider internal clearance capable of accommodating multiple cables and/or air hoses.

Primary Application Equipment: Heavy-duty Gantry Machining Centers, Floor-type Boring and Milling Machines. Features: Reinforced link plates with strong impact resistance.

Primary Application Equipment: 5-axis Machining Centers, Large-scale CNC Grinders

Primary Application Equipment: Large-scale Laser Cutting Machines, Waterjet Cutting Machines, Plasma Cutting Machines

Primary Application Equipment: Steel Mill Feed Carts, Metallurgical Furnace-Front Manipulators

Primary Application Equipment: Port ship unloaders, stacker-reclaimers, large cranes

Primary Application Equipment: Mining Excavators, Mobile Crushing Stations, Tunnel Boring Machines

Primary Application Equipment: Ship-to-Shore Container Cranes (STS), Grab Ship Unloaders

Primary Application Equipment: Shipyard Gantry Cranes, Large Floating Cranes, Heavy-Duty Material Handling Systems
