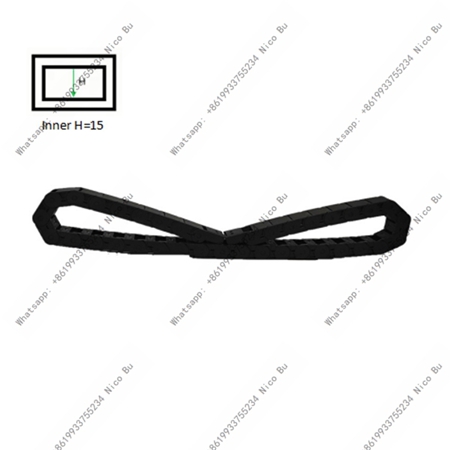

15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes)
15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes) 15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes) 15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes) 15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes) 15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes)

15mm Inner Height Drag Chain, Openable Plastic Cable Carrier for CNC Routers & 3D Printers (Includes 15x50mm & Multiple Sizes)

Product ID : Y15
Product Attributes :

Specifications: 15*15,15*20,15*30,15*40,15*50

Material: PA66

Color: Black (Custom colors available upon request)

Structure: Bridge-type

Product Description

This model represents a specification within the miniature cable carrier series that offers superior load-bearing capacity. Constructed from glass-fiber-reinforced PA66, it boasts a tensile strength 30% higher than that of standard nylon, enabling it to accommodate a greater number of cables or cables of slightly larger diameter. Featuring a bridge-type design, each link can be opened individually, facilitating the convenient addition or replacement of cables at a later stage.

Versatile 15 Series Standard: Engineered with a consistent 15mm inner height, offering flexible width choices to suit various wire harnessing needs.

Featured 15x50mm & Multi-Size Options: Available in popular configurations—including our high-demand drag chain 15mm x 50mm—alongside other width variants to perfectly fit your setup.

Convenient Openable Crossbars (Side-Open Design): Features bridge-type crossbars where each individual bar can be unbuckled and opened from one side independently, allowing for effortless cable insertion and maintenance without disassembling the entire chain.

  • Precise 15x50mm Dimensions: Designed with a 15mm inner height and 50mm inner width, perfectly sized to bundle and route multiple electrical cables and pneumatic hoses simultaneously.

  • Convenient Openable Design: Features an openable structure (bridged type that can be opened on both sides), allowing for effortless cable insertion and maintenance without completely re-threading your setup.

  • Heavy-Duty Reinforced Plastic: Molded from premium engineering nylon, offering high mechanical strength, excellent wear resistance, flame retardancy, and low-noise operation under high speeds.

  • Tangle & Wear Prevention: Effectively protects internal wiring from mechanical friction, snagging, and excessive bending stress during continuous reciprocal motion.

  • Wide Industrial Applications: Perfect for CNC routers, milling machines, laser cutters, 3D printers, automated assembly lines, and robotic cable tracks.

Streamline your machine wiring with our professional Drag Chain 15mm x 50mm. Engineered for reliability and ease of use, this 15-series cable carrier features an openable design that makes laying down cables or performing maintenance quick and hassle-free.

Built from high-grade reinforced plastic, it stands up to demanding industrial environments while ensuring smooth, flexible, and low-noise tracking. Whether you are upgrading a CNC machine, building an automated workshop setup, or managing heavy-duty wiring harnesses, this 15x50mm drag chain delivers maximum protection and longevity.

Model Table

15 drag chain

Structure Diagram

A sketch for connecting device

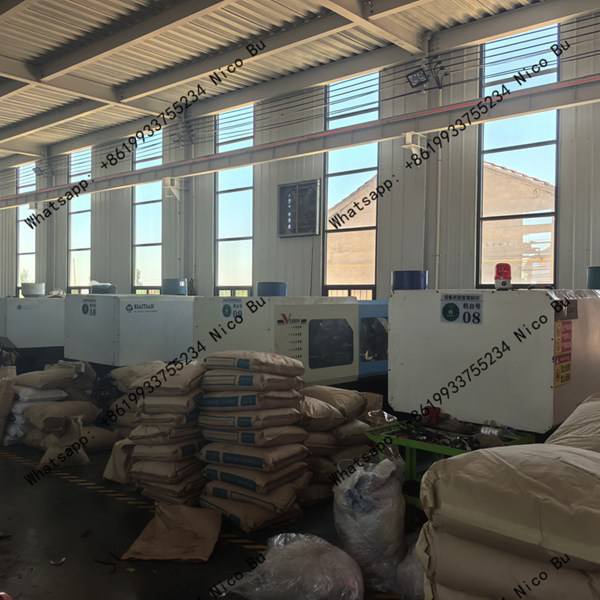

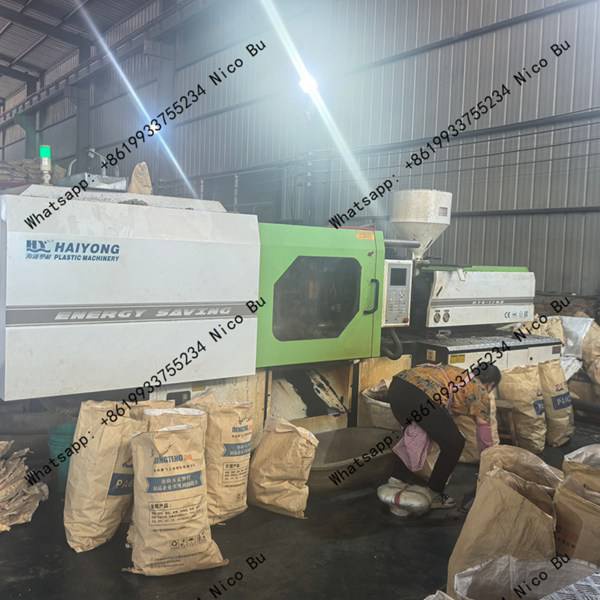

Injection molding machine

Quality inspection laboratory testing tensile strength and flexibility of drag chains

































Technicians assembling custom OEM steel and plastic drag chain systems

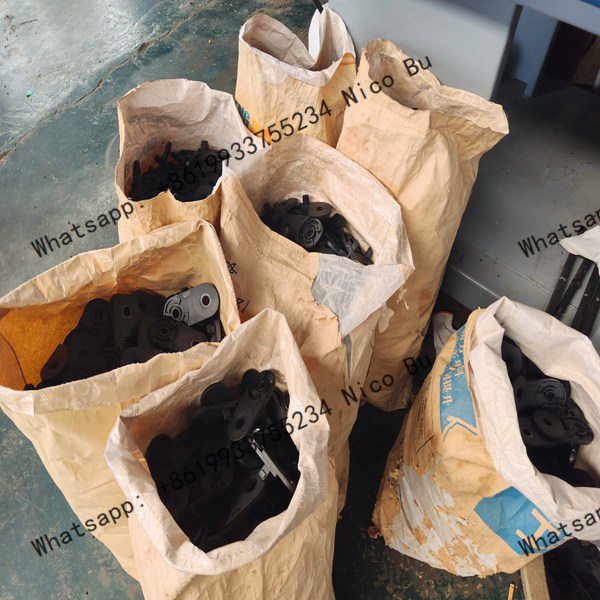

Drag chain components

15mm-inner-height-drag-chain-15x50mm-factory-warehouse-inventory-display

Application

 Automatic Dispensing Machine: Protects dispensing valve control cables and adhesive hoses, preventing damage caused by tension or pulling after the adhesive cures.

 Small Packaging & Labeling Machine: Routes label sensor cables and power cords, ensuring flexible movement of the labeling head.

 Laser Marking Machine (Enclosed Type): Routes laser control cables and cooling water lines within a compact internal space.

 Small-scale Custom Automation Equipment: Suitable for various light-load applications involving reciprocating motion
